02: Admin Tools Utility

Overview

The Admin Tools utility is used to configure and manage the CAMIO system.
Access to Admin Tools should be restricted to the trained CAMIO system administrators only.
It is advised that the default login be changed and/or replaced by specific administrator logins.

Accessing the Admin Tools utility

Chrome is the preferred browser for administering CAMIO.
To open the CAMIO Admin Tool Utility, do one of the following.

  1. From any system connected to the CAMIO Server network:
  2. Open an internet browser (preferably Chrome), and then enter: http://<CAMIO_SERVER>/CAMIO

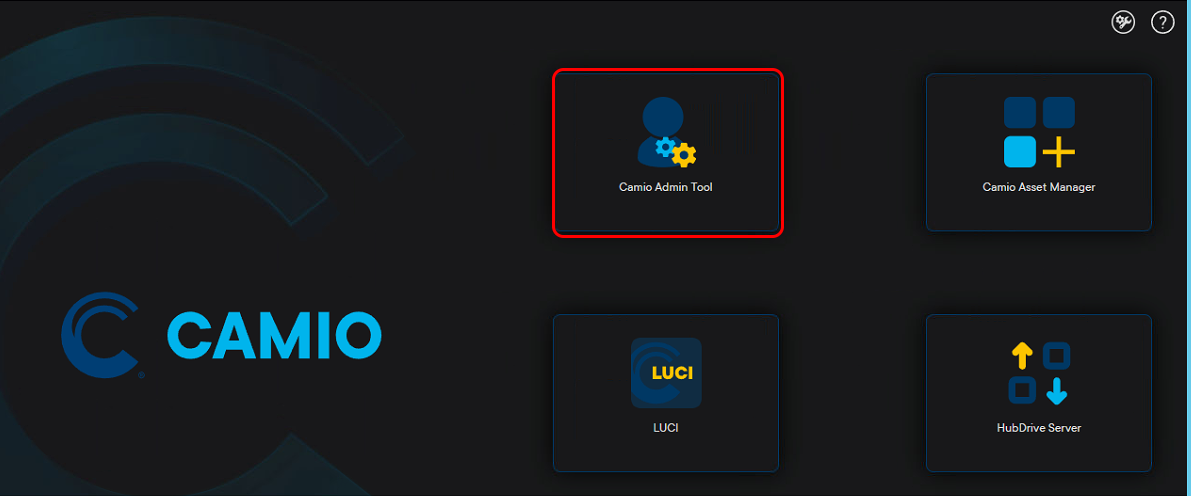

  3. The CAMIO Central home page displays.
  4. Click the CAMIO Admin Tool Utility button.


Or,

  1. Go directly to the Admin Tool Utility by entering: http://<CAMIO_SERVER>/CAMIO/Management

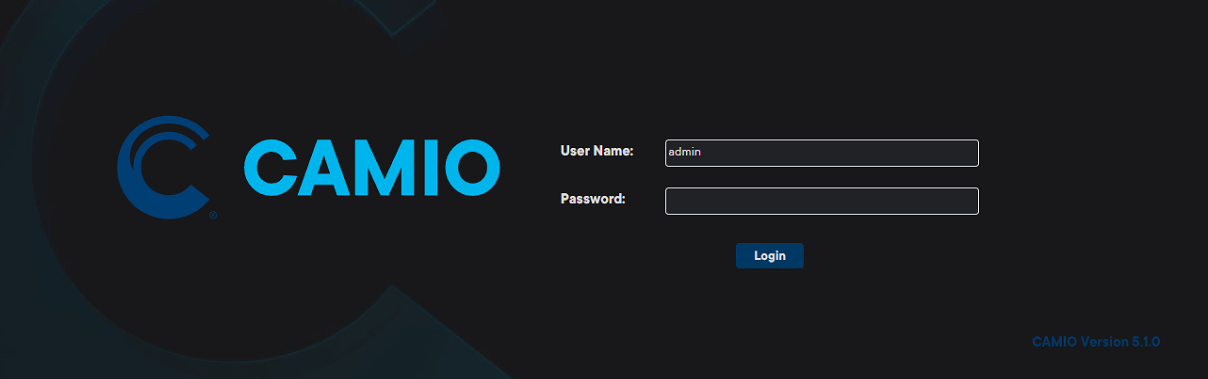

  2. The CAMIO Admin Tool login window is displayed. The CAMIO version number appears below the sign-on boxes in a dark blue color.

  3. Upon initial entry, a login prompt displays. Default login is:

    • ‎Username = admin, Password = admin

    • You can change the Username and Password after logging in to the system.

  4. Click the Sign In button to open the Admin Tools UI.

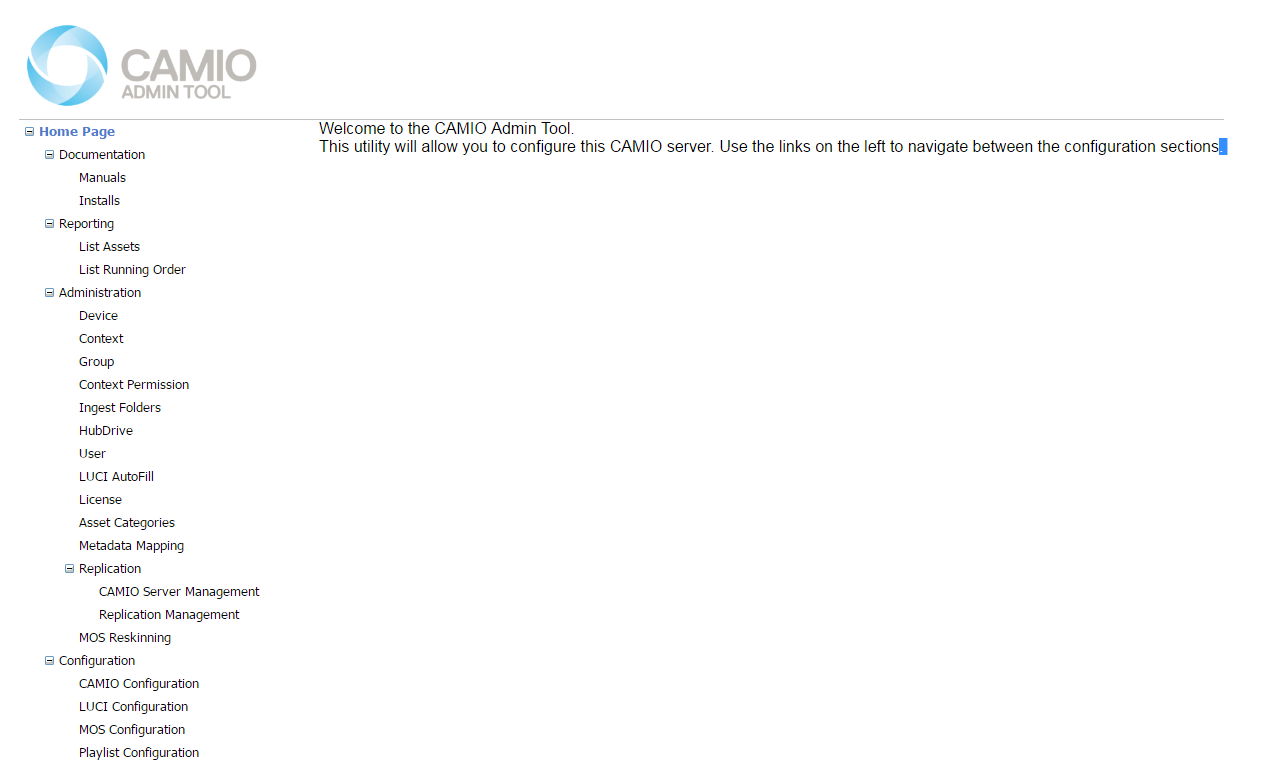

All CAMIO Admin functions are accessed from the menu items along the left side of the screen.


Admin Tools: Menu

The following comprise the CAMIO Admin tools:

  • Documentation
    • Manuals and Installers
  • Reporting
    • List Assets
    • List Running Order
  • Administration
    • Devices
    • Contexts
    • Groups
    • Context Permissions
    • Ingest Folders
    • HubDrive
    • Users
    • LUCI Autofill
    • License
    • Asset Categories
    • Metadata Mappings
    • Media Engine Formats
    • Media Engine Presets
    • Replication
      • CAMIO Server Management
      • Replication Management
    • PRIME Styles
    • MOS Reskinning
  • Configuration
    • CAMIO Configuration
    • LUCI Configuration
    • MOS Configuration
    • Playlist Configuration
    • HubDrive Configuration
    • Media Engine Configuration
    • LUCI User Defaults Configuration
    • Job Schedule Configuration
    • AXIS Interface Configuration
    • Automation Transition Configuration

Documentation

The Documentation section displays manuals and installers relevant to either the operation or installation of CAMIO. These are updated periodically with new CAMIO releases.

Manuals and Installers

The CAMIO5 Installers and Manuals links to an external website that provides the most up-to-date Release Notes, Installers and Manuals. External web access is required. If CAMIO does not have internet access, then you can copy to another device that has external web access to download and read the documents.

Reporting

The Reporting section displays status information about the CAMIO server, including a display of available assets, and active Running Orders currently on CAMIO.

List assets

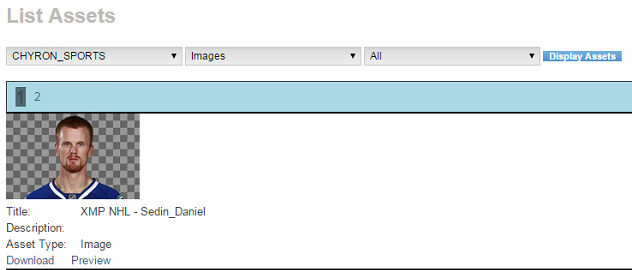

Selecting List Assets exposes the options shown below.image95.png

  • The drop-down menu at the left specifies which context is to be returned.
  • The drop-down menu in the middle specifies the type of asset type to be returned (images, videos, etc.).
  • The drop-down menu at the right specifies the type of asset is to be returned (assets, deficient assets or fulfilled assets).

Once the parameters are set, you can select any of the following:

  • Display Assets shows all assets that follow the parameters set by the drop-down boxes. Each asset displays a thumbnail of the asset, and the asset’s Title, Description, and Asset Type.
  • Download downloads a copy of the asset to the local system.
  • Preview previews the asset on a new tab.

This user interface is meant for quick checks only. The Asset Manager UI is a better tool for browsing and editing assets.

List running order

This view shows all active Running Orders being sent to CAMIO by the Newsroom Computer System via MOS Protocol. If there are no currently active Running Orders, then the view displays the following:


If there are one or more active Running Orders being sent to CAMIO, then you can select a Running Order from the drop-down box.

The label Active applies only to ENPS, for which a Running Order can be published to CAMIO, but is not active.

A rundown that is not active is not sent to the CAMIO Rundown Endpoint and Viewer (formerly iSQ) for playout.

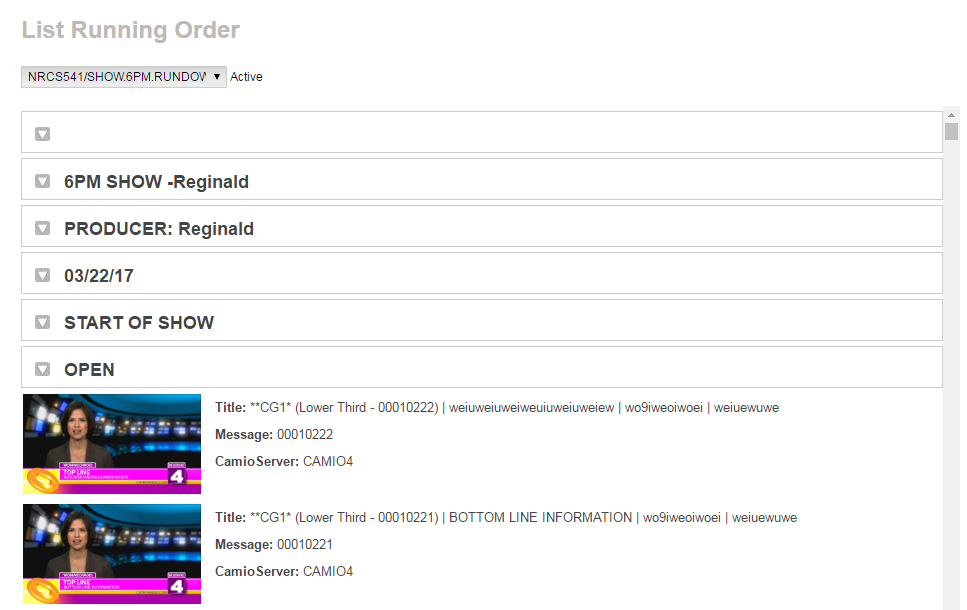

The Running Order shows the rundown broken down into stories, and each story shows the MOS Object’s thumbnail and some metadata.
