01: Introduction

Overview

Paint 9 is the sports analysis tool. Paint allows you to record live video, import files, stream live video, and add graphics to all, with an easy to use UI and toolset.
Paint 9 comes with a comprehensive set of tools for visualizing different facets of your chosen sport, or for highlighting individual player performance. The tools range from simple tied to field freehand lines, to fully 3D arrows and an interactive formation tool for tactical presentation. The look and feel of all inserted objects can be totally customized using standard image editing software to make the built-in tool set capable of fitting your brand or production look-and-feel.
Paint's built-in disc recorder allows for easy ingest of footage, in up to 3 channels of HD and 1 channel of UHD. The disc recorder can be exchanged for, or complemented by, an EVS control interface. Let the EVS operator prepare the sequences for analysis and let the commentator control the play out. No more “roll the clip, please...”.

Key Features of Paint 9

• Automatic Player Tracking (Soccer, Football)
• Automatic Pitch Calibration (Soccer, Football)
• Presentation Window
• Bulk Clips Import
• Multi-Angle Telestration
• Speed and Distance Visualization
• Pitch Zone Tool
• Formation Tool Export

Getting Started

When you load Paint 9, the UI is laid out to help you get going quickly. From the quick action toolbar, to the tools, the timeline and playback, Paint 8 is designed to make your life easier.

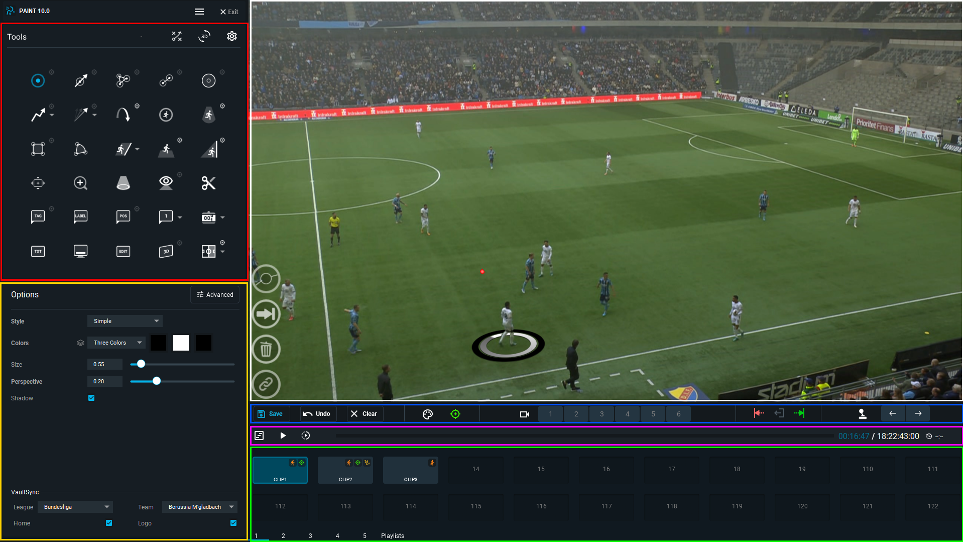

Color codes for the new UI (as shown in the image below)

• Pink: Quick Action Menu
• Yellow: Toolbars
• Red: Preview Window
• Orange: Control Bar
• Purple: Minimized Timeline
• Green: Banks/Timeline Area

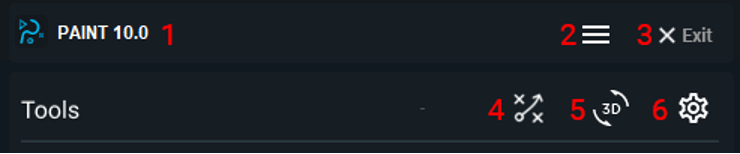

Quick Action menu

This menu allows you to trigger some of the main functions of Paint 9.0.

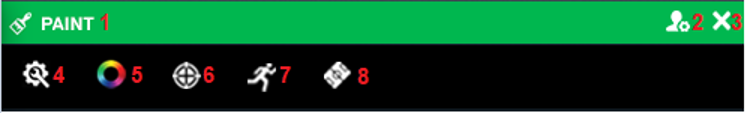

From left to right across the two rows in the picture above:

• RMB to move GUI.
• Open Admin menu
• Close application
• Open Tools Admin
• Open Chromakey
• Calibrate
• Use Automatic Player Tracking
• Open Formation tool

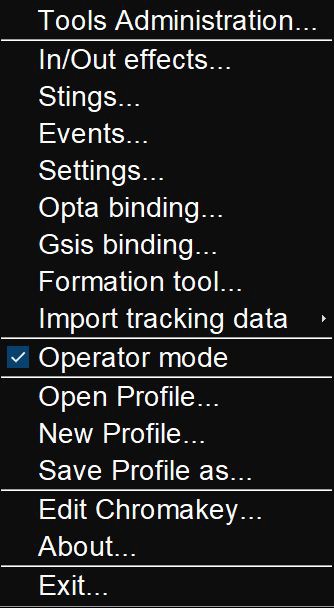

Admin menu

The Admin Menu allows you to access various functions of Paint from data bindings, in and out effects and more, which are detailed further down this guide.

The Admin menu can also be accessed by RMB pressing on the clear icon in the control bar.

Operator mode

Operator mode shows UI elements in preview, like keyframe animation trail, keyframe buttons, production end or graphic eraser.

Enabled by default. Can be disabled via button in tool administration dialog.
