10: Replay and Telestration

Overview

LIVE is constantly in a state of recording whenever there is video input to LIVE. Thus, you can set an in point and an out point to create and save a replay clip. You can also specify a speed of playback for your replay. A default transition can be set when switching to the Replay and Telestration Output via the Settings menu.

LIVE also offers you a set of tools for telestration. With these tools you can draw arrows to illustrate movement, highlight things in your video such as players on a field, and more. Illustrated replay is a powerful feature of LIVE that enhances your ability to offer your viewers a deeper understanding of what they are watching.

Access controls

1. Click the Telestration module, at the right side of the user interface.

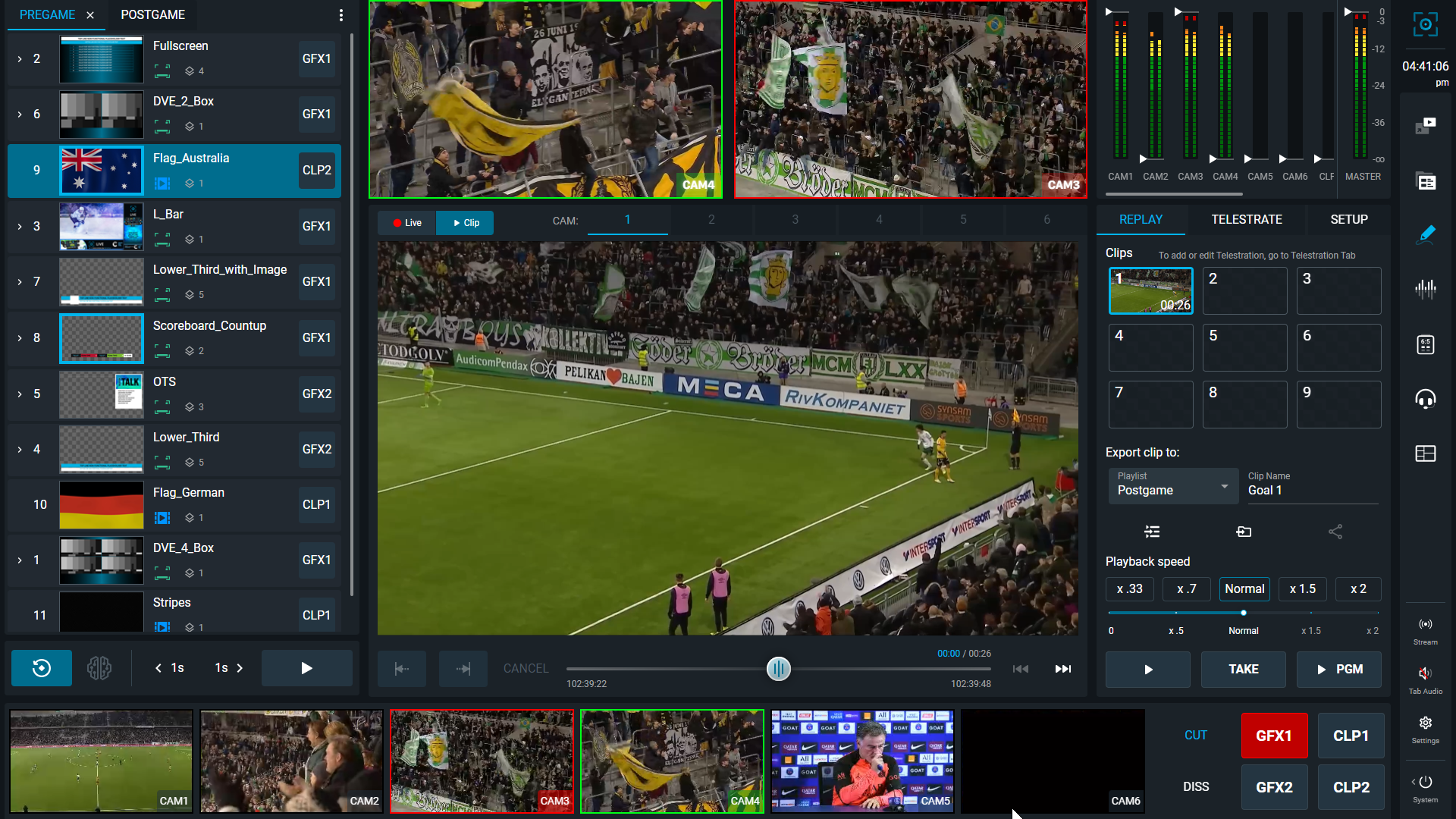

2. The interface now displays a Replay monitor in the center and tools for replay and telestration on the right.

Select video source

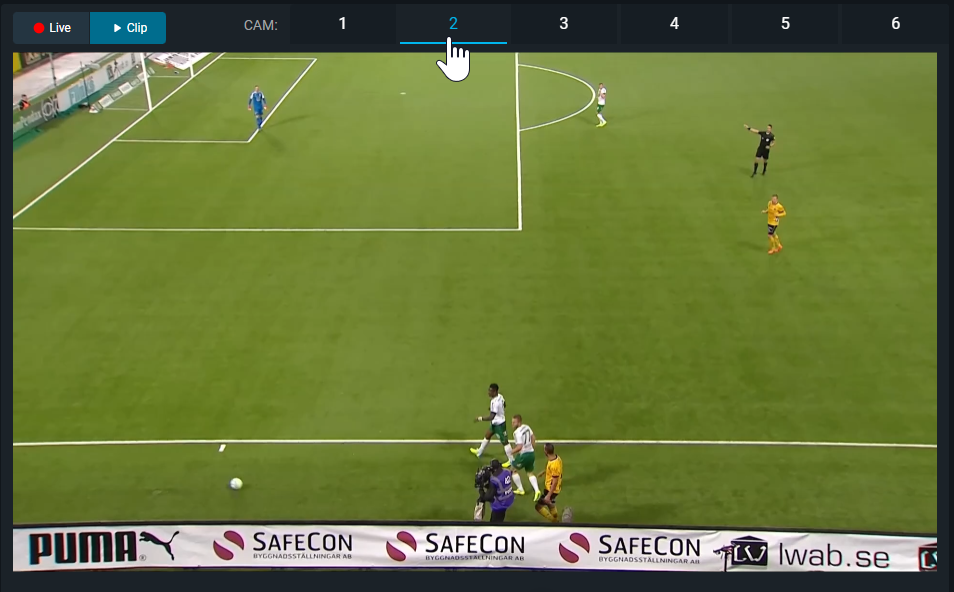

1. Click one of the camera buttons above the Replay monitor.
2. This video populates the replay monitor. Any source is available for replay and telestration, regardless of what sources are in the Preview and Program channels.

Select Replay mode

1. Video can be in live mode which displays the video in real time as it comes into LIVE
2. Or Clip mode which shows the video not in real time and any point in the past.

Switch between modes at any time to create clips and return to live mode

Add Chroma Key

Chroma key feature can be used to improve telestration tools by blending them with the background instead of overlapping the players. Enabling Chroma key across the pitch creates a refined and higher quality output.

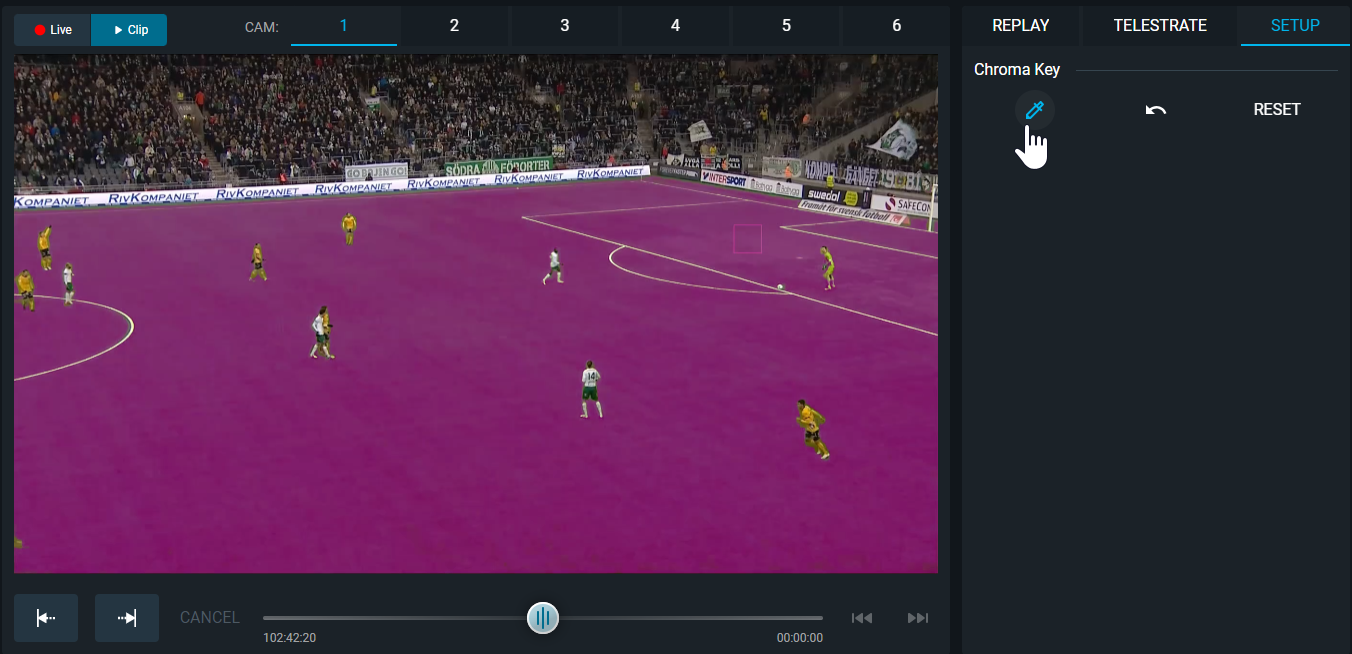

1. On the Setup tab, click the paint drop icon and apply it across the pitch on the screen.

Working with Replay

Create a replay clip

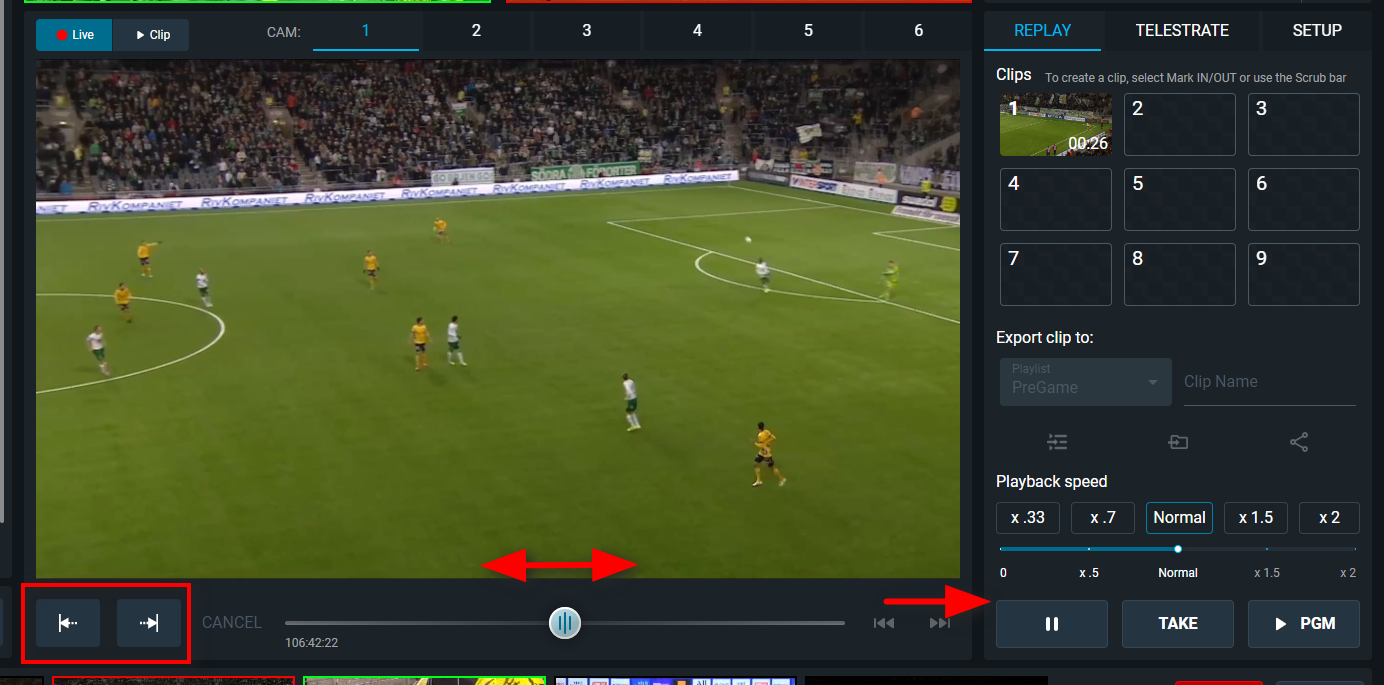

1. Select your camera source, above the Replay window.
2. Click the Replay tab in the pane to the right of the Replay monitor.

Do one of these to start creating a clip:

• Mark In or Out point while in Live mode
• Enter Clip mode by clicking the Play/Pause button or drag the scrub bar to where you want the in point or out point.
• Click the Mark In or Mark Out button.

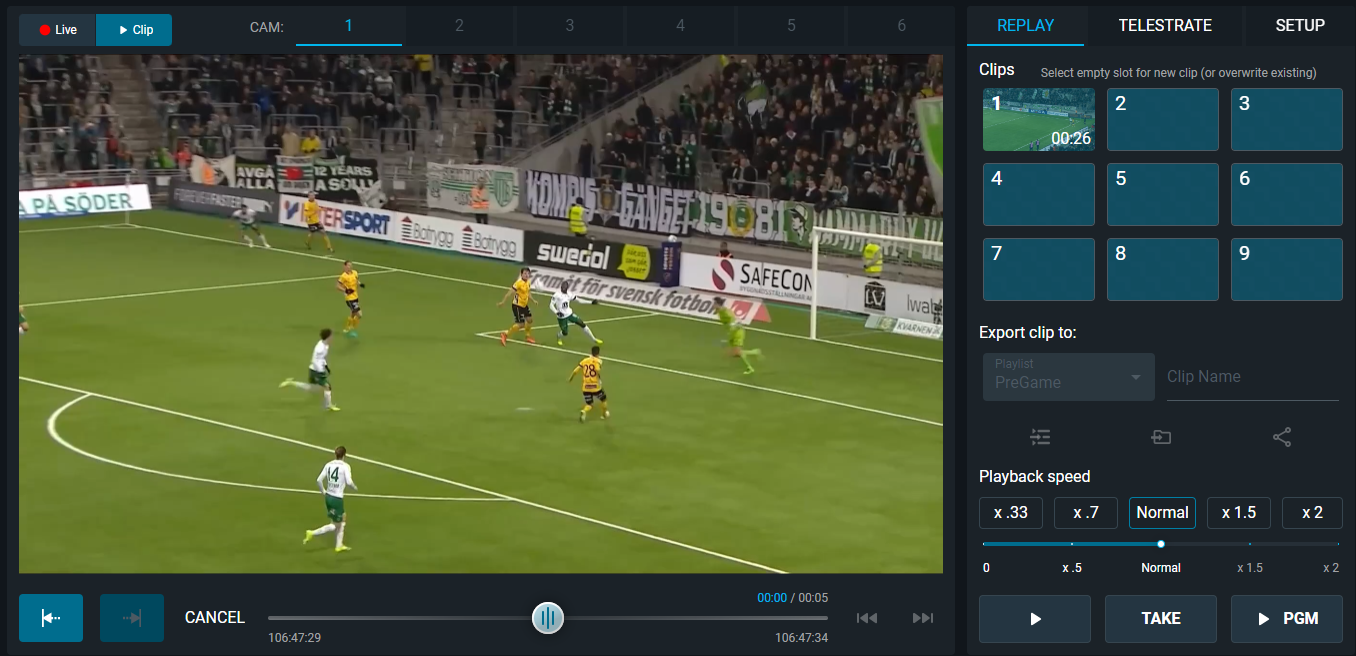

After an In point and Out point is created, the clip slots highlight.

• Select a clip slot to store your clip

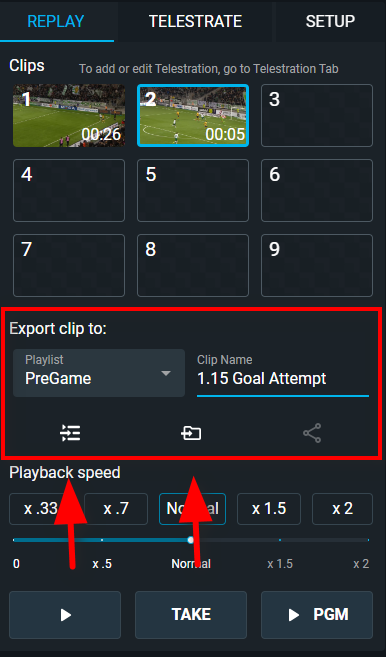

Export Clip the clip, do one of these:

• Name the clip (optional)
• Click the Folder button. The newly created clip is now available in your Browser, on the Replay tab
• Click the Playlist button. The newly created clip is now available in your Browser, on the Replay tab and also in the playlist specified in the drop down list of open playlists.

Replay a clip in slow motion

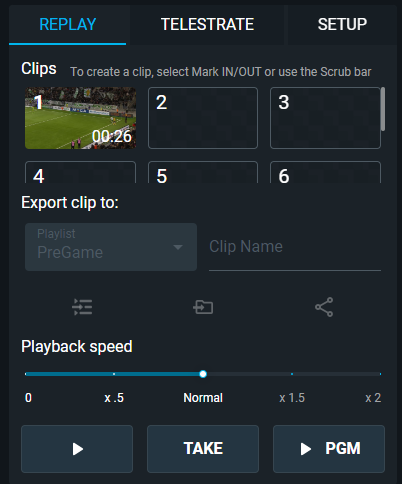

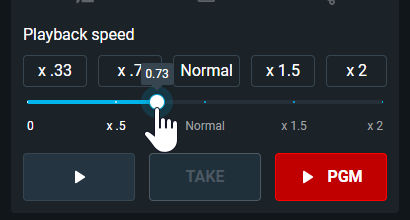

1. Adjust the Playback speed slider or hit a shortcut button. Playback speed can be adjusted in real time.
2. The playback speed is remains until changed and affects Instant Replay. So you may want to reset it to the preferred value after adjusting

Take and Play buttons

1. Hit the Take button to take the Replay output to Preview and again to take it to Program Output. Both live sources and clip sources can be taken

2. Play clips using the Play button. Play toggles between Play and Pause.

3. Play PGM Button is a shortcut designed to take a the Replay output straight to Program output. Both live sources and clip sources can be taken and played straight to Program

Working with Telestration

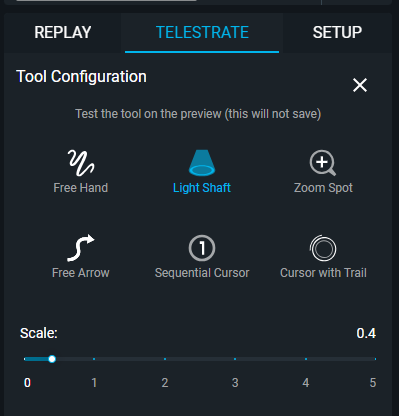

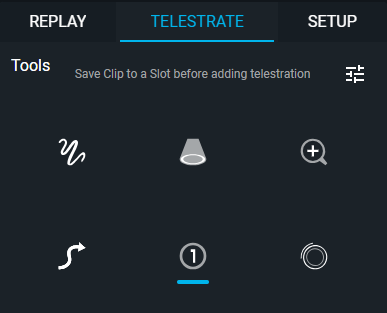

LIVE allows you to add illustrations to your live video or replay clip, including:

An Arrow tool that allows you to illustrate a trajectory or point to an object in the video

A Freehand tool that allows you to draw on the video.

A Number tool, that allows you to indicate a series of locations or events in the video.

A Spotlight tool that allows you to highlight a player or an object in the video.

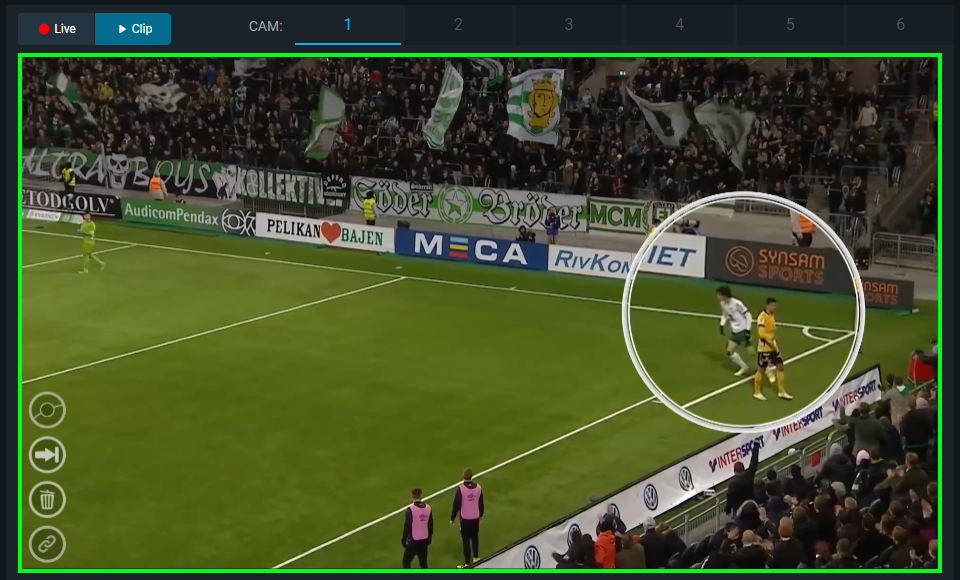

A Radial tool that allows you to call attention to any still or moving object in the video by placing a moving circle around it.

A Magnifier tool that allows you to encircle and magnify anything in your video.

Configuring tools

All tools support animations with the exception of the Arrow and Freehand tool. Once the animation is created, it can be saved on a clip and played together with the clip. Define the position and size of a tool drawing in several keyframes (time points), position and size between the keyframes is automatically interpolated.

See more about Keyframing below.

Add telestration to live video or clip

First, specify what you want to telestrate by doing one of the following.

• Telestrate your live, real-time video while it plays to air. Telestrating this way is for one time only in game explanations. Telestration that is not done and saved on an existing clip is lost when returning to live mode.
• To telestrate a recent replay clip, click the Clip slot and then use the slider to select the keyframe (point in time in the video) where you want to add the telestration feature.

Add telestration to the selected clip

1. Click to select the telestration tool that you want to use.
2. Click the place on the video, on the Replay monitor, where you want the telestration to appear.
3. Click to add a tool or hold the left mouse down to draw using the Arrow and Freehand tool. The Drawing tools cannot be keyframed but will track the camera movements in relation to the field.
4. The operator tools appear on the right side of the screen

5. Using the operator tools, telestration can be keyframed as desired.
6. Note that Operator mode shows tools in preview, i.e the keyframe animation trail, keyframes,
   keyframe in and out indicators, production end or graphic eraser. These will not show on the output.
7. To exit operator preview mode, save the telestration to the clip and reselect the clip.
8. The clip can still be edited while it is in a clip slot, even after saving.

Save, Undo, and Clear All

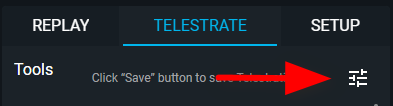

1. From the Telestration tab, use the buttons below the Repay Monitor to Save, Undo and Clear All telestration.

Operator Tools

Operator Tools allow you to create start and end points for animation and add/remove keyframes.

These tools are: Keyframes, Start and End, Delete and Paths (Paths is not currently implemented)

Create new animation

1. Select a clip
2. Select a tool to animate and place telestration tool into the replay output
3. Define the position of the telestration at several time points (drag tool to the desired position). Use the scrub bar to move in time and reposition the tool. Keyframes are automatically interpolated.
4. Save the animation to the clip

Edit existing animation

1. Select a clip with a stored animation
2. On the telestration tab select the tool to adjust
3. Adjust the animation and save it to the clip

Remove existing animation

1. Select a clip with a stored animation
2. Press the Clear All button
3. Press the Save button

Keyframe Controls

Keyframe

Hovered keyframe, Click it to move to the time of keyframe

Active Keyframe

Delete Keyframe

Enable Keyframe visualization

Disable Keyframe visualization

Start and End

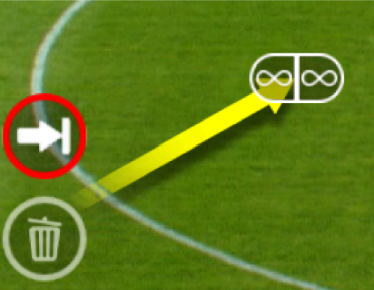

Non-animated telestration tools have an unlimited length. You can set tools to start and end to a specific time. Press the Production button in the lower left corner of the Replay monitor. The control isshown for graphics that belong to the currently selected tool.

Start and End controls

Start is at current time/end is at current time. Press the Button to set the
production to current time.

Start is at current time/end is at current time. Press the Button to set to current time.

Infinite time. Press to set production start/end to actual time.

Start time is in the past and end time is in the future (relatively to current time).

Start is in the future and end time is in the past (relatively to current time).

Start End time is disabled (e. g. you cannot set end while being before start).

Note: The Start and End Controls will be visible in operator mode (during editing and creation) to see the clip without the controls save, reselect the clip and play or scrub. Tools can still be edited when reselected. Playing or reselecting a clip without saving will cause changes to be lost.
