Release Notes – Chyron

5.5.1

Summary

New Features

Many small to medium size new features have been introduced in this release to improve the user’s efficiency when completing tasks in CAMIO. These appear in:

Admin tool
Asset Manager
LUCI
Media Engine

Improvements

This release contains some substantial platform level improvements that improve stability and scalability, building foundations to deliver future features in a robust way. These platform improvements include:

Changing the messaging platform to Rabbit MQ
Upgrading .Net to .Net 8.0
Introducing gRPC as the internal CAMIO API protocol

Upgrade path

CAMIO 5.5.1 is backwardly compatible with all CAMIO 4 & 5 versions.

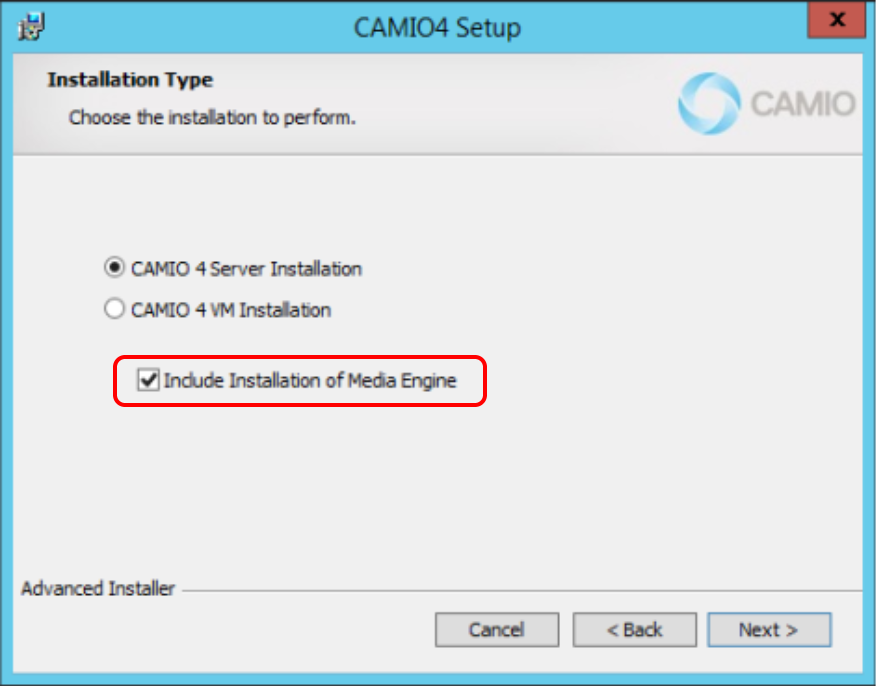

Installers

The CAMIO installers have been simplified to require fewer separate components to be installed. See below a before and after comparison:

Installers - Pre 5.5	Installers 5.5
CAMIO	CAMIO
DR
Endpoint
CAMIO Licensing
CAMIO Render
Data Engine
LUCI
Media Maker and Renderer
MOS XML Plugin
CAMIO NLE Plugin CAMIO NLE Plugin	CAMIO NLE Plugin
CAMIO relay agent for Axis CAMIO relay agent for Axis	CAMIO relay agent for Axis
LUCI Containers CAMIO NRCS Containers	CAMIO NRCS Containers
Hubdrive Client FileSync Client	FileSync Client
Hubdrive Server Filesync server	Filesync server
ISQ Service ISQ Service	ISQ Service
ISQ Viewer ISQ Viewer	ISQ Viewer

Bug Fixes

Numerous bug fixes have been addressed to improve stability and performance.

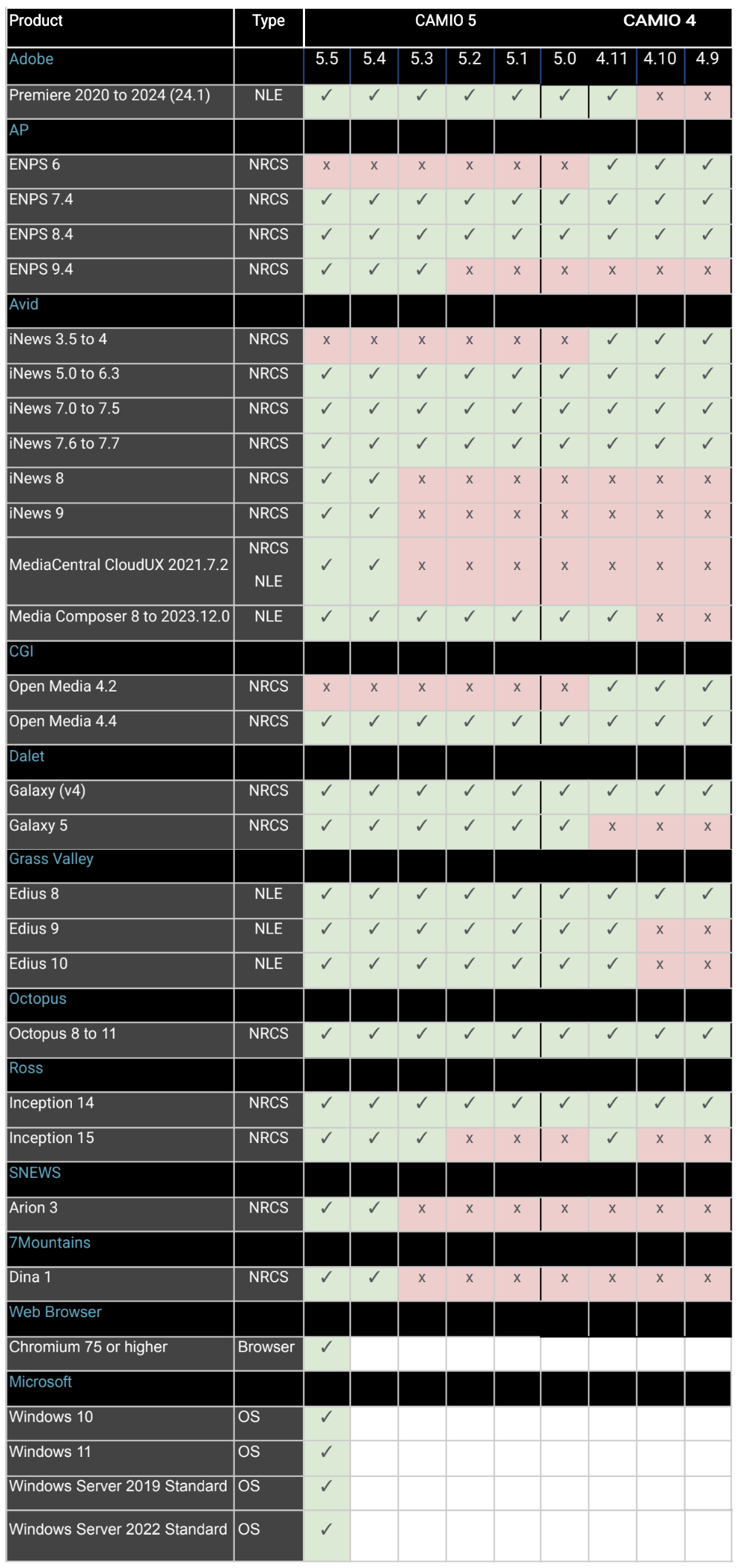

Software Compatibility

Prerequisites

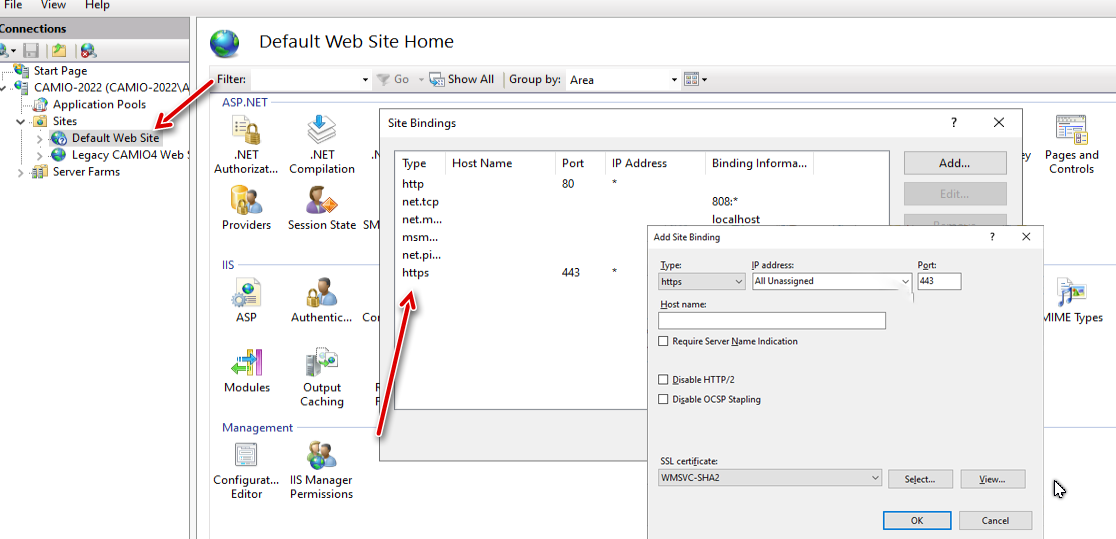

Enable HTTPS Binding in Windows IIS

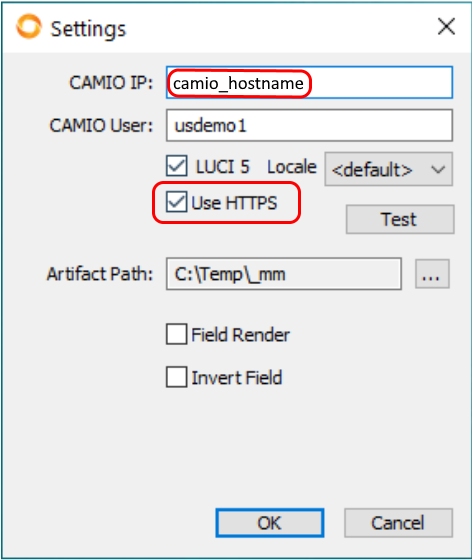

With CAMIO build 5.3 and onward several services are using HTTPS communications even if LUCI has been set to HTTP during the installation process. Therefore it is necessary to add the HTTPS Binding within IIS. To do so,

Open Windows IIS Manager on the CAMIO Server
Under Sites, right click on the Default Web Site and select “Edit Bindings...”
If no “https” binding exists, click on Add...
On the displayed window, select ‘https’ for the Type and ‘WMSVC-SHA2’ (or a valid
certificate) for the SSL Certificate, then click OK and Close

If this configuration is not properly set, CAMIO Asset Manager should display an empty panel:

New Features & Improvements

CAMIO: Admin Tool

CAM-7045 Sort Replications

In the Admin Tool> Replication Management page, CAMIO replications can now be sorted by the following columns by clicking on the column header:

Source CAMIO
Source CAMIO path
Destination CAMIO
Sync deletions

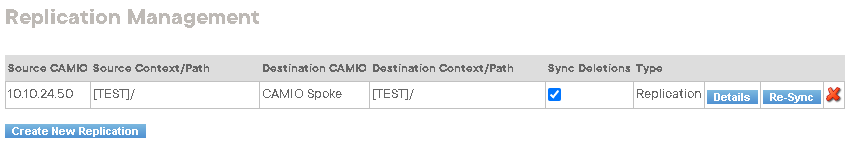

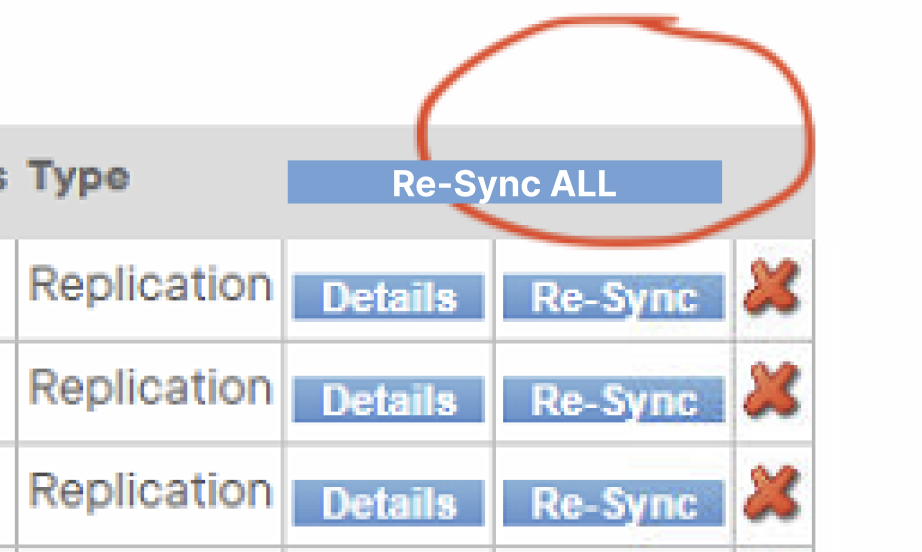

CAM-7046 Resync All Button for Replication Management

It is now possible to re-sync all replications via the Admin Tool \- Replication Management page. A Resync All button is now available which will resync all replications across all CAMIOs in the group.

CAM-7047 Resync All Button for LUCI Autofill

It is now possible to all LUCI Autofi lls via the Admin Tool \- Replication Management page. A Resync All button is now available which will resync all LUCI Autofi lls across all CAMIOs in the group.

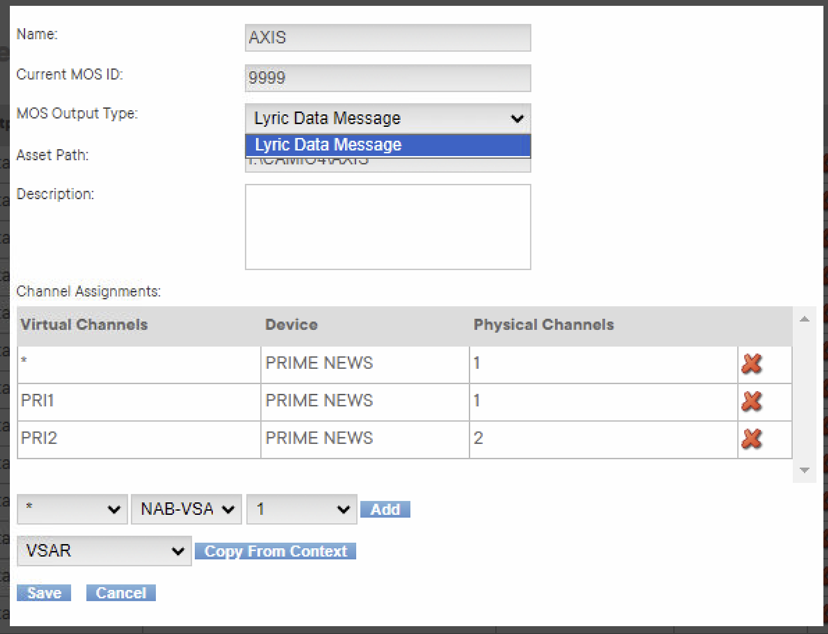

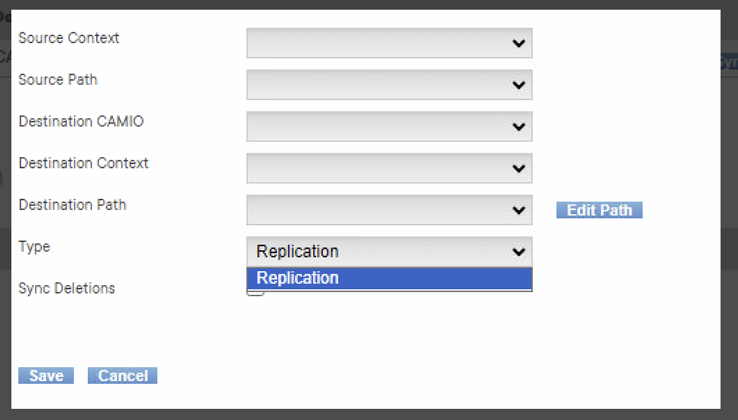

CAM-7048 Remove Dropdown Menus That Have Only One Option

Admin tool \- the following drop\-down that only had one value have been removed:

* Administration \-> Contexts \-> Create New Context \-> MOS Output Type

* Administration \-> Replication Management \-> Create New Replication \-> Replication Type

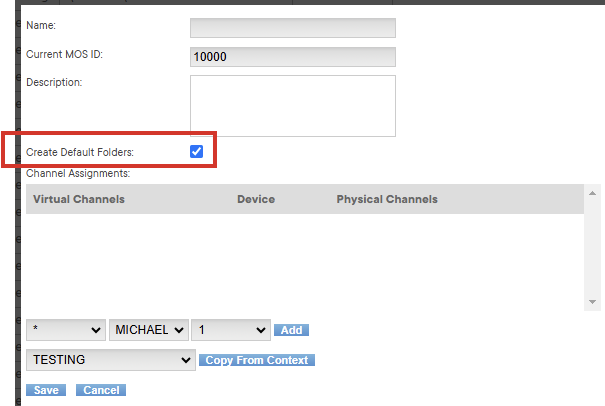

CAM-7050 Automatic Folder Structure Creation When Creating Contexts

In the CAMIO Admin Tool it is now possible to create a default folder structure of...

Clips
Images
Scenes

...when create a new context, by selecting the Create default folders checkbox.

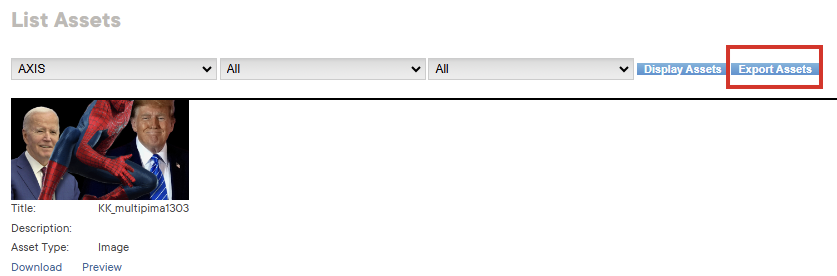

CAM-2825 CAMIO Asset List export

From the Admin Tool \- List Assets page, it is now possible to download the full list of assets in the Asset Manager. The downloaded file contains the following for each asset:

thumbnail
filename
title
description
asset type

Files are downloaded in htm format.

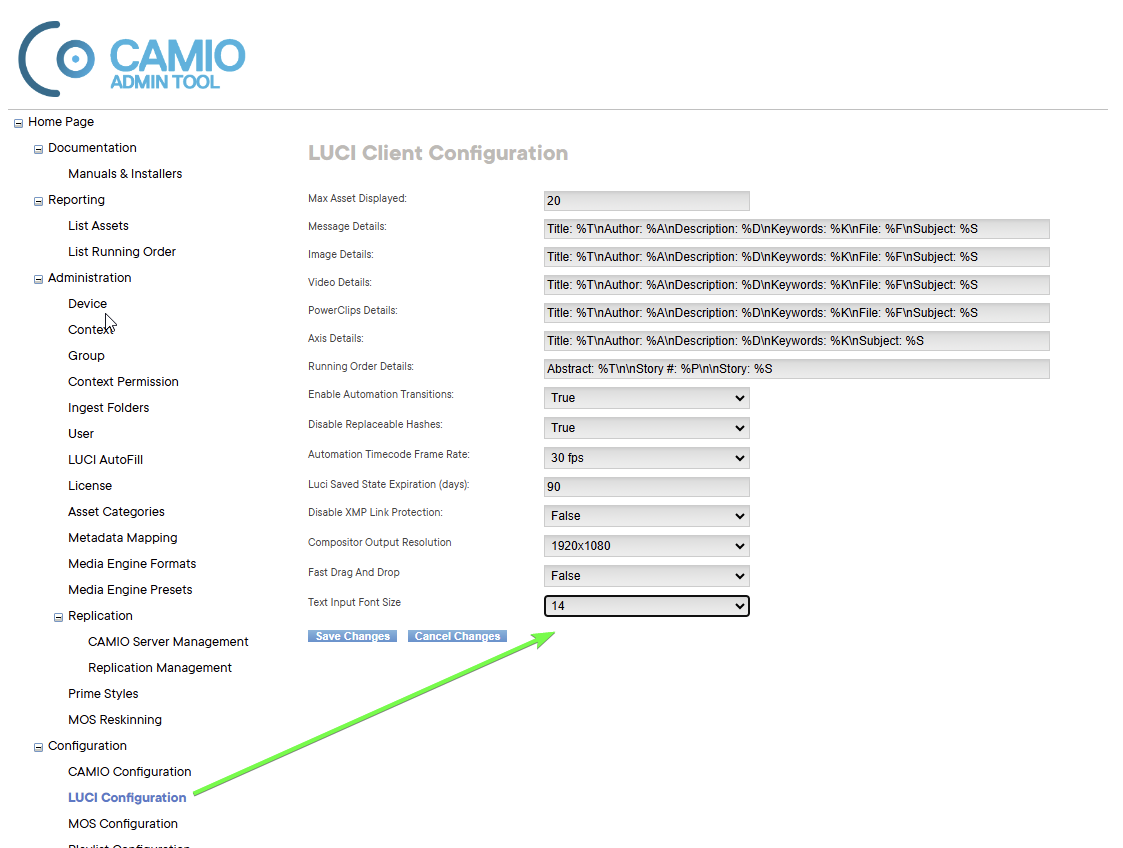

CAM-5803 Configurable Font Size for text inputs

The font size used in LUCI can now be changed via the Admin tool> Confi guration> LUCI Confi guration. The default is 14pt.

camio admin tool.png

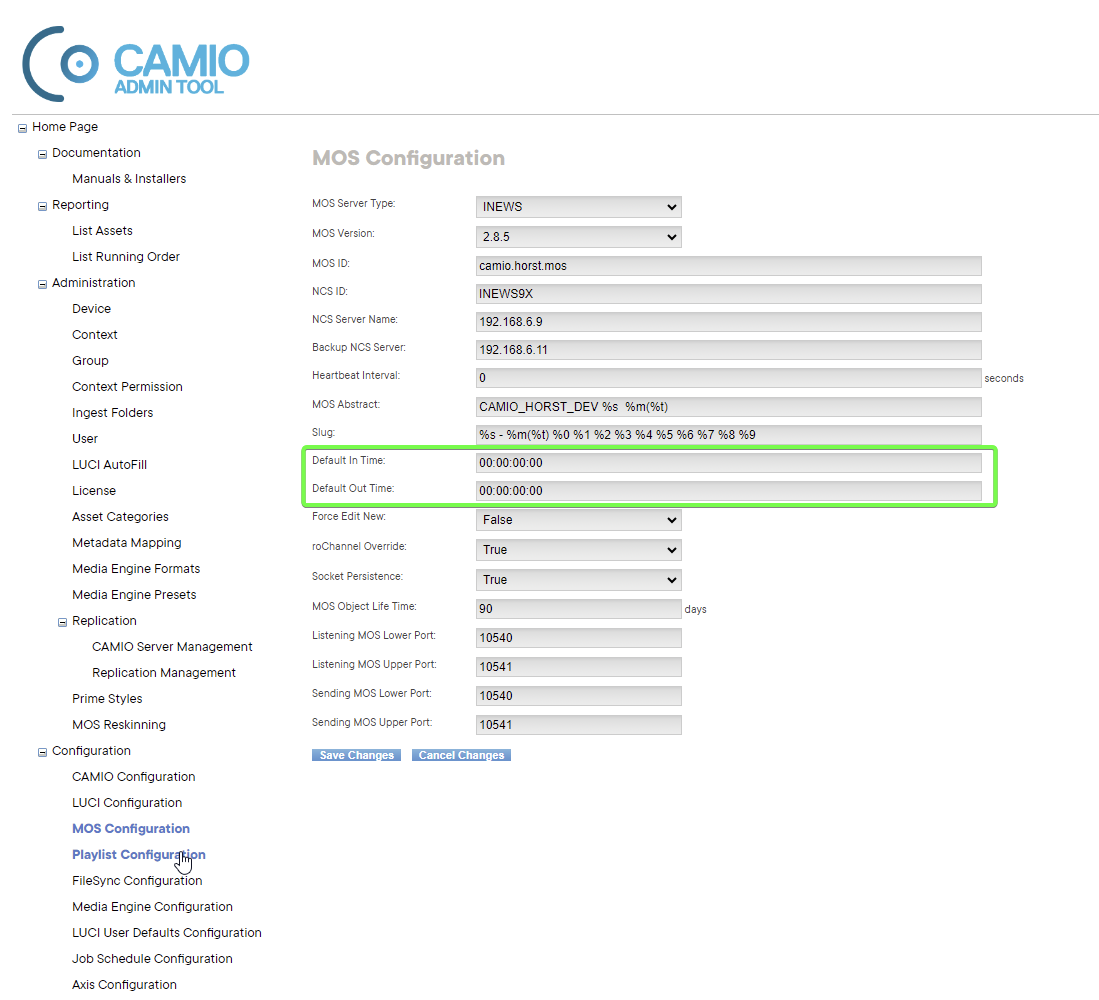

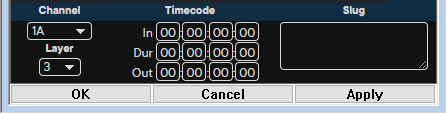

CAM-7575 Add an option to set default In and Out timecodes in Admin tool and LUCI

Customers face an issue where, due to the behavior of certain 3rd party playout automation software, they require the ability to have non-zero time codes in LUCI. Defaults for LUCI in and out time codes can now be set in the Admin tool> MOS Configuration.

CAMIO: Asset Manager

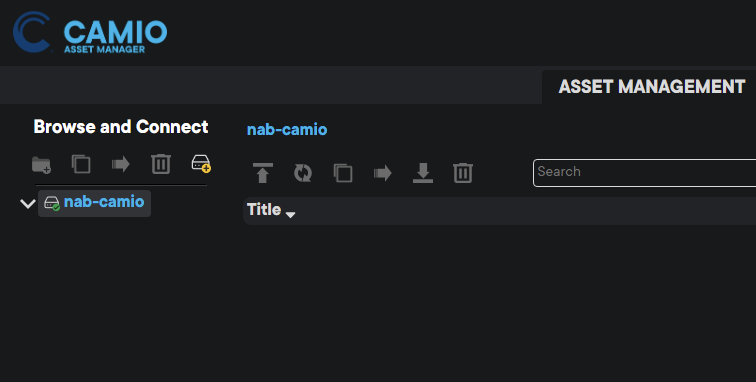

CAM-7084 Disk space indicator

Hovering over the i icon in the Asset Manager> Asset Manager left hand panel now shows a tooltip with used and available disk space.

5.4.1

Software Compatibility

Release Builds

CAMIO build 5.4.0.x
CAMIO Core (including LUCI and CAMIO FileSync Server)
CAMIO Render 5.4.0.x
CAMIO Licensing 5.4.0.x (required for VMs with dongle licensing)
CAMIO DR 5.4.0.x
ISQ 3.6.4+ (3.8 recommended)
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
CAMIO NLE Plugin 5.4.0
CAMIO HubDrive/FileSync Client 5.4.x
Prime 3.8.18+, 4.5.2+

Newsroom System Compatibility

Please contact your Chyron representative with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0
ENPS 9.4.80 to 9.5 - NRCS Container
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 (MCNM 2020.4) to 8.1 (MCNM 2022.3) - LUCI Container 5.0.3.0, 5.2 advised
iNews 9.x (MCNM 2023.x) - NRCS Container only
MediaCentral | Cloud UX 2022.3 to 2023.12 - TRACO Container
Dalet 3.5 - not compatible
Dalet Galaxy 4 to 5 - LUCI Container 5.0.1.4, 5.2 advised, requires Dalet support
Octopus 8 to 12 - NRCS Container, requires Octopus support
Inception 14 to 15 - NRCS Container in SSL/TLS Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 to 5.3 - NRCS Container, requires CGI support
Snews Arion 3 - NRCS Container
7Mountains DINA - NRCS Container in SSL/TLS Mode

Non-Linear Editor System Compatibility

Please contact your Chyron representative with any questions about NLE compatibility

Adobe Premiere Pro 24.1
Avid Media Composer 2023.12
Grass Valley Edius 11

Prerequisites

Enable HTTPS Binding in Windows IIS

Open Windows IIS Manager on the CAMIO Server
Under Sites, right click on the Default Web Site and select “Edit Bindings…”
If no “https” binding exists, click on Add…
On the displayed window, select ‘https’ for the Type and ‘WMSVC-SHA2’ (or a valid certificate) for the SSL Certificate, then click OK and Close

If this configuration is not properly set, CAMIO Asset Manager should display an empty panel:

New Features

CAM-6290 LUCI - Custom URL to disable Insert and Replace buttons

For the customers using both AVID MediaCentral UI with Traco and iNews UI, it is now possible to hide “Insert”, “Replace with New” and “Modify Current” buttons in LUCI in iNews UI, while still having them available in MediaCentral UI.
- - It is done via an implementation of a custom URL for LUCI:
    - - http(s)://<server>/luci to be set inside Traco
      - http(s)://<server>/luci?noinsertreplace=true to be set inside iNews HTML Plugin

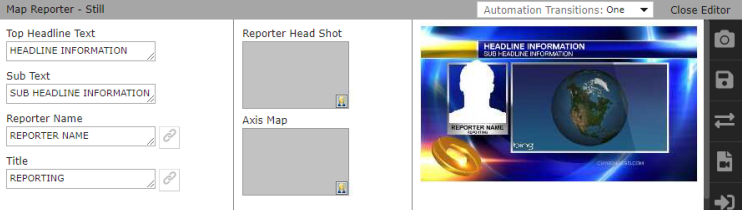

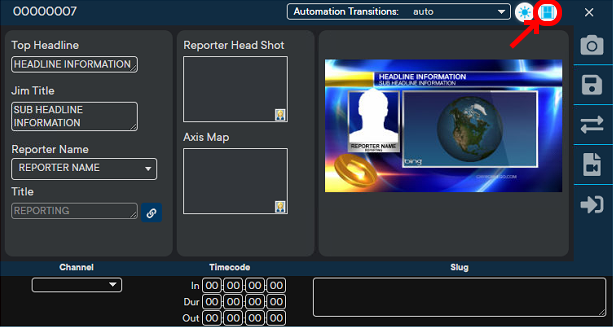

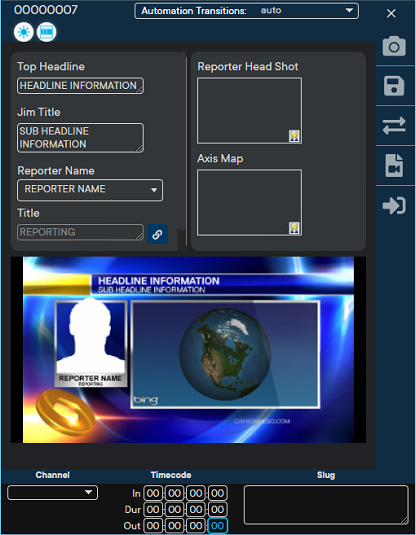

This is how LUCI panels will look like:

Creation

Edit

MediaCentral UI with Traco

iNews UI

Bug Fixes

CAM-6813 CAMIO 4 and 5 - update or remove copyright date
CAM-6783 Camio video proxy issue
CAM-6772 CAMIO Restarts Initiate Re-render of Entire MOS Cache
CAM-6760 CMG - CAMIO 5.4 Bug - Compose Tool Does Not Apply Selected Categories to Assembled Images
CAM-6744 CMG - CAMIO 5.4 Issue - Missing LUCI Autofill Data Causes LUCI to Pinwheel
CAM-6743 CMG - CAMIO 5.4.0 Bug - Asset Manager Search Returns Zero Results if Page is not 1
CAM-6736 LUCI Unresponsive with Spinning Wheel and MOS Service Will Not Stop and Restart
CAM-6687 RTVE - Edited MOS Object does not get its lastModifiedDateTime property updated
CAM-6434 CAMIO 5.4.0.165 - Cannot use ITEM from TRACK in LUCI - Does not generate preview
CAM-6380 Fix the Animated preview with clips
CAM-6378 LUCI - Animated Preview - incorrect job request when using a clip replaceable
CAM-6368 LUCI - Error when generating the Animated Preview of a Saved Item or Completed Graphic
for Lyric scenes
CAM-6339 CAMIO Remote Licensing - Services fail to communicate with the remote Licensing service
CAM-6328 LUCI - Error when generating the Animated Preview of a Saved Item or Completed Graphic
CAM-6309 Animated Preview with Clip replaceable give errors or preview without the clip
CAM-6305 Replication from Hub to Spoke is blocked with CRD with brackets in replaceables name
CAM-5600 Hub Drive client 1.3.1 crashing with JavaScript error
CAM-6390 NLE Plugin with Avid MC - Edit - update render duration if corresponding track duration is changed

Known Issues

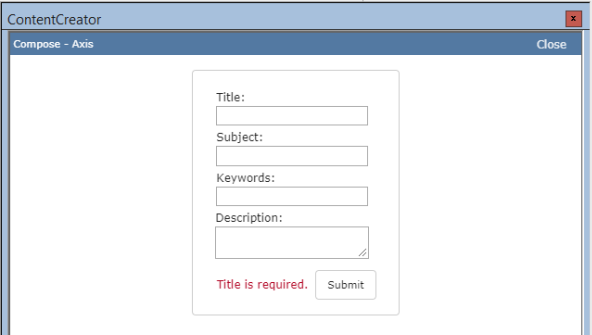

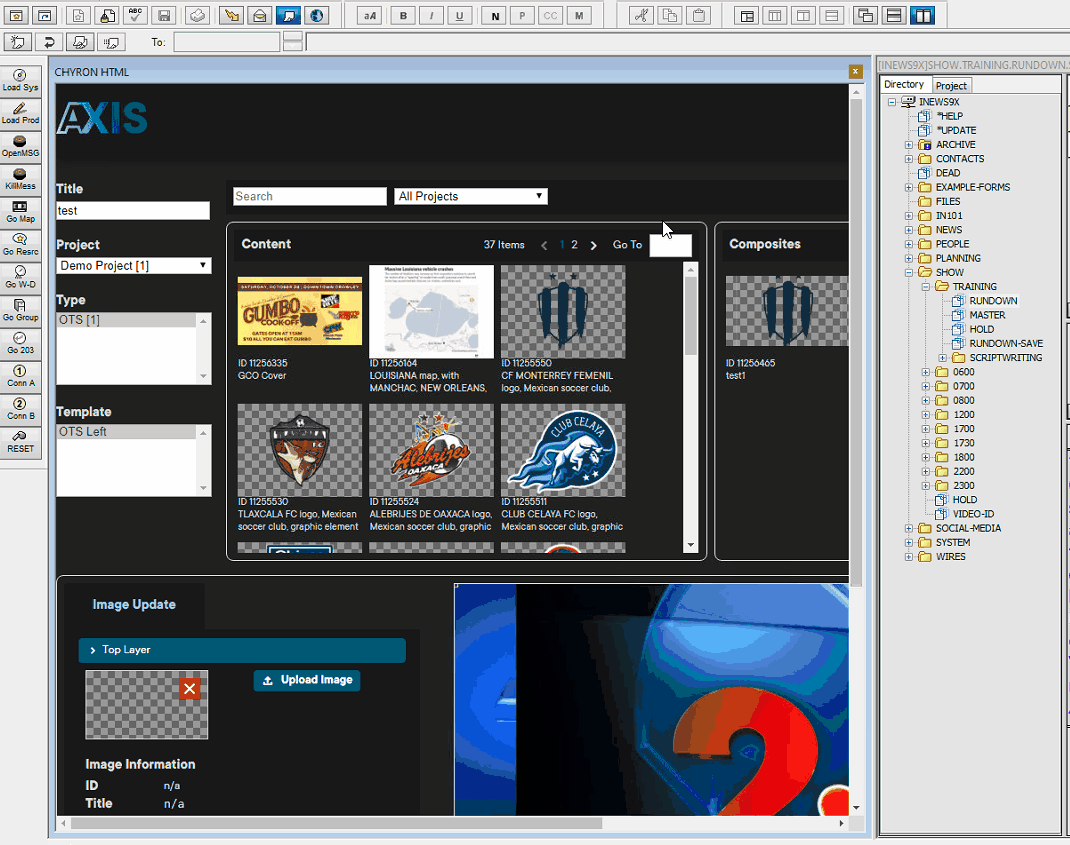

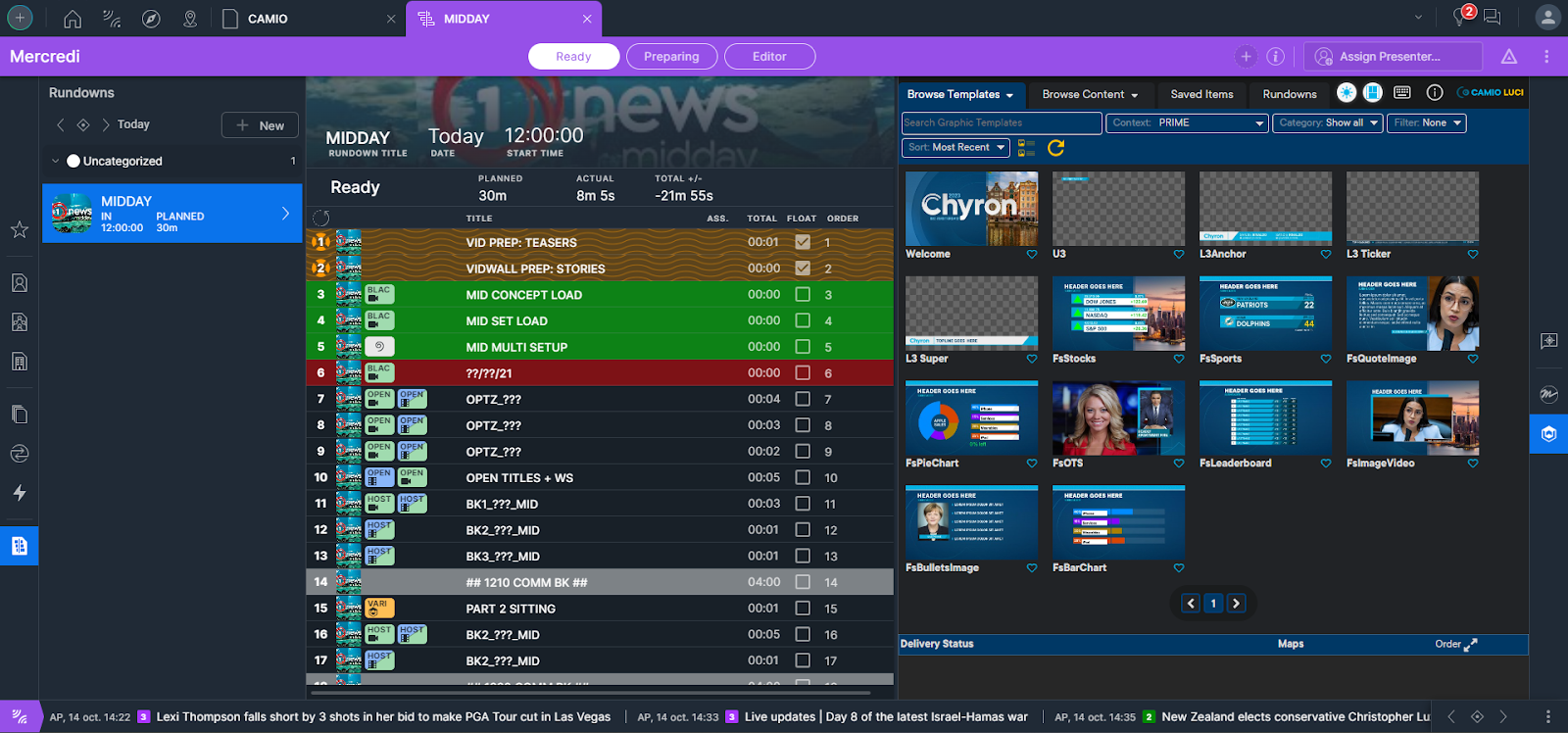

Support of Avid iNews 9.x - HTML5 Plugin - Axis is opened within the container and not in a separate window

Due to a restriction within iNews HTML container, Axis module does not open in a separate window

Image description: Axis opened within iNews container instead of a separate window

5.4.0

Software Compatibility

Release Builds

CAMIO build 5.4.0.x
CAMIO Core (including LUCI and CAMIO FileSync Server)
CAMIO Render 5.4.0.x
CAMIO Licensing 5.4.0.x (required for VMs with dongle licensing)
CAMIO DR 5.4.0.x
ISQ 3.6.4+ (3.8 recommended)
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
CAMIO NLE Plugin 5.4.0
CAMIO HubDrive/FileSync Client 5.4.x
Prime 3.8.18+, 4.5.2+

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0
ENPS 9.4.80 to 9.5 - NRCS Container
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 (MCNM 2020.4) to 8.1 (MCNM 2022.3) - LUCI Container 5.0.3.0, 5.2 advised
iNews 9.x (MCNM 2023.x) - NRCS Container only
MediaCentral | Cloud UX 2022.3 to 2023.12 - TRACO Container
Dalet 3.5 - not compatible
Dalet Galaxy 4 to 5 - LUCI Container 5.0.1.4, 5.2 advised, requires Dalet support
Octopus 8 to 12 - NRCS Container, requires Octopus support
Inception 14 to 15 - NRCS Container in SSL/TLS Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 to 5.3 - NRCS Container, requires CGI support
Snews Arion 3 - NRCS Container
7Mountains DINA - NRCS Container in SSL/TLS Mode

Non-Linear Editor System Compatibility

Please contact Product Management with any questions about NLE compatibility

Adobe Premiere Pro 24.1
Avid Media Composer 2023.12
Grass Valley Edius 11

Prerequisites

Enable HTTPS Binding in Windows IIS

Open Windows IIS Manager on the CAMIO Server
Under Sites, right click on the Default Web Site and select “Edit Bindings…”
If no “https” binding exists, click on Add…
On the displayed window, select ‘https’ for the Type and ‘WMSVC-SHA2’ (or a valid certificate) for the SSL Certificate, then click OK and Close

If this configuration is not properly set, CAMIO Asset Manager should display an empty panel:

New Features

CAM-1917 Asset Distribution Improvements: To speed up the preview generation process involving clip replaceables

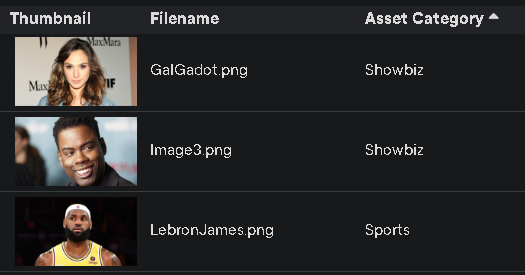

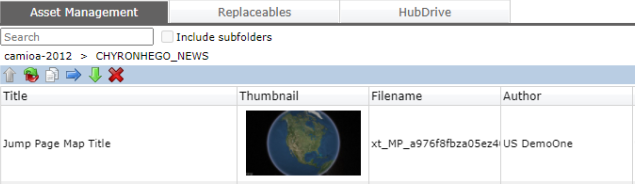

CAM-2366 Asset Manager - Capability to sort Assets by Category: It is now possible to sort Assets per Category:
CAM-2645 Add new Product Imagery: New CAMIO Dashboard UI, logos and icons
CAM-2653 Software Licensing Improvements: Improvement of the software licensing checks mechanism for the use of CAMIO in the Cloud
CAM-2735 Secure communications using TLS 1.2: Use of TLS 1.2 for securing HTTP and TCP communications

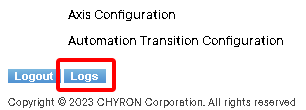

CAM-2780 CAMIO Logs Collector - get all logs in one place: A Logs Collector tool for CAMIO and Renderers is now available and be triggered from the CAMIO Admin page:
Image description: It will collect and zip the logs in a camioLogs.zip file under the Download folder.

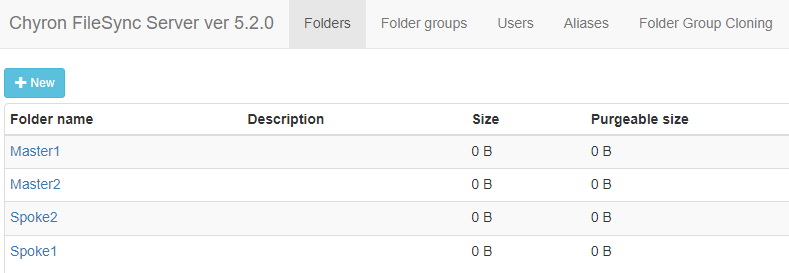

CAM-2832 FileSync (HubDrive) - Size Meter on Clients before transfer: File size count is now shown on FileSync Client prior to a transfer being initiated:
CAM-2826 Change selected field color in LUCI:
- - In light mode, keep the text with the default font color (black) when the text box is focused.
  - In dark mode, keep the text with the default font color (white) when the text box is focused
CAM-2851 Add ability to export assets from Admin List Assets page: From CAMIO Admin web page under ‘Reporting > List Assets’ an ‘Export Assets’ option is now available, in order to export the selected Assets List as a simple HTML page that can be then converted into another type of document like PDF:

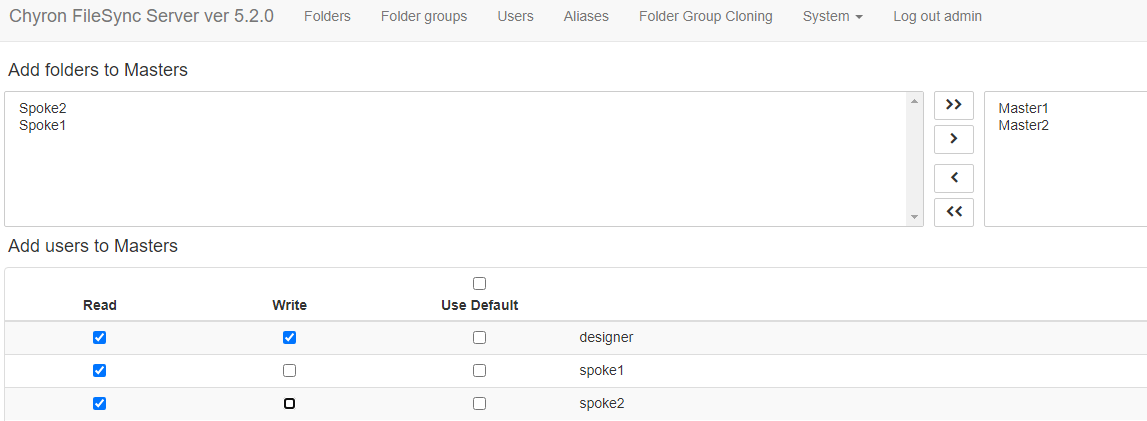

CAM-2887 CAMIO Replication to sync Asset Deletion from Hub to Spoke: CAMIO Replication service is now able to synchronize Asset deletion from Hub to Spoke along with creation or modification. It is an option that can be enabled/disabled on every Replication rule:

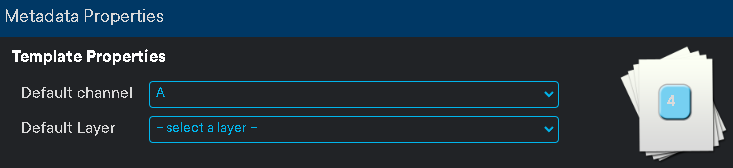

CAM-2923 Asset Manager Bulk Edit - Capability to change the Channel and Layer: In CAMIO Asset Manager it is now possible to change the Default Channel and Layer properties on multiple Assets at once:
CAM-2938 Ingest Folders - Improve the File Pattern filter: Improvement of the File Pattern setting in Ingest Folder rules in CAMIO Admin:
- - Splitting character '|' acting as a OR, e.g. “*.jpg|*.png”
  - ‘not()’ for exclusions, e.g. “not(*.jpg|*.png)“

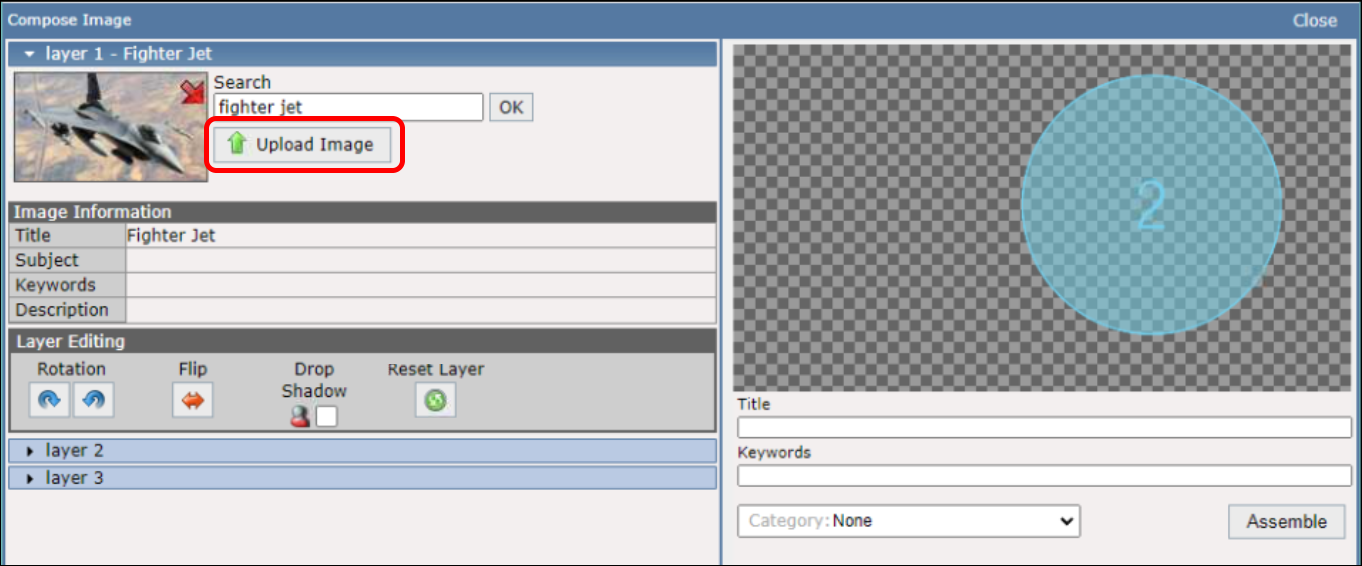

CAM-3457 LUCI Compose Tool - TIFF images supported for upload
CAM-5060 LUCI saved items folders should be rendered alphabetically. Re-ordering of the Saved Items folders in LUCI alphabetically:

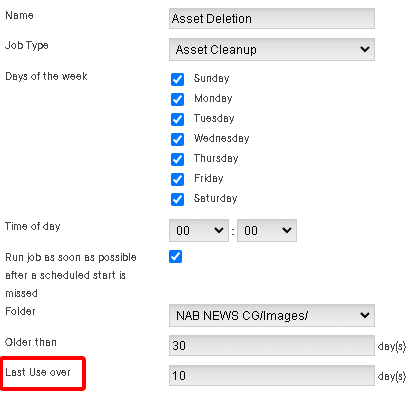

CAM-5067 Assets Purge Improvements - “Keep Asset” checkbox and Last Use criteria: The ‘Asset Cleanup’ Purge job in CAMIO Admin has now a ‘Last Use Over’ criteria in order to protect from deletion old Assets that may have been used recently:

A ‘Keep Asset’ checkbox has been added within every Assets metadata in CAMIO Asset Manager to protect them from any purge

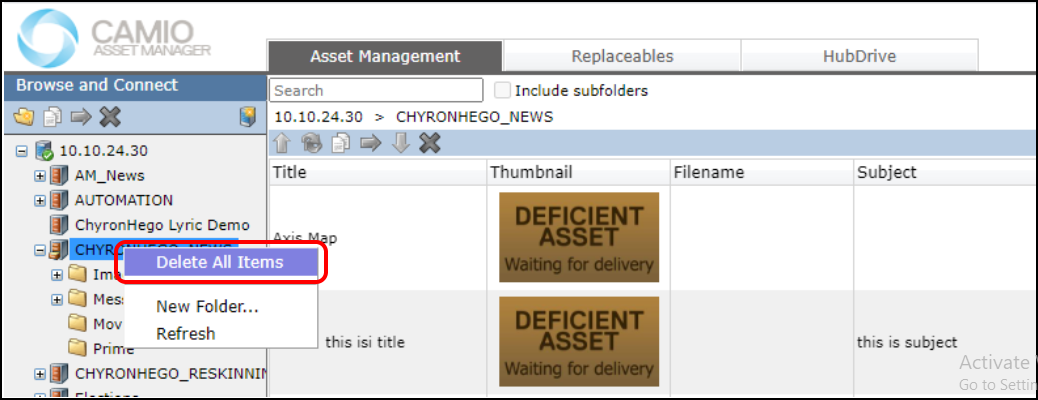

CAM-5482 Asset Manager - Hide the "Delete All Items" Option: For security purposes the ‘Delete All Items’ right-click option on Folders has been removed

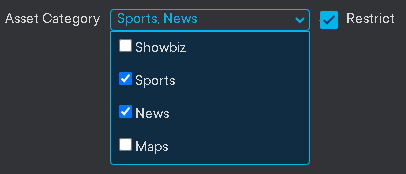

CAM-5581 Image Category Restriction - allow to select multiple Categories: In CAMIO Asset Manager, on graphic templates’ Image Replaceable fields it is now possible to restrict the possibility to insert images coming from different Categories instead of one only, e.g. a Lower Third accepting News or Sports related images only:
CAM-5622 Integration with 7Mountains DINA NRCS: Integration with the Cloud based Rundown and Newsroom system Dina (www.onedina.com):

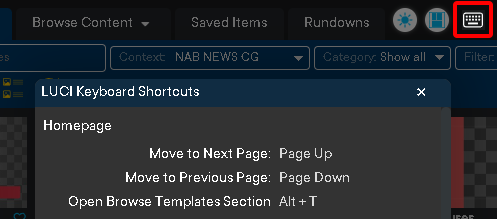

CAM-5654 LUCI Shortcuts Display: Link from LUCI to display the available keyboard shortcuts:
CAM-5712 CAMIO API - Search method - add new types: New types of Asset are available within the Search method of the Camio API:
- - allreplaceabletemplates: to return all existing LyricX and Prime scenes in the Camio system (required parameter(s): version)
  - allimages: to return all existing images in the Camio system (required parameter(s): version)
  - allclips: to return all clips in the Camio system (required parameter(s): version)
  - image: to return the existing images of a given folder id (required parameter(s): version,folderId)
  - clip: to return the existing clips of a given folder id (required parameter(s): version,folderId)
CAM-5724 LUCI Light Mode Style change: The previous LUCI Light Mode had not enough contrast and it was hard to read text over it. It is now fully white.
CAM-5748 Support of Avid iNews 9.x with the HTML Container: CAMIO is supported for its use with Avid iNews 9.x through its HTML plugin, replacing the need to install the LUCI Container on workstations. See the CAMIO5 Administrator Manual for the set up instructions.
- - Note: due to limitations on the Avid HTML Plugin side, the ‘Insert’ button in LUCI to add new graphic objects to stories cannot be used, only the Drag and Drop
  - The ‘Modify Current’ and ‘Replace with New’ buttons to update an existing graphic object cannot be used, only the OK and Apply buttons of the Avid HTML container
    Image description: OK and Apply buttons of Avid container

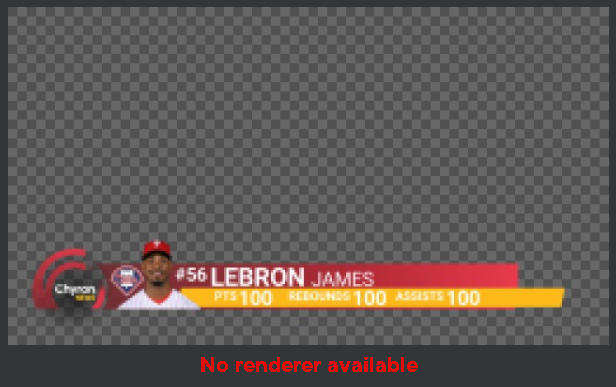

СAM-5801 LUCI - Message when no Renderer is available or an error occurs: Warning messages are now displayed on LUCI interface when no Renderer engine is available or an error occurs:

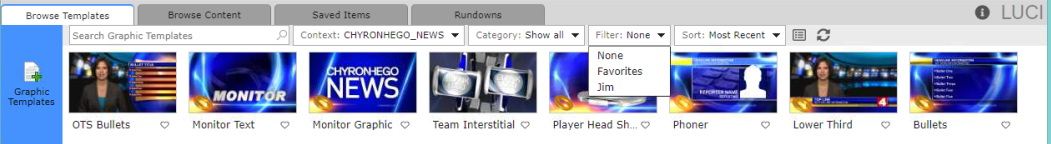

CAM-5904 LUCI - Sort Categories and Filters in alphabetical order: For better usability, the Categories and Filters lists in LUCI main page are now sorted alphabetically.

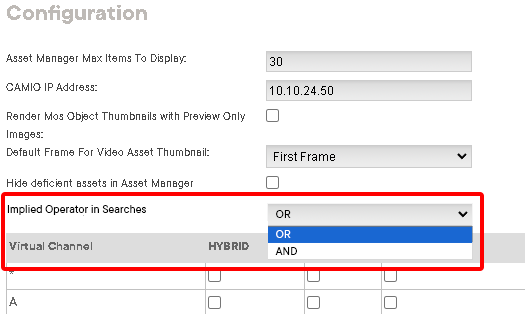

CAM-5927 LUCI/AM Search - implied "or" or "and" between words: Since CAMIO 4.11, any search in LUCI or Asset Manager with 2 words implies an “OR” between them. To satisfy customers complaining about the too broad results, the implied operator to use in such search will be configurable from the Admin, under Configuration > CAMIO Configuration:

Bug Fixes

CAM-2298 Remote Licensing Bug
CAM-2466 Device Management - Alpha characters are allowed to be added as physical channel and cannot be removed afterwards
CAM-2526 asset manager - moving asset does not serialize or override and just fails
CAM-2723 Asset Manager Replaceable Search Field Misbehaves When Selecting Different Folders
CAM-2789 Context permissions don't update when changing login without restarting LUCI.
CAM-2799 XMP Images cause previews to render twice
CAM-2813 Cannot play proxy in LUCI when pagination covers the thumbnail
CAM-2847 using https trying to edit in inews it fail and cause inews to lock up.
CAM-2888 MOV Proxy not working when Animated map is ingested from AXIS into root of context using INGEST folder
CAM-2897 when using SNEWS and try to edit an item the layer combo box do not show
CAM-2907 Multiple Asset Metadata selection not working
CAM-2912 Asset Manager & LUCI Search Text Boxes Missing X to Clear
CAM-3370 sometime when trying edit an item I get a blank asset grid
CAM-4858 Slowness on iSQ
CAM-5044 Double Clicking MOS Object in Script Updates Text Fields but Does Not Return the Correct Thumbnail
CAM-5045 Asset Manager UI Issue - Subfolders Have Confusing Position in Folder Tree
CAM-5056 Compose Tool Pinwheels on Assemble With no Image in Layer 1
CAM-5064 Compose Image Fails if User Has Context Set to "Show All"
CAM-5066 OpenMedia 4.4 - cannot insert MOS Object
CAM-5071 Edit Mode in LUCI does not Display Layer Dropdown Menu
CAM-5080 Asset Manager Spaces in Folder Names
CAM-5571 Minor Errors messages in LUCI
CAM-5589 MOSXML Plugin for LyricX not handling Auto Erase correctly
CAM-5592 Uploading an MOV into asset manager is not creating Proxy after upload
CAM-5598 Multiple Asset Metadata selection not working
CAM-5600 Hub Drive client 1.3.1 crashing with JavaScript error
CAM-5602 Compose Image Fails if User Has Context Set to "Show All"
CAM-5604 LUCI Autofill Fields Do Not Respect Character Limits
CAM-5605 Global Filter Date Range does not work
CAM-5606 Asset Manager & LUCI Search Text Boxes Missing X to Clear
CAM-5607 Metadata Dialog Box is too Small for Content
CAM-5608 Ingest Folders and Contexts Are Displayed In Order Created, not Alphabetically
CAM-5609 Upload mp4 files to Asset Manager thumbnail issue
CAM-5610 Opening an existing graphic from iNews with missing MOS object does not give a warning in LUCI 5
CAM-5612 Asset Manager UI Issue - Subfolders Have Confusing Position in Folder Tree
CAM-5614 LUCI Autofill Text Boxes and Regular Text Boxes are Different Widths
CAM-5620 Transcoder Service stops after some seconds
CAM-5621 LUCI in HTTPS - MOS Messages with links in HTTP
CAM-5632 Issue with PostMessage to Dina - MOS messages are not received by the parent frame
CAM-5634 Swap Templates will not Render Correct Previews in Edit Mode
CAM-5648 CAMIO Admin - List Running Order - Empty CamioServer value
CAM-5649 Chyron FileSync Service does not start automatically upon install
CAM-5656 MediaEngine is licensed but blank
CAM-5669 LUCI - swapping to a Scene with media replaceable does not show the media selector field
CAM-5671 Chyrons not re-skinning
CAM-5672 LUCI - need to close the LUCI window in order to edit some MOS objects
CAM-5673 LUCI - Prime Styles menu disappears in Edit mode
CAM-5674 LUCI - Swapping from a XMP Scene to any other will lock the fields to default value in preview
CAM-5677 Double Clicking MOS Object in Script Updates Text Fields but Does Not Return the Correct Thumbnail
CAM-5678 FileSync - unable to sync some folders (Error: Folder already synced with another remote folder)

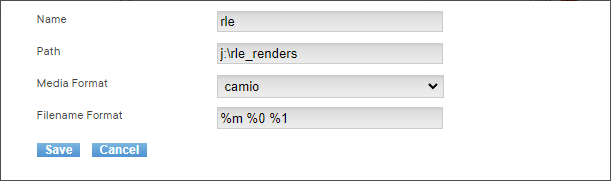

CAM-5691 DB problem: missing 'FilenameFormat' column in RenderMediaDestinations table
CAM-5693 CAMIO Installer - SQL connection always set to "local" for LUCI website
CAM-5702 OpenMedia config halting MOS Generation
CAM-5703 LUCI in OpenMedia - Error while processing NCS_APP_INFO - Cannot read property 'objID' of null
CAM-5707 Asset Manager - Axis Style field not displayed
CAM-5709 Axis Track in LUCI - Thumbnails are not displayed
CAM-5725 On Windows 11 Could not create SSL/TLS secure channel
CAM-5726 LUCI - Axis Track - Thumbnail of selected Track Asset does not appear in Image Picker
CAM-5727 LUCI - Axis Track - View option does not work
CAM-5733 LUCI - Pressing Preview shows the "MOS Object Creation Failed" message
CAM-5734 LUCI in OpenMedia - MOS Object creation error
CAM-5796 Snap frame transition cannot be saved
CAM-5905 FileSync - Client does not detect changes for Folders with Spaces
CAM-5906 FileSync - client seems to loose the Sync Folders settings when logging in

Known Issues

Support of Avid iNews 9.x - HTML5 Plugin - Axis is opened within the container and not in a separate window: Due to a restriction within iNews HTML container, Axis module does not open in a separate window
Image description: Axis opened within iNews container instead of a separate window

5.3.1

Software Compatibility

Release Builds

CAMIO build 5.3.1.159
CAMIO Core (including LUCI and CAMIO FileSync Server)
CAMIO Render
CAMIO Licensing
CAMIO DR
ISQ 3.7.1
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
Data Engine 0.77.7
CAMIO NLE Plugin 5.4.0
CAMIO Hub Drive Client 1.3.2

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0 (new)
ENPS 9 - LUCI native HTML *
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 (MCNM 2020.4) to 8.1 (MCNM 2022.3) - LUCI Container 5.0.3.0
Dalet 3.5 - not compatible
Dalet Galaxy 4 to 5 - LUCI Container 5.0.1.4, requires Dalet support
Octopus 8 - LUCI native HTML, requires Octopus support
Inception 14 to 15 - LUCI native HTML in SSL/TLS Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 - LUCI native HTML, requires CGI support
Snews Arion 3 - LUCI native HTML

* IMPORTANT NOTE: due to an issue in ENPS 9 previous sub-releases, only versions 9.4.80 onwards are certified to be supported.

Prerequisites

Enable HTTPS Binding in Windows IIS

Open Windows IIS Manager on the CAMIO Server
Under Sites, right click on the Default Web Site and select “Edit Bindings…”
If no “https” binding exists, click on Add…
On the displayed window, select ‘https’ for the Type and ‘WMSVC-SHA2’ (or a valid certificate) for the SSL Certificate, then click OK and Close

If this configuration is not properly set, CAMIO Asset Manager should display an empty panel:

Bug Fixes

CAM-5519 LUCI with ENPS9 - MOS Object Edit - Replace with New does not update the MOS Object
CAM-5521 Completed graphics not being created after preview generation in LUCI
CAM-5580 Swap Template button disappears from use after swapping in edit mode
CAM-5620 Transcoder Service stops after some seconds
CAM-5626 XMP Links on all non-XMP fields when editing a MOS object
CAM-5643 LUCI and ENPS not communicating correctly
CAM-5659 Broken XMP link disappears after insert and edit
CAM-5660 DataEngine bn.camio.rundowns bucket is not being purged
CAM-5663 Asset Manager crashing when trying to update Axis properties of Image replaceable

Known Issues

None

5.3.0

Software Compatibility

Release Builds

CAMIO build 5.3
- - CAMIO Core (including LUCI and CAMIO FileSync Server)
  - CAMIO Render
  - CAMIO Licensing
  - CAMIO DR
ISQ 3.7
CAMIO Endpoint 1.2.2
Data Engine 0.77.7
CAMIO NLE Plugin 5.4.0
CAMIO Hub Drive Client 1.3.2
Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0 (new)
ENPS 9 - LUCI native HTML *
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI Container 5.0.3.0
Dalet 3.5 - not compatible
Dalet Galaxy 4 - LUCI Container 5.0.1.4, requires Dalet support
Octopus 8 - LUCI native HTML, requires Octopus support
Inception 14 to 15 - LUCI native HTML in SSL/TLS Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 - LUCI native HTML, requires CGI support
Snews Arion 3 - LUCI native HTML

* IMPORTANT NOTE: due to an issue in ENPS 9 previous sub-releases, only versions 9.4.80 onwards are certified to be supported. For any version prior to 9.3.4 please contact us for validation.

Prerequisites

Enable HTTPS Binding in Windows IIS

Open Windows IIS Manager on the CAMIO Server
Under Sites, right click on the Default Web Site and select “Edit Bindings…”
If no “https” binding exists, click on Add…
On the displayed window, select ‘https’ for the Type and ‘WMSVC-SHA2’ (or a valid certificate) for the SSL Certificate, then click OK and Close

If this configuration is not properly set, CAMIO Asset Manager should display an empty panel:

Features

CAM-2660 CAMIO NLE Plugin - Support of Edius 9 and 10

CAMIO NLE Plugin Configurator now detects the presence of Edius 9 or 10 on the local workstation and installs the Camio Importer plugin within the NLE Plugins folder.

CAM-2705 Add Timecode Out to MOS Object Metadata

The graphic’s entered timecode out value by users is now included in the MOS Object metadata so that it can be displayed in the mosAbstract.
The timecode out (end value) will use the string %ae which can be displayed in the mosAbstract or ISQ timecode format. Currently we use %as for the start value and %ad for the duration value.

CAM-2706 User access control on Filesync folders

Note: FileSync/HubDrive Client 1.3.2 is necessary to use that Feature
The usual workflow with FileSync is the following: Designers upload new package versions to the CAMIO Hub and every PRIME Spoke gets the updates. But they want the Spokes to be able to make some small changes and send them back to the main designer without messing with the Master Package. So the Spokes should be able to push their changes only on different synced folders than the Master ones, where they only have read access.
The ACL Feature is being implemented accordingly. To illustrate it, as an example let's say there are 2 Master Contexts in CAMIO that are getting content by a Designer and then pushed to 2 PRIME as Spokes, which can also push back modified content to CAMIO. Thus on FileSync Configuration side you will have:
- - 4 Folders: Master1, Master2, which will be linked to their matching Context in CAMIO, and Spoke1, Spoke2, linked or not to some Context:

4 Users: admin, designer, spoke1, spoke2, all with read/write permissions:

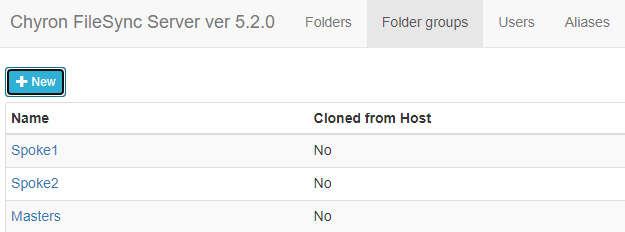

3 Folder Groups (where the permissions are set): Masters, Spoke1, Spoke2:

Masters will contain Master1 and Master2 folders, with read/write permissions for the designer User (i.e. capability to download and upload) and read only for the spoke1 and spoke2 Users (i.e. capability to download only):

Spoke1 will contain Spoke1 folder, with read/write permissions for the spoke1 User and read permissions for the designer User:

Spoke2 will contain Spoke2 folder, with read/write permissions for the spoke2 User and read permissions for the designer User:

With such configuration, the Designer will be able to upload from Prime his work to the Master1 or Master2 contexts, which are then replicated to the Spokes. On their side, the Spokes will be able to upload from Prime their changes to the Spoke1 and Spoke2 contexts, or only through FileSync if not linked to any Context, which are then replicated to the Designer machine.
The Designer won’t be able to upload to Spoke1 or Spoke2 contexts, the Spokes won’t be able to upload to Master1 or Master2.

CAM-2826 Change selected field color in LUCI

The font color of a selected field has been modified to remain with the default color: black in light mode or white in dark mode:

CAM-2827 Integration with SNEWS ARION Newsroom system

Snews Arion NRCS solution is now fully supported by CAMIO

CAM-2830 Ross Inception MOS Profile

Ross Inception latest version is fully supported by CAMIO

CAM-4651 Prevent loading of LyricX messages while Effect In or Effect Out transition are animating

This Feature allows a smooth playout transition between 2 graphics in LyricX, with Effect Out of the 1st and Effect In of the 2nd. If disabled, a hard cut is made when unloading the 1st and loading the 2nd in the Program Output. To enable it, the “Prevent loading of messages while the “effect out” transition is animating” checkbox in ISQ Service settings > Plugins > Lyric Output Plugin > Lyric should be enabled:

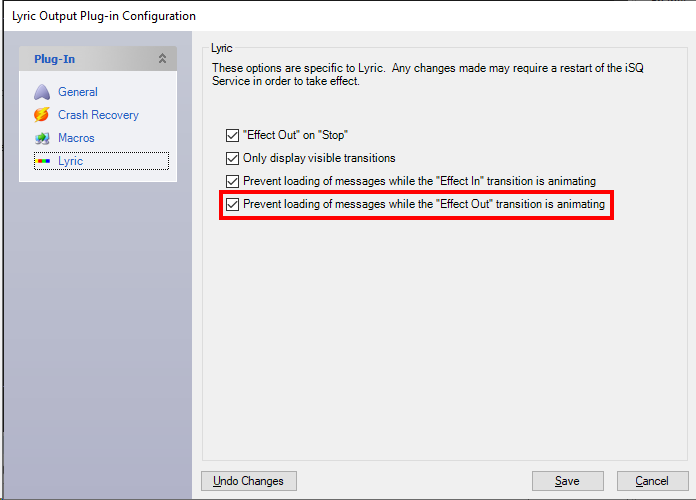

Image description: Prevent loading of messages while the “effect out” transition is animating” checkbox

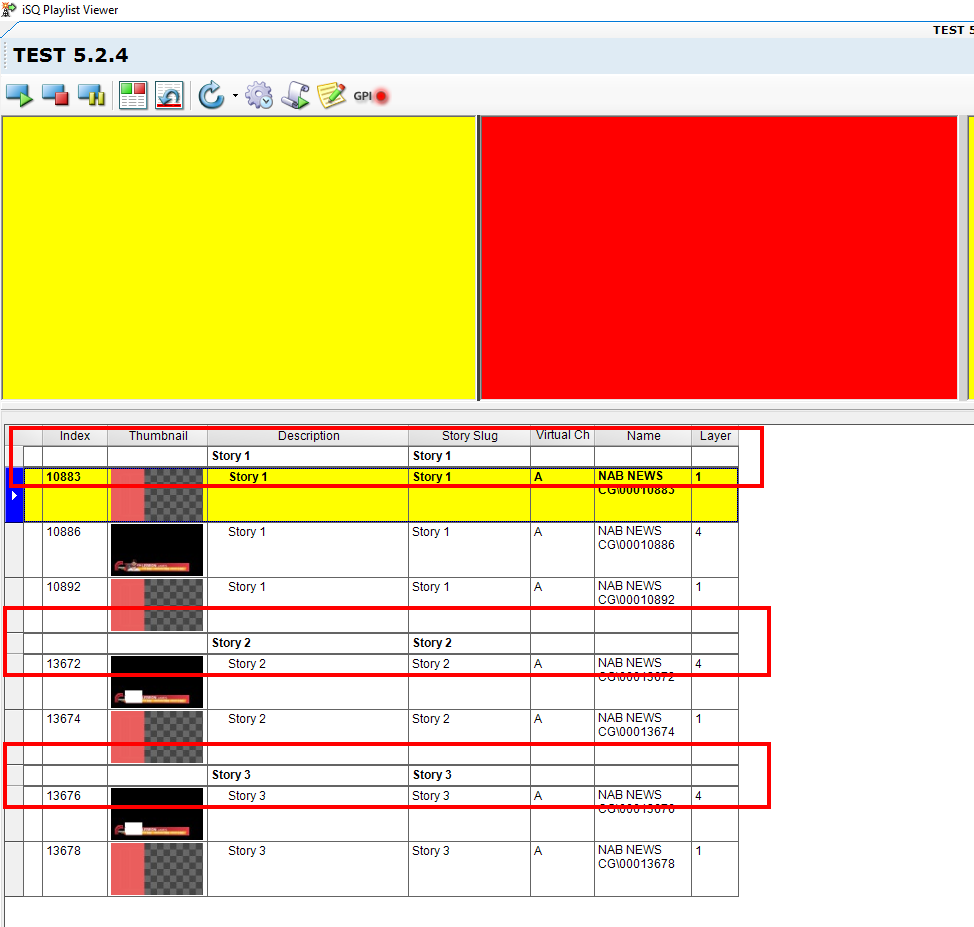

CAM-5091 ISQ Viewer - Display of Story Block

In ISQ Viewer settings under “Playlist” there is a new “Display Story Header” checkbox to display or hide in the playlist the Story Header in which the graphic objects belongs to:

Image description: Story Headers in Playlist

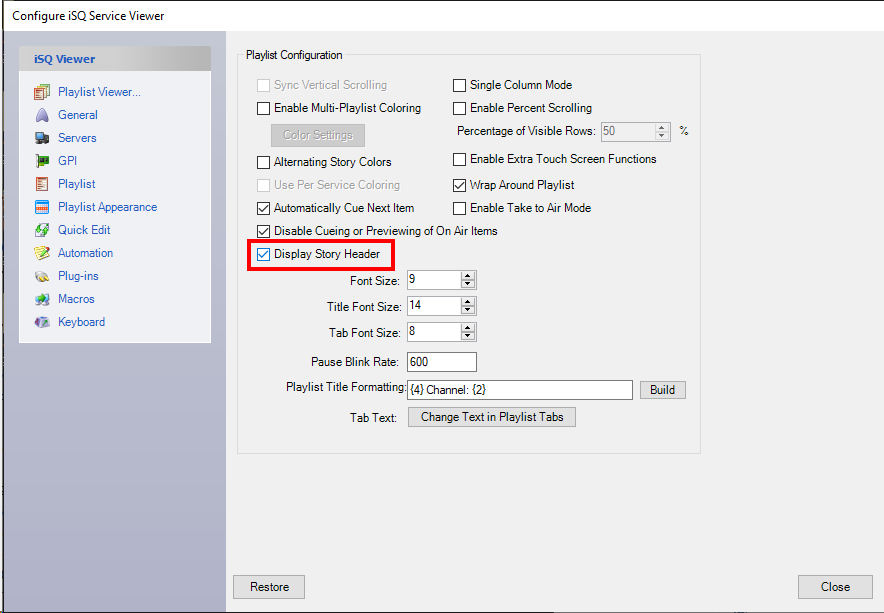

Image description: Display Story Header checkbox

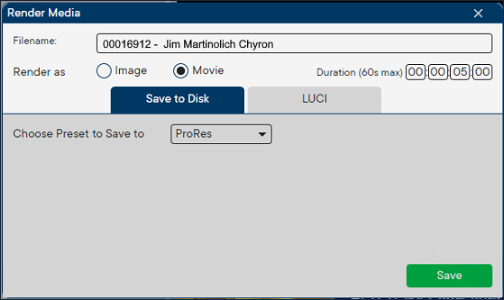

CAM-5100 MediaEngine - changes in code to produce interlaced Prores videos

MediaEngine is now able to render graphics as videos with alpha channel in ProRes 4444 interlaced format, when specified within MediaEngine Presets.

Bug Fixes

CAM-2840 LUCI Plugin window gets blank after Edit
CAM-2846 When uploading a clip to asset manager, it says bad asset and you then have to regenerate thumbnail for it to look OK
CAM-2891 Manual change on a XMP linked field is not maintained
CAM-2893 XMP links disappear when Open in Editor is clicked from Rundowns tab
CAM-2894 XMP Links are lost upon Edit when the XMP Scene has Restriction on Asset Categories on the Replaceable Image
CAM-2909 Swapping Templates does not show all replaceables
CAM-2919 LUCI Swap option - entered values and the Swap button disappear
CAM-2920 LUCI Swap option - mismatch of template fields
CAM-2925 XMP links are lost on edit if a change is saved to the template in the Replaceables tab
CAM-2926 Broken XMP link is not maintained after insert
CAM-2934 CAMIO 5.2.3 losing license and CAMIO software stops working daily
CAM-4785 ISQ lost control of graphic with multiple layers

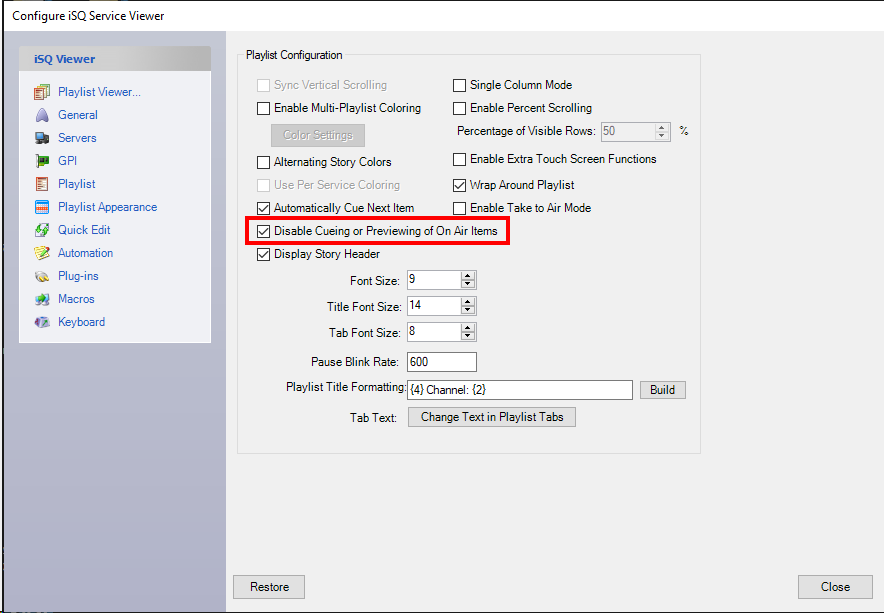

- To prevent the issue where on air items can be queued again and thus playout control is lost, a new “Disable Cueing or Previewing of On Air Items” checkbox has been added to ISQ Viewer settings under “Playlist”. Once enabled it is not possible to load to the Preview output a graphic currently on the Program output.

CAM-4962 Alpha level reporting at 254 instead of 255 when using ProRes codec
CAM-5052 Selecting a Prime XMP data sourced image does not relink unlinked text fields
CAM-5058 ISQ Pause Release Issue
- Fix for the Pause Release issue, where the Unpause button was not effective once multiple rundowns were active in ISQ.

Known Issues

CAM-2908 Swap Template button disappears from use after swapping in edit mode

5.2.0

Release Builds

CAMIO build 5.2.0.11
CAMIO Core (including CAMIO FileSync Server)
CAMIO Render
CAMIO Licensing
CAMIO DR
CAMIO Endpoint 1.2.2
Data Engine 0.77.7
CAMIO NLE Plugin 5.1.0.0
CAMIO Hub Drive Client 1.3.1

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0 (new)
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI Container 5.0.3.0
Dalet 3.5 - not compatible
Dalet Galaxy 4 - LUCI Container 5.0.1.0, requires Dalet support
Octopus 8 - LUCI native HTML, requires Octopus support
Inception - LUCI native HTML in SSL Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 - LUCI native HTML, requires CGI support

New Features

CAMIO FileSync Server

The product formerly known as HubDrive Server has been renamed CAMIO FileSync Server and included into the CAMIO Core installer.

It adds a significant new feature, User Access Control over Folders in FileSync. Shared folders can be assigned to individual user logins, Clients will only see the folders to which they are assigned.

Details of the configuration and operation of FileSync Server and the new user access control feature can be found in the CAMIO5 FileSync Manual

Important Note: Be sure to uninstall any previous versions of HubDrive Server or FileSync Server before installing CAMIO 5.2.0.

Move all LUCI Communication to Ports 80 and 443

LUCI communication with CAMIO was previously using non-standard ports for certain features which made firewall configuration difficult, especially when used over open networks. As of this release all LUCI communication with CAMIO occurs on port 80 for standard systems or port 443 when configured for HTTPS. For instance, communication with Data Engine (port 4300) and Media Engine (port 4303) was moved to the CAMIO API (port 80).

CRD Broadcast Mode

In a multi-Prime system, this feature distributes all Prime rundown objects to all Prime playout devices instead of just the one defined by the channel assignment. This enables playout from alternate devices in case of changing channel assignments from the NCS or with manual and automation playout. Changing channel assignments in ISQ does not need this feature.

This feature does not affect file distribution of Lyric rundown objects. They will continue to work as usual. Lyric does not support playout from alternate devices.

CRD Broadcast Mode is not enabled by default and must be configured in the MOS Management Service app settings.

<add key="CrdBroadcastMode" value="true"/>

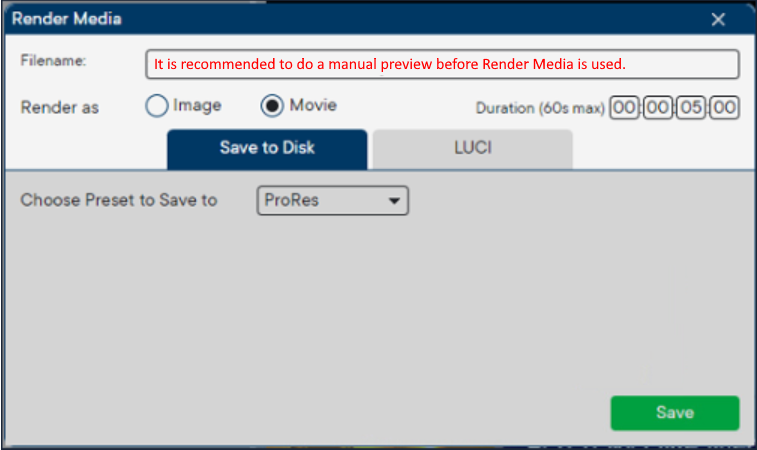

Render Media Filename Formats

This feature adds the ability to automatically name clip files created via Media Engine workflow using a Filename Format defined in the Media Engine Presets dialog.

The screen grab shows the new field added to the form. The Slug Format is defined using the same format strings used to define the objSlug and mosAbstract. These are described in the "CAMIO5 Administrator Manual " in Appendix B: MOS Object Metadata Format Strings.

When a Slug Format is defined, the Filename will be automatically populated when generating a clip file as shown below. The user can edit the Filename if desired prior to clicking the SAVE button.

NOTE: the filename will be truncated to 64 characters and any invalid characters will be removed.
This assumes that the graphics being rendered is already a MOS Object. But it is possible for Render Media to render a graphic that is not already a MOS Object. In that case the Filename will be left blank and the Render Media dialog should warn the user that it is preferred to do a Manual Preview first in order to create a MOS Object. Such as in the example below.

This assumes that the graphics being rendered is already a MOS Object. But it is possible for Render Media to render a graphic that is not already a MOS Object. In that case the Filename will be left blank and the Render Media dialog should warn the user that it is preferred to do a Manual Preview first in order to create a MOS Object. Such as in the example below.

Prime/ISQ Data Message Playout

This is a major change to how Prime messages are played out by ISQ. Configuring this change requires editing several config files and upgrading to special versions of ISQ and CAMIO Endpoint.

This fixes a problem where in some cases of very large rundowns, and especially with the iNews newsroom system, the running order updates generated by producers would saturate the ISQ communication and cause cueing problems.

Data Message Playout feature requires new versions of Prime, ISQ and Endpoint.

Requires Prime 3.8.18 or later 3.x.x build, or Prime 4.5.2 or later 4.x.x build.
Requires ISQ Build 3.5.10.0 or 3.6.2.0.
- ISQ 3.6 includes support for Prime running 2110 with the Matrox 25G board
- ISQ 3.5 build is required for some customers which have reported memory leaks with the 3.6 version of ISQ.
Requires CAMIO Endpoint Build 1.2.2.0 on the Prime playout devices.

Important Note: Data message playout feature cannot be used with Metacast Weather or VSAR playout. Contact Chyron Support for more information.

Enabling New Media Engine Formats

It is now possible to create and use new Media Engine Formats. It is recommended to use the CAMIO Admin Tools > Media Engine Formats to create new ones instead of using the Media Engine UI.

Bug Fixes

CAM-2407 LUCI Template Context drop down list issue when there is only one context
CAM-2450 Saved Item display gets corrupted by large mos abstracts
CAM-2470 Animated Preview not working when HTTPS
CAM-2516 Replaceable Tab Autofill
CAM-2522 Animated Preview Source URL
CAM-2580 Movie and Image Proxies not showing in LUCI or Asset Manager
CAM-2585 Renderer Installer needs the prerequisite 2013 x64 redistributable
CAM-2589 LUCI Compositor Metadata Windows not word wrapping
CAM-2583 Prime previews fail when using illegal XML characters such as <> in replaceable fields’ ID and Name.
CAM-2594 Cannot open or edit MOS objects which have illegal XML characters in the template

Known Bugs

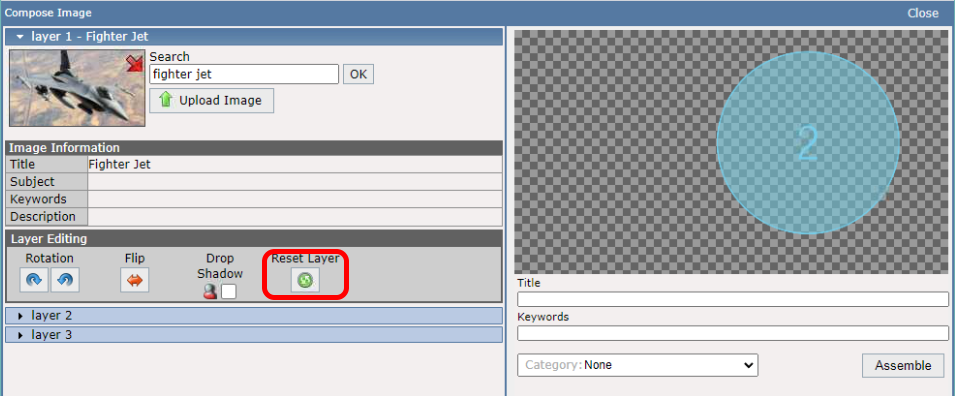

CAM-2588 Compose Layering not Assembling Properly: When using the LUCI image compose tool, Searched Images will not show up in the canvas. This bug will be fixed in later versions, but in the meanwhile the workaround is to use Upload Images instead of Searched Images. This will show the graphic as expected.

5.1.1

New Features

Improvements to Local Cache Playout Mode introduced in 5.1.0
CAM-2535 Enable Local Cache Playout Mode by default in the MOS Service Config File.
CAM-2632 Install CAMIO Endpoint 1.2.1 on CAMIO Render with localCacheMode set to false.
CAM-2523 Update CAMIO Endpoint installer to 1.2.1 with localCacheMode set to true for use on Prime playout devices
Important: This feature requires CAMIO Endpoint version 1.2.1 and up on all Prime playout devices.
- This endpoint version is for Prime playout devices only and should not be installed on Fresh (Hybrid) or Metacast playout devices. Contact Chyron Support for more information.

Bug Fixes

CAM-2549 LUCI Category, Filter, Sort Drop Downs not working
CAM-2473 Residual websocket errors from deprecated features
CAM-2532 Render Installer - minor change to endpoint installer

Known Bugs

CAM-2470 Animated Preview not working when running LUCI as HTTPS

5.1.0

Software Compatibility

Release Builds

CAMIO build 5.1.1.3
CAMIO Core
CAMIO Render
CAMIO Licensing
CAMIO DR
CAMIO Endpoint 1.2.1
Data Engine 0.77.7
CAMIO NLE Plugin 5.1.0.0

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.1.0.0 (new)
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI Container 5.0.3.0
Dalet 3.5 - not compatible
Dalet Galaxy 4 - LUCI Container 5.0.1.0, requires Dalet support
Octopus 8 - LUCI native HTML, requires Octopus support
Inception - LUCI native HTML in SSL Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 - LUCI native HTML, requires CGI support

New Features

LUCI Context Filtering: A feature was added to the LUCI Context Selector to make it easier to find a given context in a long list. There is a text field at the top of the context selector drop down. Typing one or more characters into this field will narrow down the list to context names that match the typed characters, from the first letter, as shown below.

LUCI Vertical Mode:

Added an optional Vertical Mode. Rearranges the panels in editor view to fit better in a vertical layout (when height is greater than width). Switch between these modes by clicking on the button shown.

When in Horizontal Mode, the button will display to switch to Vertical Mode.

When in Vertical Mode the button will display to switch to Horizontal Mode.

LUCI Continuous Rundown View
Added an optional continuous rundown view which shows graphics from the entire rundown rather than one story at a time. A check box next to the rundown selection dropdown will switch between story view and full rundown view.

Image description: The Story List can be hidden to make more room for the rundown thumbnails. Click on the Hide link highlighted below..

Clicking once on an item will select it, shown as a gray outline. When switching back and forth between story view and full rundown view the selected item will remain in view and highlighted.
Double clicking on the selected item in Full Rundown View will open it in edit mode. When in Story View, click the “Open in Editor” button instead. Rundown editing can be enabled/disabled by the administrator. The newsroom computer system must support the mosItemReplace command for the rundown editing feature to work.

Rundown editing can be enabled/disabled globally in Admin Tools > LUCI Users Default Configuration > Rundown View Edit. The feature can also be overridden individually for users in Admin Tools > Users > Rundown View Edit.

Saved Item Changes

Saved Items dialog now makes the Save As checkbox available more often and preselects it by default. This will save the item to the existing Object ID instead of a new Object ID. This is useful when wanting to save a specific MOS Object such as those in a master rundown.

AWS Licensing

CAMIO License Manager has been updated to allow licensing CAMIO Core and Render on AWS instances.

CAMIO NLE Plugin

A new version of the NLE Plugin which supports changes in Adobe Premiere CC 2020 and 2022. This plugin also supports Avid Media Composer, GVG Edius and the Watch Folder workflow.

CAMIO API

Additional API commands were added to allow third party integration with media rendering functions.

LUCI Container for ENPS

A new LUCI Container version 5.1.0.0 has been released for use with ENPS 8 that reduces crashing when opening and closing LUCI in ENPS.

Limit Context and Subfolder Names to 64 Characters

Creating new Context and context subfolder names will be limited to 64 characters to help manage the user interfaces. In the rare case that an existing name exceeds 64 characters it will not be affected.

Local Cache Playout Mode

This changes the way rundown assets are distributed and used by Prime playout devices. This will fix problems cueing and playing graphics with ISQ in rapidly changing rundowns (ISQ-319) and due to the endpoint deleting rundown files after a time (CDE-43).

Important: This feature requires Camio Endpoint version 1.2.0 and up on all Prime playout devices. This endpoint version is for Prime playout devices only and should not be installed on the CAMIO Render server or Fresh (Hybrid) or Metacast playout devices.

Local Cache Playout Mode requires two configuration settings that need to be enabled.

Configure CAMIO MOS Service on the CAMIO Core Server

Open the MOSService.exe.config file in Notepad. This file is located in the Camio application folder for MOS Service.
Locate the appSettings section in the configuration file.
Locate the EnableDataEngineLocalCacheModeRundownFormat key in the appSettings section.
For EnableDataEngineLocalCacheModeRundownFormat set the value to true to enable local cache mode and false to disable it.
Save the change made to the MOSService.exe.config file.
Restart the MOSService.

Install and Configure CAMIO Endpoint version 1.2.0 on the PRIME Playout device:

Open the config.json file in Notepad. This file is located in the Camio Endpoint application folder.
Find the localCacheMode setting in the config.json file. Set this value to true to enable local cache mode or set it to false to disable. Make sure the change aligns with a JSON formatted file. Example: "localCacheMode": true
Save the change made to the config.json file.
Restart the CAMIO Endpoint.

After the configuration steps for both CAMIO and CAMIO Endpoint have been completed. Re-activate the rundown in the Newsroom system.

Bug Fixes

CAM-2299 ASPState Database error when doing a clean CAMIO 5 install
CAM-2367 Fix Asset Category Metadata Saving
CAM-2461 Asset Manager Folder creation allows backslashes which are invalid foldername characters

Known Bugs

CAM-2470 Animated Preview not working when running LUCI as HTTPS
CAM-2473 Fix various websocket errors when running LUCI as HTTPS

5.0.2

New Features

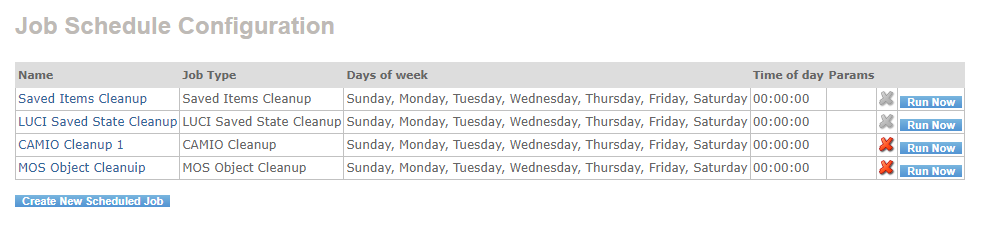

CAM-2297 - A ‘Run Now’ button has been added to all jobs to allow the user to run a job as required.

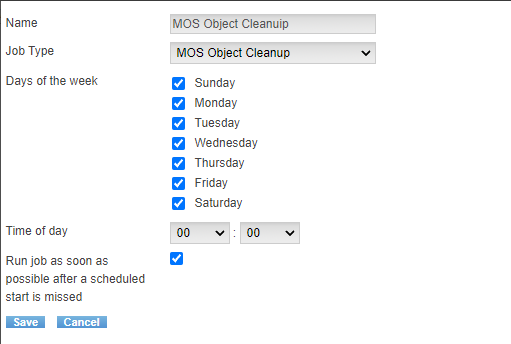

CAM-2217- A “Run as soon as possible after scheduled start is missed” checkbox has been added to the Job Schedule Configuration for each job.
- When checked, the job will run if the scheduled run time has passed that day. That could occur if the CAMIO was off during the scheduled run time, or if the job was newly created or enabled.
- When not checked, the job will not run if the scheduled run time was missed that day. This checkbox is checked by default when upgrading CAMIO or creating new jobs. This matches the operation of previous versions of CAMIO.

Bug Fixes

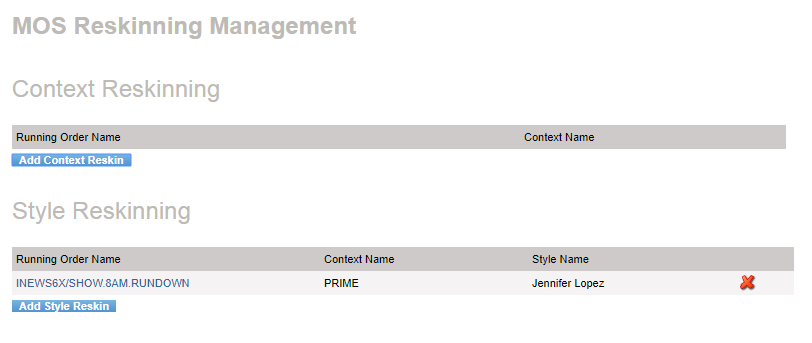

CAM-2327 Style Reskinning not working with ENPS rundowns
CAM-2184 CAMIO Restarts Force Re-render of the MOS Cache for Replicated Asset Folders
CAM-2188 Upload to CAMIO from Prime don't show category metadata in Asset Manager or LUCI
CAM-2212 Uploaded Media Doesn't Respect Default Thumbnail Frame Setting
CAM-2215 Cannot Download Assets from Spoke CAMIOs in Hub Asset Manager
CAM-2229 Replication status page show MOV files but its working
LW-971 Unable to select camera positions field in LUCI
LW-979 Swap Templates in LUCI5 is not respecting Character Count defined in replaceables for the new template

5.0.1

New Features

Animated LUCI Previews with Media Engine option.
New Asset Dependency feature in Asset Manager, lists MOS Objects dependent on a given asset.
Playout Channels license management feature

5.0

Software Compatibility

Release Builds

CAMIO build 5.0.2.0
CAMIO Core
CAMIO Render
CAMIO Licensing
CAMIO DR
Data Engine 0.77.7
Mediamaker Utilities 2.0.0.2

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - not compatible
ENPS 7 - LUCI Container 5.0.0.13 / 5.0.0.15
ENPS 8 - LUCI Container 5.0.3.0
ENPS 9 - LUCI native HTML (not working at the moment)
iNews 3.5 to 4.0 - not compatible
iNews 5.0 to 6.3 - LUCI Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI Container 5.0.3.0
Dalet 3.5 - not compatible
Dalet Galaxy 4 - LUCI Container 5.0.1.0, requires Dalet support
Octopus 8 - LUCI native HTML, requires Octopus support
Inception - LUCI native HTML in SSL Mode, requires Ross support
Open Media 4.2 - not compatible
Open Media 4.4 - LUCI native HTML, requires Scisys/CGI support

Initial Release

New Licensing

Requires new SentinelSHK dongle
Limits playout devices and concurrent LUCI seats
Restyled UI for Asset Manager and LUCI including dark look
Dropping support for some legacy features
LUCI4 (which means may not support some older NCS)
Internal Lyric renderer
Lyric MOSXML Plugin features
LUCI is now part of CAMIO install
Unified installers, version numbers and rebranding are planned

4.11.4

Software Compatibility

Release Builds Compatibilities

CAMIO 4.11.4.76
LUCI5 Website 5.11.4.105 (required)
CAMIO Renderer 4.11.4.9
CAMIO DR 4.11.4.6
CAMIO Endpoint 1.2.2+ (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2+ (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 4.11.4.76 (required for VM installations)
Hubdrive Server 1.2.1.3
Hubdrive Client 1.3.1
Mediamaker Utilities 2.0.2+
CAMIO NLE Plugin 5.4.0
ISQ 3.6.4+
Prime 3.8.18+, 4.5.2+

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - Not supported
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
iNews 8 and 9 - Not supported
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires CGI support
Open Media 4.4 - LUCI4 and LUCI5, requires CGI support
Open Media 5 - LUCI5, requires CGI support

Features

CAM-6237 CAMIO4 - LUCI /AM Search - implied "or" or "and" between words:

Since CAMIO 4.11, any search in LUCI or Asset Manager with 2 words implies an “OR” between them. To satisfy customers complaining about the too broad results, the implied operator to use in such search will be configurable from the Admin, under Configuration > CAMIO Configuration:

Bug Fixes

CAM-2628 Asset Manager - Pushing Backspace in Character Limit Text Box Does Not Work Correctly
CAM-2635 LUCI Autofill Fields Do Not Respect Character Limits
CAM-2795 Temp directory name is disappearing causing media engine to fail on the renderer Requires the installation of CAMIO Endpoint 1.3.0.
CAM-2841 CAMIO 4.11.1 adds .lyr extensions in asset managerCAM-3890 LUCI5 Container intermittently gets stuck at white blank screen
CAM-5611 CAMIO 4.11.0 Bug: Asset Manager Replacable Search Field Misbehaves When Selecting Different Folders
CAM-5653 CAMIO User Password Change - no error message when entering a wrong Existing Password or New Password Confirmation
CAM-5727 LUCI - Axis Track - View option does not work
CAM-5930 Camio with OpenMedia - ISQ receives empty rundowns
CAM-5940 CAMIO 4.11 Admin - List Running Order - Empty CamioServer value
CAM-5941 CAMIO 4.11.3 - LUCI - Axis Track content is not displayed until the Refresh button is pressed
CAM-5943 CAMIO 4.11.3 - License Type not displayed
CAM-5949 LUCI Search - & operator works only for values within the same metadata field
CAM-5951 MediaEngine 'camio' profile generates RLE videos with no Alpha
CAM-5975 Global Filters with Rolling Date give no results
CAM-6035 LUCI typing into an Autofill field does not work
CAM-6173 Camio Typing in Auto Fill drop downs does not reduce available options
CAM-6183 Auto Fill doesnt populate dependent source text
CAM-6235 Autofill Dependent Source updates blank
CAM-6305 Replication from Hub to Spoke is blocked with CRD with brackets in replaceables name
CAM-6316 LUCI 4.11.3 Cant search the dropdown menu anymore
CAM-6443 CAMIO 4.11.4 displays 4.11.3 in admin tool and luci
CAM-6718 CAMIO video proxy issue

Known Issues

None

4.11.3

Software Compatibility

Release Builds Compatibilities

CAMIO 4.11.3.51
LUCI5 Website 5.11.3.81 (required)
CAMIO Renderer 4.11.3.7
CAMIO DR 4.11.3.5
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 4.11.3.51 (required for VM installations)
Hubdrive Server 1.2.1.3
Hubdrive Client 1.3.1
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 5.4.0
ISQ 3.6.4+
Prime 3.8.18+, 4.5.2+

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - Not supported
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires CGI support
Open Media 4.4 - LUCI4 and LUCI5, requires CGI support
Open Media 5 - LUCI5, requires CGI support

Bug Fixes

CAM-2888 MOV Proxy not working when Animated map is ingested from AXIS into root of context using INGEST folder
CAM-4961 LUCI4 Spell Check license is not working after a period of time when using CAMIO4 in a VM
CAM-5103 LUCI Container White Screen after editing graphic from replaceable selection
CAM-5591 Video Proxies for clips is not being generated by CAMIO
CAM-5595 MOV Proxy not working when Animated map is ingested from AXIS into root of context using INGEST folder
CAM-5604 LUCI Autofill Fields Do Not Respect Character Limits
CAM-5607 Metadata Dialog Box is too Small for Content
CAM-5608 Ingest Folders and Contexts Are Displayed In Order Created, not Alphabetically
CAM-5610 Opening an existing graphic from iNews with missing MOS object does not give a warning in LUCI 5
CAM-5611 Asset Manager Replaceable Search Field Misbehaves When Selecting Different Folders
CAM-5663 Asset Manager crashing when trying to update Axis properties of Image replaceable
CAM-5710 CAMIO 4 - Axis Track in LUCI - Thumbnails are not displayed
CAM-5726 LUCI - Axis Track - Thumbnail of selected Track Asset does not appear in Image Picker
CAM-5740 Televisa - Users randomly lose access to specific Contexts: To prevent the issue where Contexts are not displayed within the selectable list in LUCI, the Refresh button has been modified to recall the available ones for the logged in user:

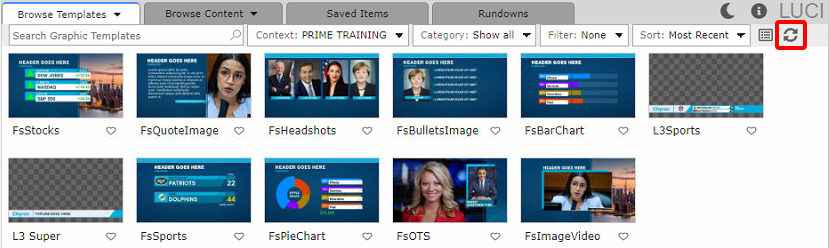

Image description: Refresh button in LUCI to reload the list of available Contexts

Known Issues

CAM-5603 Asset Manager - Pushing Backspace in Character Limit Text Box Does Not Work Correctly
CAM-5613 Camio adds .lyr extensions in asset manager
CAM-5930 Camio with OpenMedia - ISQ receives empty rundowns
CAM-5948 Camio Replication - Cannot create Replication to Camio 5
CAM-5951 MediaEngine 'camio' profile generates RLE videos with no Alpha

Can be resolved by replacing the content of file “C:\Program Files\Chyron\CAMIO Media Engine\Media Engine\presets\camio.json” on the Camio server by the following:

{
"name": "camio",
"description": "Default preset used save-to-luci LUCI 5.",
"class": "lossless",
"container": "mov",
"codec": "rle",
"alphaChannelMode": "alpha",
"id": "camio"
}

4.11.2

Release Builds Compatibilities

CAMIO 4.11.2.x
LUCI5 Website 5.11.2.x (required)
CAMIO Renderer 4.11.2.x
CAMIO DR 4.11.2.x
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 4.11.2.x (required for VM installations)
Lyric Device 1.2.2.0
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 5.4.0
ISQ 3.6.4+
Prime 3.8.18+, 4.5.2+

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - Not supported
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires CGI support
Open Media 4.4 - LUCI4 and LUCI5, requires CGI support

Features

CAM-2660 CAMIO NLE Plugin - Support of Edius 9 and 10

CAMIO NLE Plugin Configurator now detects the presence of Edius 9 or 10 on the local workstation and installs the Camio Importer plugin within the NLE Plugins folder.

CAM-4651 Prevent loading of LyricX messages while Effect In or Effect Out transition are animating

This Feature allows a smooth playout transition between 2 graphics in LyricX, with Effect Out of the 1st and Effect In of the 2nd. If disabled, a hard cut is made when unloading the 1st and loading the 2nd in the Program Output. To enable it, the “Prevent loading of messages while the “effect out” transition is animating” checkbox in ISQ Service settings > Plugins > Lyric Output Plugin > Lyric should be enabled:

Image description: Prevent loading of messages while the “effect out” transition is animating” checkbox

CAM-5091 ISQ Viewer - Display of Story Block

In ISQ Viewer settings under “Playlist” there is a new “Display Story Header” checkbox to display or hide in the playlist the Story Header in which the graphic objects belongs to:

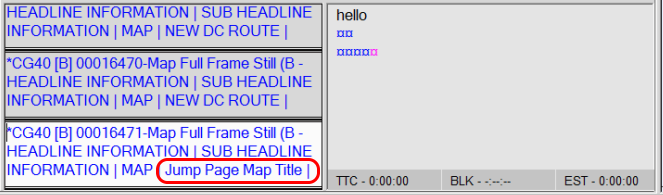

Image description: Story Headers in Playlist

Image description: Display Story Header checkbox

Bug Fixes

CAM-2687 Null reference exception when uploading new asset
CAM-2691 Javascript warnings when Asset Manager metadata dialog pops up
CAM-2708 Mutli-select assets with different layers doesn't show as multiple values
CAM-2799 XMP Images cause previews to render twice
CAM-2845 Alpha level reporting at 254 instead of 255 when using default media engine preset in CAMIO
CAM-2846 When uploading a clip to asset manager, it says bad asset and you then have to regenerate thumbnail for it to look OK
CAM-2859 Generate thumbnail fails on upload when thumbnail frame is set to First Frame
CAM-2883 LUCI4 Spell Check license is not working after a period of time when using CAMIO4 in a VM
CAM-4785 ISQ lost control of graphic with multiple layers: To prevent the issue where on air items can be queued again and thus playout control is lost, a new “Disable Cueing or Previewing of On Air Items” checkbox has been added to ISQ Viewer settings under “Playlist”. Once enabled it is not possible to load to the Preview output a graphic currently on the Program output.

Image description: Disable Cueing or Previewing of On Air Items checkbox

CAM-5058 ISQ Pause Release Issue: Fix for the Pause Release issue, where the Unpause button was not effective once multiple rundowns were active in ISQ.
CAM-5073 Some elements in LUCI and MOS messages are passed in HTTP even if HTTPS is set
CAM-5074 Video Proxies are not being generated by default upon upload to camio asset manager
CAM-5110 Media Engine services stops responding and customer needs to restart service
CAM-5500 CAMIO 4.11.1 - data engine bn.camio.rundowns bucket is not being purged and causing major delays

Known Issues

None

4.11.0

Software Compatibility

Release Builds

CAMIO 4.11.0.5

LUCI5 Website 5.11.0.5 (required)
CAMIO Renderer 4.11.0.0
CAMIO DR 4.11.0.0
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 4.11.0.5 (required for VM installations)
Lyric Device 1.2.2.0
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 4.10.0.0

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires Scisys support
Open Media 4.4 - LUCI4 and LUCI5, requires Scisys support

New Features

Enhanced Search Feature: This version introduces an enhancement to the LUCI and Asset Manager search feature introduced in 4.9.12.

The & operator is added which searches for combinations of words in any order. This works together with the existing search operation to give search options described by the following examples.

red blue green - will return any asset which has either red, blue or green in the metadata.
red “blue green” - will return any asset which has either red or the string “blue green” exactly as written in the double quotation marks.
red & blue - will return any asset which has both red and blue in any order in one of the metadata fields.
red & blue green - will return any asset which has either (red and blue) or green.

Notes about the & operator.

& within a word, such as A&P, just acts as a character. It must have spaces on both sides to act as an operator.
To search for the & character specifically it must be put in double quotes “&” or be at the beginning or end of the search term (‘& red blue’ and ‘red blue &’ return assets with either red, blue or the & character..
The & searches only work within a single metadata field. You would not find an asset where one and’ed search term is in the Title field and the other word is in the Description field.

LUCI5 Disable XMP Link Protection

CAM-2372 This feature gives the option of disabling XMP Link Protection in LUCI5. The option is selected by the administrator in Admin Tools > LUCI Configuration > Disable XMP Link Protection = True or False. False is the default and matches the previous behavior.
The default setting is Disable XMP Link Protection = False

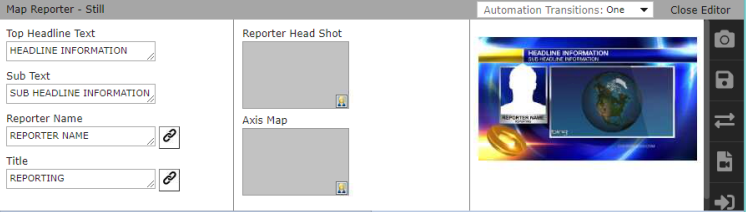

Text fields which are linked to XMP data in images are shown with a chain link icon alongside. When the chain is whole the text field is blocked and cannot be manually typed in. If a user wishes to type in that text field, they must click on the chain link icon and show it as broken link

The alternate setting Disable XMP Link Protection = True
The chain link icon will show as grayed out and the user can always type into the linked text field. The chain link will still show as linked or unlinked if a user manually types into the text field.

LUCI5 Global Filters Display by Context: LUCI5 Global Filters will now be displayed only in the Asset Type and Context for which they were created in Admin Tools. This more closely matches previous behavior in LUCI4.
Global Filters are shown in a drop down in LUCI5.

Global Filters are configured in Admin Tools > LUCI User Default Configurations

Bug Fixes

CAM-2562/2606 LUCI displaying incorrect channel assignment when opening items from rundown
CAM-2588/2615 LUCI Compositor - Layers not appearing in canvas
CAM-2616 LUCI Compositor - Layers not compositing in the correct order
CAM-2601 HTTPS Bug - Inception HTML container bug
CAM-2622/2624 Replication Bug - Replaceables not Replicating

4.10.2

Software Compatibility

Release Builds

CAMIO 4.10.2.2
LUCI5 Website 5.10.2.3 (required)
CAMIO Renderer 4.10.2.0
CAMIO DR 4.10.2.0
CAMIO Endpoint 1.2.2.0 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.2.0 (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 4.10.2.2 (required for VM installations)
Lyric Device 1.2.2.0
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 4.10.0.0

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires Scisys support
Open Media 4.4 - LUCI4 and LUCI5, requires Scisys support

New Features

Prime ISQ Data Message Playout: This is a major change to how Prime messages are played out by ISQ. Configuring this change requires editing several config files and upgrading to special versions of ISQ and CAMIO Endpoint.

This fixes a problem where in some cases of very large rundowns, and especially with the iNews newsroom system, the running order updates generated by producers would saturate the ISQ communication and cause cueing problems.
Data Message Playout feature requires new versions of Prime, ISQ and Endpoint.
Requires Prime 3.8.18 or later 3.x.x build, or Prime 4.5.2 or later 4.x.x build.
Requires ISQ Build 3.5.10.0 or 3.6.2.1.
ISQ 3.6 includes support for Prime running 2110 with the Matrox 25G board
ISQ 3.5 build is required for some customers which have reported memory leaks with the 3.6 version of ISQ.
Requires Camio Endpoint Build 1.2.2.0 on the Prime playout devices.

Important Note: Data message playout feature cannot be used with Metacast Weather or VSAR playout. Contact Chyron Support for more information.

For more info about installation and configuration, see the document "ISQ Prime Data Message Playout Mode".

Bug Fixes

CAM-2583 Prime previews fail when using illegal XML characters such as <> in replaceable fields’ ID and Name.
CAM-2594 Cannot open or edit MOS objects which have illegal XML characters in the template
CAM-2580 Movie and Image Proxies not showing in LUCI or Asset Manager

Known Bugs

CAM-2588 Compose Layering not Assembling Properly
When using the LUCI5 image compose tool, searched graphics will not show up in the canvas. This bug will be fixed in later versions, but in the meanwhile the workaround is to press the Reset Layer after selecting a graphic. This will show the graphic as expected.

4.10.1

Software Compatibility

Release Builds

CAMIO 4.10.1.0
LUCI5 Website 5.10.1.0 (required)
CAMIO Renderer 4.10.0.0
CAMIO Endpoint 1.2.1.1 (used on Renderer, localCacheMode = false)
CAMIO Endpoint 1.2.1.1 (used on Prime playout devices, localCacheMode = true)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 1.2.1 (required for VM installations)
Lyric Device 1.2.2.0
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 4.10.0.0

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires Scisys support
Open Media 4.4 - LUCI4 and LUCI5, requires Scisys support

New Features

This is an optional upgrade only required if producers are accustomed to changing the channel assignments of Prime objects in the newsroom system UI instead of in LUCI.

CRD Broadcast Mode

In a multi-Prime system, this feature distributes all Prime rundown objects to all Prime playout devices instead of just the one defined by the channel assignment. This enables playout from alternate devices in case of changing channel assignments from the NCS or with manual and automation playout. Changing channel assignments in ISQ does not need this feature.
This feature does not affect file distribution of Lyric rundown objects. They will continue to work as usual. Lyric does not support playout from alternate devices.
CRD Broadcast Mode is not enabled by default and must be configured in the MOS Management Service app settings.
<add key="CrdBroadcastMode" value="true"/>
CRD Broadcast Mode must only be used when the Local Cache Playout Mode is enabled.

Changes to Local Cache Playout Mode:

In this release, the Local Cache Playout Mode described below (10.1.0) is set to true by default.

Important This feature requires Camio Endpoint version 1.2.1 and up on all Prime playout devices.
This version is also not compatible with Hybrid/Fresh or Metacast Playout devices as configured.

Please contact CAMIO Product Management for more information if using those systems.

4.10.0

Software Compatibility

Release Builds

CAMIO 4.10.0.1
LUCI5 Website 5.10.0.0 (required)
CAMIO Renderer 4.10.0.0
CAMIO Endpoint 1.1.27.0 (used on Renderer)
CAMIO Endpoint 1.2.1.0 (used on Prime playout devices.)
LUCI4 build 4.1.4.0 (suggested)
Licensing Service 1.2.1 (required for VM installations)
Lyric Device 1.2.2.0
Mediamaker Utilities 2.0.2.0
CAMIO NLE Plugin 4.10.0.0

Newsroom System Compatibility

Please contact Product Management with any questions about newsroom compatibility

ENPS 6 - LUCI4 only
ENPS 7.4 to 8.4 - LUCI4 and LUCI5 in Container 5.1.0.0
ENPS 9 - LUCI native HTML (not supported at the moment)
iNews 3.5 to 4.0 - LUCI4 only
iNews 5.0 to 6.3 - LUCI4 and LUCI5 in Container 5.0.0.14
iNews 7.0 to 7.5 - LUCI4 and LUCI5 in Container 5.0.1.4
iNews 7.6 to 7.7 - LUCI4 and LUCI5 in Container 5.0.4.2
Dalet 3.5 - LUCI4 only, requires Dalet support
Dalet Galaxy 4 - LUCI4 and LUCI5, requires Dalet support
Octopus 8 - LUCI4 and LUCI5, requires Octopus support
Inception - LUCI5, requires Ross support
Open Media 4.2 - LUCI4 only, requires Scisys support
Open Media 4.4 - LUCI4 and LUCI5, requires Scisys support

New Feature

Local Cache Playout Mode: This changes the way rundown assets are distributed and used by Prime playout devices. This will fix intermittent problems cueing and playing graphics with ISQ in rapidly changing rundowns.

Local Cache Playout Mode must be enabled in the MOS Management Service app settings.
<add key="EnableDataEngineLocalCacheModeRundownFormat" value="true"/>
Important: This feature requires Camio Endpoint version 1.2.1 and up on all Prime playout devices. This endpoint version is for Prime playout devices only and should not be installed on the CAMIO Render server. This version is also not compatible with Hybrid/Fresh or Metacast Playout devices. Please contact CAMIO Product Management for more information if using those systems.

4.9.13

Bug Fixes

CAM-2328 Fixed problems with MOS 2.8.5 roElementAction command

4.9.12

New Features

Changes to Asset Manager and LUCI5 Search Operation
CAM-2213/LW-975 - This new feature resolves differences in the way the search function operated in different areas of Asset Manager and LUCI Web. There is now a standardized search functionality described below:
Multiple words in the search box will search for any or all of the words in any order.
Multiple words surrounded by double-quotes will be searched as an exact string match of what is in the double-quotes.
It is possible to mix single words with words in double-quotes such as big “red balloon” which will search for either the string big or the string red balloon.
All matches can be partial word matches, for instance big will match biggest or ambiguity.
Changes to Asset Distribution to improve speed with large rundowns.
CAM-2294 - When working with large rundowns, some users found that distribution of new MOS
Objects to playout devices takes too long. This change gives users the option to prioritize distribution of new MOS Objects.
Open CAMIO’s MOS Management Service config file.
C:\Program Files (x86)\ChyronHego\CAMIO4\MOSManagementService\MOSService.exe.config
Go to the AppSettings section and add or modify the following appsetting to “True” and restart the MOS Service.
<add key="ImmediatelyDistributeNewMosObjects" value="true" />
Ensure Upload Replace Images are updated on the CAMIO Renderer
CAM-2240 - Change is in CAMIO Endpoint 1.1.27 and is included in CAMIO Renderer 1.0.29 Resolves issue with images not updating on renderer after an upload replace. Be sure to uninstall the previous version of Endpoint on the renderer and playout devices prior to CAMIO Render installation.

Bug Fixes

CAM-2327 ENPS Style Reskinning breaks due to wrong RO Name
CAM-2193 Ingest Folder Metadata Dropdown Doesn't Save on First Attempt
CAM-2232 Metadata Category Mapping Works with Images but Not Videos
CAM-2317 Asset Categories Fail to Replicate on Create Asset

4.9.11

New Features

Two Changes to Job Schedule Configuration
CAM-2297 - A ‘Run Now’ button has been added to all jobs to allow the user to run a job as required.

CAM-2217- A “Run as soon as possible after scheduled start is missed” checkbox has been added to the Job Schedule Configuration for each job.
When checked, the job will run if the scheduled run time has passed that day. That could occur if the CAMIO was off during the scheduled run time, or if the job was newly created or enabled.
When not checked, the job will not run if the scheduled run time was missed that day.
This checkbox is checked by default when upgrading CAMIO or creating new jobs. This matches the operation of previous versions of CAMIO.

Bug Fixes

CAM-2184 CAMIO Restarts Force Re-render of the MOS Cache for Replicated Asset Folders
CAM-2188 Upload to CAMIO from Prime don't show category metadata in Asset Manager or LUCI
CAM-2293 LUCI label change using Asset Manager not visible in LUCI4
CAM-2212 Uploaded Media Doesn't Respect Default Thumbnail Frame Setting
CAM-2215 Cannot Download Assets from Spoke CAMIOs in Hub Asset Manager
CAM-2229 Replication status page show MOV files but its working
LW-971 Unable to select camera positions field in LUCI
LW-979 Swap Templates in LUCI5 is not respecting Character Count defined in replaceables for the new template

4.9.10

Bug Fixes

CAM-2216 Fixes known bug in CAMIO 4.9.9 - not replicating from Hub to Spoke
CAM-2224 When Using Export to CAMIO dialog in PRIME, replaceable numbering is incorrect for autofill

4.9.9

New Features

CAM-2190 Add Refresh button to Replaceables Properties area
Refresh button in the upper right corner of the Replaceables Tab in Asset Manager will refresh the replaceables information that may have been updated via replication while this page was open.

LW-972 Add Image View in LUCI to Expand Image.
Hover over an image thumbnail to display the VIEW button. Click on the View button to display a larger image of the asset.

Bug Fixes

CAM-1960 Uploading Scenes from PRIME to CAMIO has no default layer using metadata dialog
CAM-1971 CRD Data Message generation bug
CAM-1980 Character Limit defined in CRD file for PRIME Scene isn't respected when uploaded to asset manager
CAM-1993 LUCI Auto Fill numbering in the replaceables in Asset Manager not respecting sequential ordering
CAM-2086 Replication of Asset Categories and Asset Restriction metadata to Spoke CAMIOs
CAM-2183 When INEWS rundown is unloaded, you cannot advance ISQ PRIME playlist
CAM-2191 Category Group Replication Bug

Known Bug

The 4.9.9 release has a known bug that affects replication. This is due to incompatibility with metadata of older assets in the database. This bug will be fixed in a later release but in the meanwhile it can be fixed by running a diagnostic program. Please contact Chyron Support for help.

4.9.8

Bug Fixes

CAM-1909 Axis Charts not working as CAMIO Movie replaceables
CAM-1916 Category missing in LUCI when updating preview frame of movie
CAM-1929 MOS 2.8.5 mode not working with iNews Item Level Commands
LW-952 Axis Charts not working as CAMIO Movie replaceables
LW-953 LUCI max asset displayed not working in 'Browse Content' view
LW-954 Search results not working unless viewing first page
LW-957 LUCI5 Edit not Showing Layer
LW-963 LUCI Global Filter for Images not working
MediaMaker Utilities 2.0.2.0
This release fixes issues working with CAMIO in https mode, such as when used with Inception and Media Central newsroom system. To operate in HTTPS mode check the checkbox and make sure to enter the CAMIO hostname that corresponds to the certificate instead of an IP.

4.9.7

Bug Fixes

CAM-1888 Change how CAMIO responds to corrupt MOS messages
CAM-1896
LW-944 LUCI config issues installing on a cluster
LW-948 Channel select drop down not showing channel on edited object

4.9.6

New Features

LW-911 Jump Page added to LUCI5 Axis interface so that metadata can be entered prior to going to AXIS.
This is similar to the method used in LUCI4. Title is required, other metadata is optional. Author field will display the logged in LUCI username.

As soon as the user clicks Submit, the deficient asset will be created.

After the Axis composite is created and delivered the asset will be updated in Asset Manager.

Note that the Author name changes from the LUCI username to the Axis username,

Bug Fixes

CAM-1255 Removed the Create New Format button on the Admin Tools > Media Engine Formats page because the create function does not work. This feature will be fixed in a future build.
CAM-1878 Device cache objects not created if context channel assignments are changed while not in an active rundown.
CAM-1886 Category assignments not saved correctly during upload to Asset Manager or Ingest Folders
CAM-1892 Empty Autofill values cause errors in Asset Manager Replaceables Display
CAM-1889 roElementAction operation = "MOVE" with an empty element_target itemId is not working correctly
LW-930 Adding/inserting MOS item LUCI occasionally fails if cursor is still in a text template box due to auto-preview.
LW-932 If CAMIO and INEWS Server is set to Pacific time zone, the ORDER deadline time reports 7 hours in the past in the GUI in the LUCI container - the website itself is OK
LW-933 Rundown View Edit does not return to LUCI properly (white screen)
LW-934 Drag/Drop in Edit Mode creates a corrupt MOS item
LW-935 Slow LUCI5 startup for AXIS users
LW-936 Fixed problem generating LUCI previews
LW-938 Unable to connect to LUCI5 through Mediamaker utilities (editor plugins)
LW-942 Favorites not working for Browse Content
LW-943 Order Status Link Not Working

4.9.5

New Features

Introduced the template type “Automation” specifically for use with Prime Commander.
MOS Service Configuration File
To enable the insertion of embedded data message into the mos object add the following key to mosservice.exe.config app settings and restart the mos service.
<add key="EnableMosXmlExtraData" value="true"/>
CAM-1821 Embed Data Message in the MOS Item
CAM-1847 Commander Template type
CAM-1862 Exclude automation template types from channel selection in camio admin
CAM-1858 Include <properties> in MOS XML
LW-926 Hide channel assignment dropdown for assets of template type "automation"

Bug Fixes

CAM-1859 Reskinning does not work on ENPS (as of 4.9.4)
CAM-1867 Replication replace not working if on different timezone
LW-924 Axis URL should be HTTPS
LW-925 Remove duplicate endpoints from AXIS API which caused connection problems
LW-928 If CAMIO and INEWS Server is set to Pacific time zone, the ORDER deadline time reports hours in the past
LW-929 LUCI5 Saved Items and Favorites not working

4.9.4

New Feature

LUCI Container 5.0.2.0 has been released to support LUCI5 installation with iNews 7.6 client.
.Net Framework 4.8 Install
New LUCI5 version requires .Net Framework 4.8. The LUCI5 installer will install that upgrade if necessary. A system reboot is mandatory after that update. Do not select the ‘reboot later’ option.
The LUCI install will not function correctly if you postpone the reboot.
Alternatively, the system administrator can install .Net Framework 4.8 prior to the CAMIO upgrade if that is more convenient.

Bug Fixes

CAM-1802 Fixed support of roMoveMultiple and roElementAction in MOS 2.8.5
LW-897 Google's SameSite cookie implementation causes mos object creation to fail within LUCI 5.
LW-909 Axis PartnerGateway URL was pointing to the wrong server, intermittently causing long LUCI5 startup times.
LW-910 An empty line in LAF is displayed too narrow in LUCI
LW-919 LUCI first loads the last settings and then loads the content again
LW-921 Change username source in information dialog to the locally stored username to prevent intermittent blank username display.

4.9.3

New Features

CAM-1826 CAMIO Installer should optionally install Media Engine service
Added checkbox to the CAMIO installer to make installation of the Media Engine optional. Note that the default is unchecked. Media Engine requires additional licensing. See CAMIO 4.9.3 Upgrade Procedures for more information.

CAM-1685 Add ‘Delete All’ feature in Context Root Folder
Allows users to delete all assets in a context root folder. It does not allow the option of deleting subfolders. It will notify the user if deleting those assets will affect existing mos objects.

Bug Fixes

CAM-1802 Changing CG items order using MOS 2.8. (Open Media only)
CAM-1823 LUCI Autofill issue with certain text field names
CAM-1831 DataList ShouldReplicate column missing default value on fresh install
LW-817 Drag and dropping text removes text in LUCI5 Container
LW-903 When the plugin is opened for the first time, the filters are not set. (Open Media only)
LW-912 When creating an ORDER using LUCI 5.9.2, if you do not click ADD ITEM, the Order Items will stack then next time you create another order
LW-913 Default sort doesn't stick in LUCI5 when setting to A - Z, always defaults back to MOST RECENT
LW-914 LUCI replaceables corrupted when opening an edit on top of another template
LW-915 LUCI Asset Thumbnails incorrect in detail view when using container

4.9.2

Bug Fixes

CAM-1802 Not correctly processing roItemMoveMultiple from NCS in MOS 2.8.5 mode
CAM-1803 MOS Object creation fails if same image is used in two replaceable fields
CAM-1815 When adding a replaceable text field to a template in PRIME using Upload Replace, LUCI5 is not seeing the new text field
CAM-1816 Asset manager copy asset does not copy category
CAM-1817 When adding a category designation for a template, the default layer resets to “blank”
CAM-1819 Upload to CAMIO from Prime does not work in 4.9.2.6
LW-896 Asset Thumbnails display over Order Status window
LW-899 List of camera positions not complete in LUCI5 when new camera positions are added.
LW-901 LUCI asset display goes blank after uploading and copying a possible bad asset

4.9.1

Bug Fixes

CAM-1803 MOS Object creation failed if the same image file was being used in two replaceable fields.
LW-895 LUCI5 goes to blank/white screen after Axis delivery if the delivery status window is showing.

4.9.0

New Features

New Media Engine Installer
CAMIO 4.9.0 installs a new version of Media Engine along with CAMIO on the CAMIO Server
Not on the Render Engine where it was originally installed.
It installs by default but does not operate unless licensed.
The old software if it exists can be disabled or uninstalled.
Media rendering input and output folders will be moved to the CAMIO Server so other settings may need to be changed.
Media Engine option licensing (5A01838) will now be handled using the CAMIO license dongle.
Requires External Licensing Manager 1.2.1 for CAMIO VM installations.
Prime Support in Mediamaker Editor Plugins
Supports Prime rendering with selected versions of Avid Media Composer, Adobe Premiere and GVG Edius.
Requires updating plugin on editor workstation to Mediamaker Utilities 2.0.0.2
Requires one or more Render Engines and Media Engine option license.
Prime Support in Folder Watcher
Supports Prime rendering with the legacy Folder Watcher workflow.
Note that Folder Watcher input and output folders will be moved to the CAMIO Server.
Requires one or more Render Engines and Media Engine option license
Prime Styles
CAMIO 4.9 supports Prime Styles functionality.
Requires compatible Prime 3.1 or 3.5 and content employing the styles feature.
Define a list of styles per context in Admin Tools that is displayed in LUCI5 drop down.

LUCI Previews and MOS Object Thumbnails will be rendered based on selected Prime Style
ISQ and Automation Playout will be based on selected Prime Style
%y - style value assigned to a Prime MOS Object can be displayed in mosAbstract and ISQ playlist.
Prime Styles Based Reskinning
Select preferred Style per Context for a given rundown.
Copying a story from another rundown will automatically change the Style value.
Prime supports legacy Context based Reskinning as well. Note: cannot apply Context Reskinning and Style Reskinning to the same rundown.
Like with Context Reskinning, the rundown needs to be MOS active to make the reskinning happen.

LUCI5 Saved States
Prior to this release LUCI5 would not save the selected dropdown options if LUCI is closed and reopened in a newsroom system. CAMIO 4.9 now saves the state for each user on a given workstation (IP address).
The saved states are: Style, Context, Category, Filter and Sort.
Saved State information is saved for 90 days from the last time it is updated, per user per workstation.
This expiration can be changed in Admin Tools > LUCI Client Configuration.

There is a clean up script to delete old Saved States that have expired. This script must run daily but the time of day can be changed in Admin Tools > Job Schedule Configuration.

ISQ Pause Count (Lyric Only)
Messages with variable pause counts such as bullet point reveals.
ISQ will display the number of pauses in a message in the grid
When a message is loaded to play the pause count is shown next to thumbnail and counts down as the pauses are released.
There are some important rules to follow in designing the message to make sure that the correct pause count is displayed.
Requires ISQ 3.5.1

IMPORTANT NOTE

Lyric will count all pauses even if they are in conditional transitions because it doesn’t know beforehand which transitions will be played.

An example is a message with both Effect In and Update In. Do not put pauses into such conditional transitions because both sets will be counted even though only one set will play

Bug Fixes

CAM-1228 Admin Tools Create/Edit Popups do not have Scroll Bars
CAM-1677 Camio Services stopping due to license issue
CAM-1690 Can not move Asset Categories up or down in admin tool
CAM-1748 Replication overwriting Display in LUCI checkbox
CAM-1767 CAMIO properties window sits over scroll bar of Asset Manager
CAM-1758 Camera Positions limited to 10
CAM-1770 LUCI 5 shows templates that contain camera input AND output but no template with just one camera
CAM-1774 Cannot add asset categories display index conflict
CAM-1777 Image not updating on playout device if mod date older than existing image and using Ingest folder workflow
LW-853 The divider in the template editor does not behave as expected
LW-860 Render Media Movie from Saved Items does not work
LW-861 Saved Item UI not scaling properly
LW-868 Error in Axis delivered image thumbnail after previewing
LW-873 Default to Mos Object ID if Abstract Unavailable
LW-875 LUCI inside ENPS not showing all content (missing pages)
LW-878 Lyric Template Proxies show transparent area as white
LW-882 Disable Play button when there is no video proxy
LW-886 Yellow and green background in LUCI5 does not work correctly
LW-887 Replace button needs two presses to work if no preview generated
