The Grabber allows the user to broadcast any content from your PC (video call, websites, stream, etc.). The user can share a specific Region of Interest only, a full screen or a dedicated Application.
Session Settings
Grabber supports initializing up to 4 sessions simultaneously so that the user can switch between prepared sessions quickly.

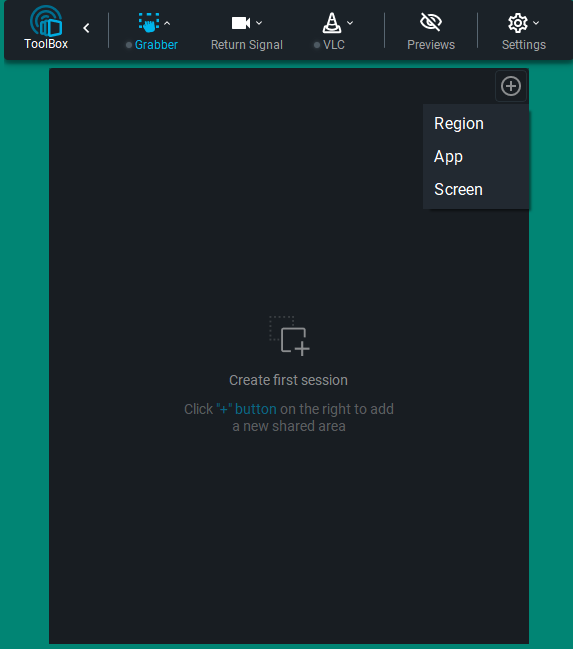

Create new session
Open Grabber and click + button. There can be up to 4 sessions simultaneously, but just one session can be “active”
Region of Interest
Create a “Region of Interest” to share via Toolbox. Simply draw the region on your computer with your mouse.
- YELLOW: Session for this region is not active
- RED: Session for this region is ACTIVE
If you hover over the ROI, a shortcut panel appears (icons explained from left to right):
- Lock: Position and ratio of ROI are locked and cannot be changed
- Settings: Opens settings of this session in main Toolbox UI
- Close: Session will be closed
- Activate: (De-)activate this session
App
Allows to share a dedicated application (application must be “open” at the moment)

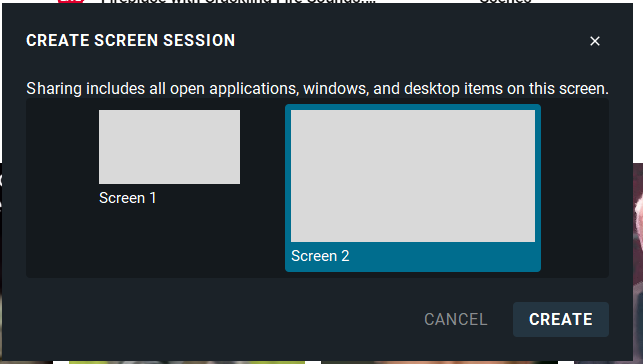

Screen
Share an entire screen.
Session settings

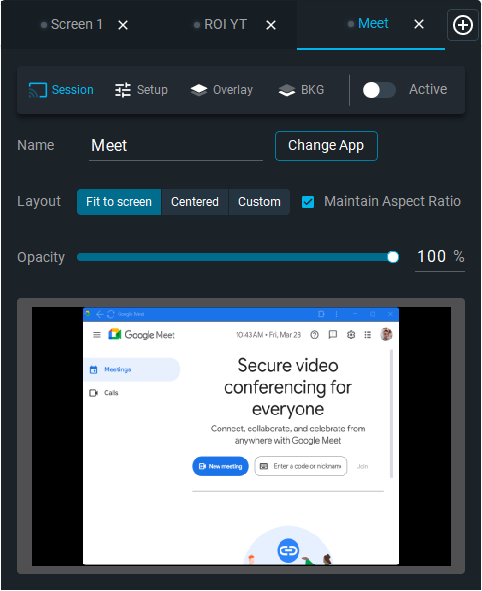

Session
- Name: Type in any name for this session
- Layout: Allows the user to adjust layout and scaling of the grabber signal within output
- Fit to screen: Signal will be adjusted to fit to screen width or height
- Maintain Aspect Ratio: Black bars will be added either left/right or top/bottom
- Centered: Signal will be centered to fill as much screen as possible
- Custom: User can customize position, size and aspect ratio within preview window
- Opacity: Makes signal transparent

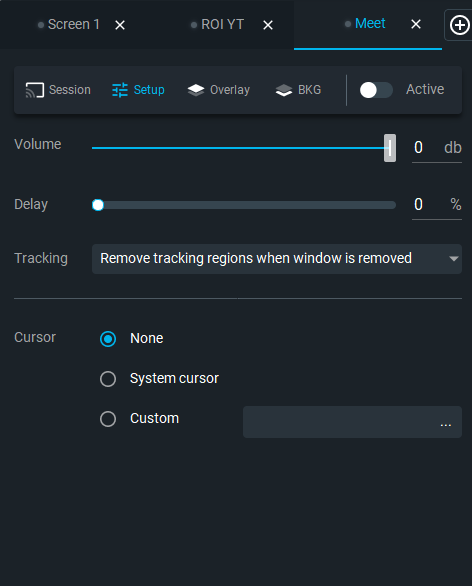

Setup
- Volume: Adjust audio signal for output
- Delay: If Video and Audio signal are not in sync, Audio signal can be delayed; maximum delay (100%) are 3000 milliseconds
- Tracking: Keep / remove region when window is removed
- Cursor:
- None: Cursor does not appear in signal output
- System cursor: Normal cursor will be visible in output
- Custom: Cursor will be visible in output as an custom image of your choice

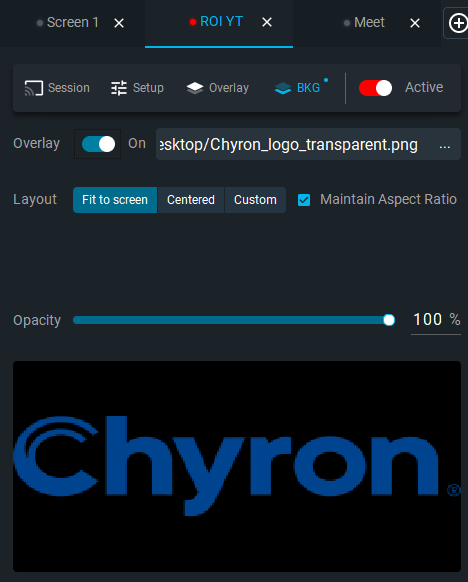

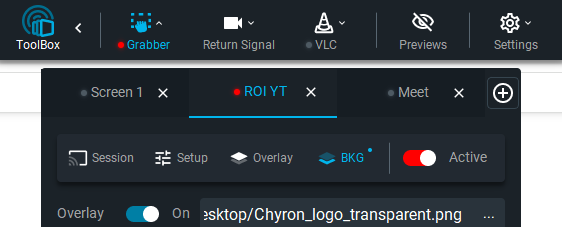

Overlay

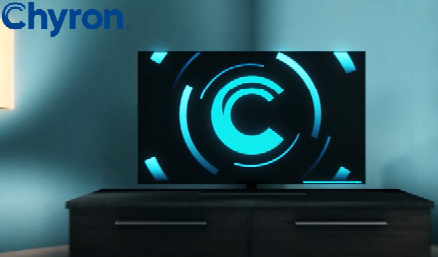

Overlay: Select an image or icon and position it anywhere on your output

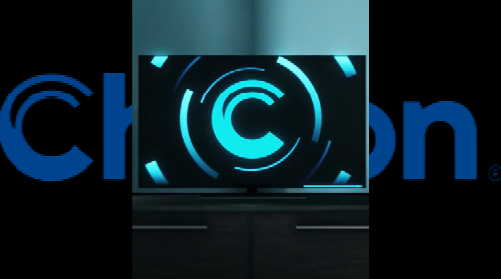

Background (BKG)
Background image will appear behind the selected ROI, if output does not fit entire screen
