Settings combines main settings for output / input signals.
- Version number: Version and build number of current installation ("4.0.1+123")
- Quit Toolbox: Closes Toolbox

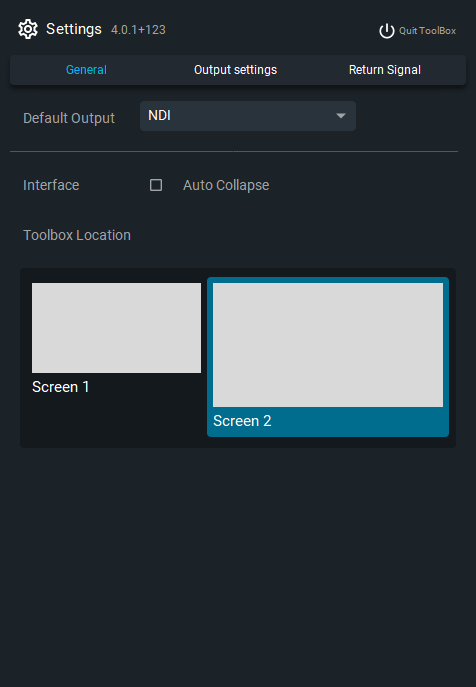

General
- Default Output: Select any of the available outputs
- Auto Collapse UI: Minimizes Toolbox UI automatically
- Screen: Select on which screen Toolbox shall appear on start

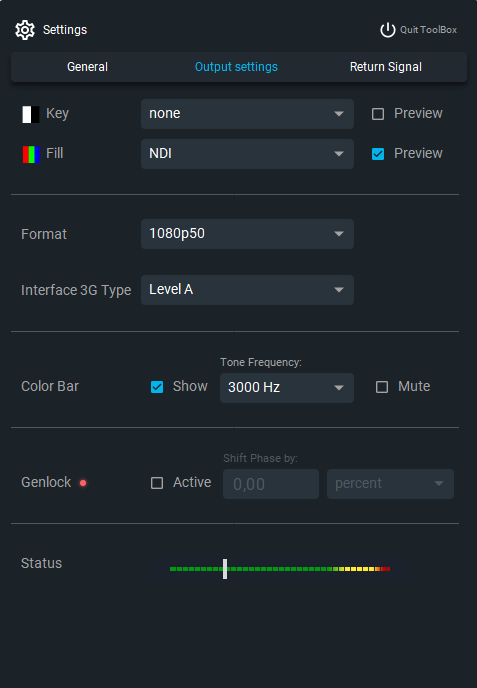

Output Settings
- Key / Fill: Opens key/fill settings for operator checks
- Format: Select output format
- Interface 3 G Type: Level A or B can be selected for 1080p formats -> this setting also applies for Return Signal Input
- Color Bar: "Show" enables color bar in output if no session is active. Otherwise output will be black. Tone frequency can be muted or changed
- Genlock: If genlock is not automatically supported by output hardware, genlock should be enabled
- Shift Phase: Gives broadcast engineer the opportunity to switch offset
- Status: Indicator for CPU usage on current PC. As soon as status bar enters the yellow area, frames might be dropped in output.
