04: During the Races

⏱️ 10 to 5 minutes before each race

🅾️ Check transponders

Verify transponder functionality:

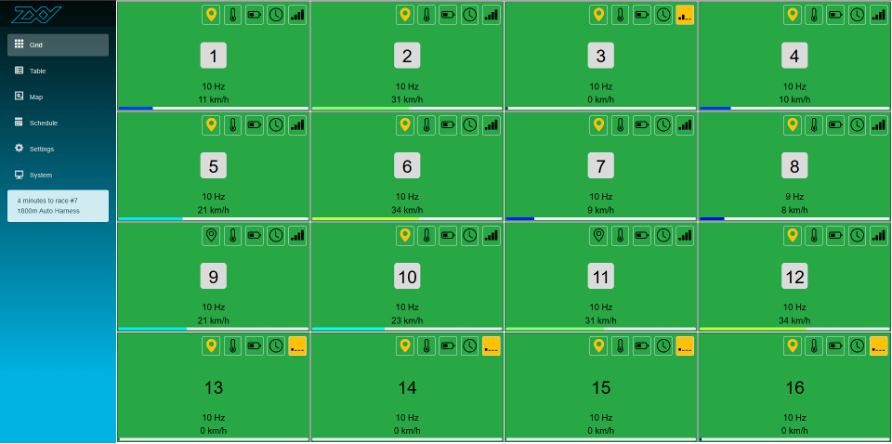

1. Access the Grid View within ZXY Transponder Info.
2. Each cell signifies a Transponder.
3. Cells displaying a horse icon represent Transponders designated for the upcoming race.
4. Confirm all active Transponder cells are green.

⏰ For each race

🅾️ Monitor race

Continuously monitor status indicators:

• Connection State:
  • • Green: Connected
    • Red: Disconnected
• Transponder State:
  • • Green: On the track (data detected)
    • Yellow: Not on the track
    • Red: No data
• Race State:
  • • Green: Race detected
    • Yellow: Race upcoming
    • Blue: Race finished

Verify that the races are detected automatically.

• If not detected, start manually.
