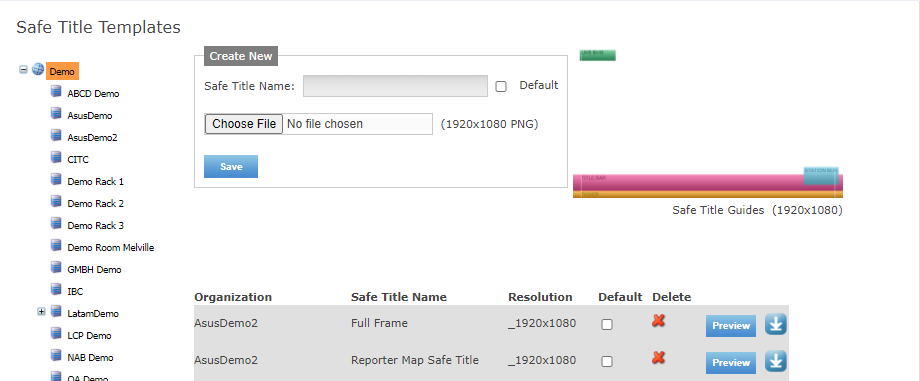

5.1 Safe Title

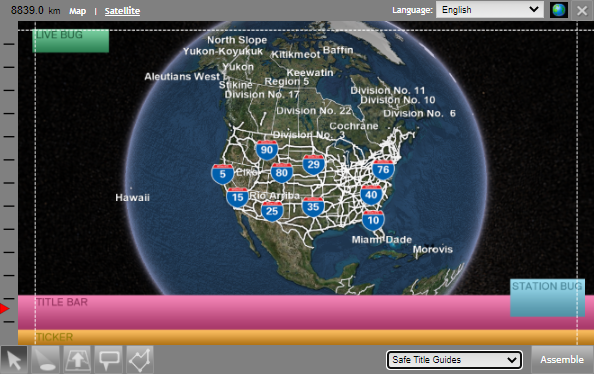

Maps Superusers at the Group and Station level can define Safe Title Templates for users in their organization and below. Safe titles are used to guide users to avoid areas that will be masked by other graphics such as station logos, lower thirds and such.
Safe titles are uploaded as PNG images with alpha. They should be the resolution that matches the Maps format (1920x1080 or 1280x720). One of the safe titles can be selected to be the default tha users see when they first log in.
5.2 User Settings

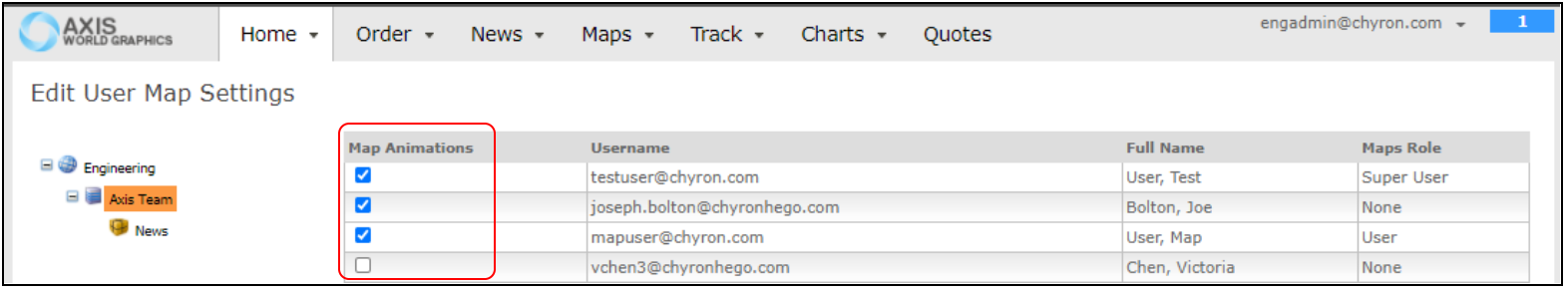

Maps Superusers can enable Maps Animations for users in their organization and below. This depends on the Group having Maps animations enabled at the Chyron Admin level. As shown below, check the Map Animations box to enable a user to create Map Animations.
This depends on the Group and/or Station having Charts animations enabled at the Chyron Admin Level. The Auto Delivery feature for Maps animations is also enabled or disabled at the Chyron Admin Level.

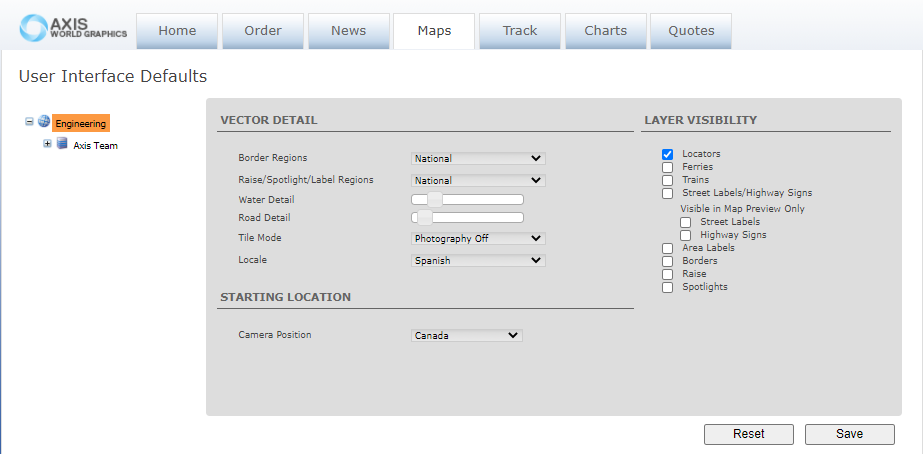

5.3 UI Defaults
Maps Superusers at the Group and Station level can define the UI defaults for users in their organization and below.
Note: more detailed configuration of the Map look are configured by a Chyron System Administrator.
This will preset the corresponding options in the Maps UI when the user first logs in.
