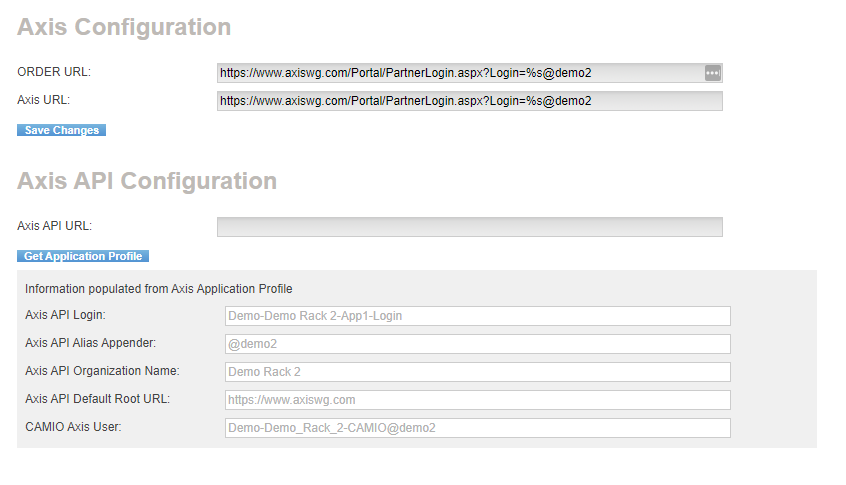

8.1 AXIS Configuration
CAMIO > Admin Tools > Axis Configuration
This dialog is required to direct LUCI to the proper Axis URL’s. This is required for LUCI4 and LUCI5. Note the %s@demo2 appender which is the organization name which CAMIO system will connect to. In most cases the organization name will be a station not the group. The group name is only used if there is a CAMIO located at a group level graphics hub.
8.2 Axis API Configuration
The API Configuration is required to enable CAMIO > Asset Manager > Replaceables Tab to link Prime and Lyric templates to the appropriate Axis Template.
See the "AXIS API Configuration" guide for detailed information on generating and installing the API Key is found on this document.

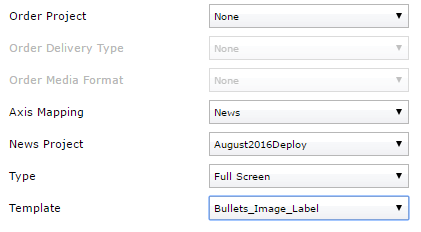

8.3 Axis Mappings
CAMIO > Asset Manager > Replaceables Tab
Used to map a Prime or Lyric image or movie template to an Axis template.
There are two sections for Axis Mappings, that of Order and Axis News, Quotes, Charts, and Maps. A field can be mapped for both Axis Order fulfillment or Axis News, Quotes, Charts, or Maps fulfillment.
This mapping aids producers by taking them directly to the appropriate and correct template when they choose to build a graphic from LUCI5.
Order Project/Delivery Type/Media Format - this will route users to choose the exact appropriate order format.
The other Axis paths include:
- News Project/Type/Template
- Quotes Project/Style
- Maps Project/Style
- Charts (without a Project or Style)
Axis project parameters much match those configured in your Axis account. Contact Chyron Support for help in configuring this section.
