03. PRIME VSAR: nDisplay integration

nDisplay integration allows the use of HDMI / DisplayPort output for VSAR with the use of Cesium Camera.

nDisplay Setup

nDisplay Requirements:

Nvidia Quadro Sync II
Cat-5 or Cat-6 RJ45 cables. (for multiple machines)
BNC cable for genlock
DisplayPort to HDMI convertor (only for HDMI)

Sync setup

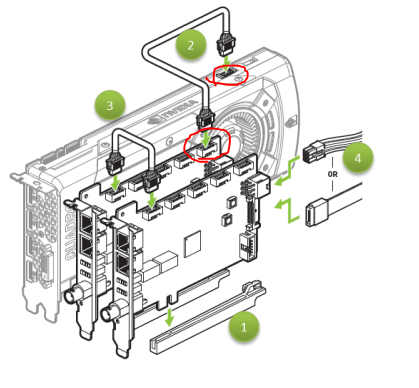

Nvidia Quadro Sync II needs to be installed in the PCIe slot on the motherboard and connected with appropriate cable to the Nvidia GPU. for more information see more at Quadro-Sync-II user guide

The cable should come with the Nvidia Quadro Sync II, Nvidia GPU has the ports for the Quadro Sync II connection at the top; they usually have plastic cover that needs to be removed to uncover the ports and connect the according the Quadro-Sync-II user guide

After the cable is properly connected to the GPU. We need to connect the genlock signal using BNC cable to the spigot.

after the connection is correctly connected make sure to install the the Quadro sync II Driver (the link is for windows 11)

For multiple machines:

Frame Lock: connected to the Cat-5 or Cat-6 RJ45 cables according to the Quadro-Sync-II user guide, make sure to use direct connections without any TCP/IP hardware in between. Coming from the master machine going into the client machines.

External Sync only: connect each Nvidia Quadro Sync II to genlock source and set them up all with external sync source.

‎

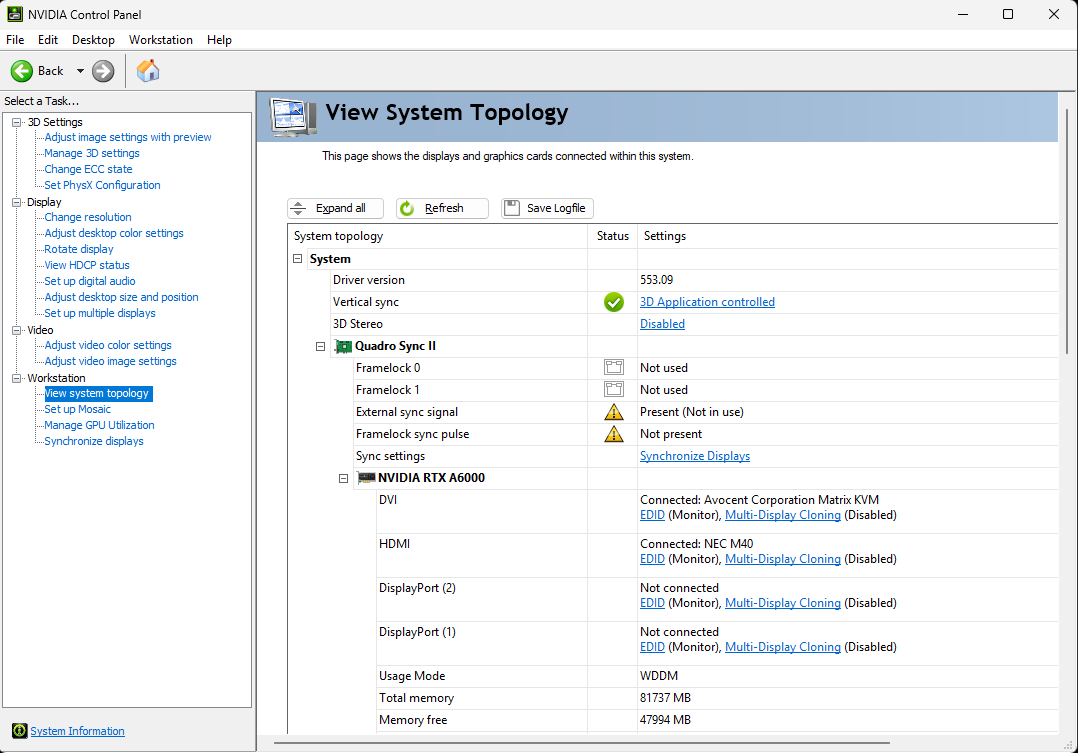

when properly set-up on master it should say “External Sync signal: Present (Not in use)”

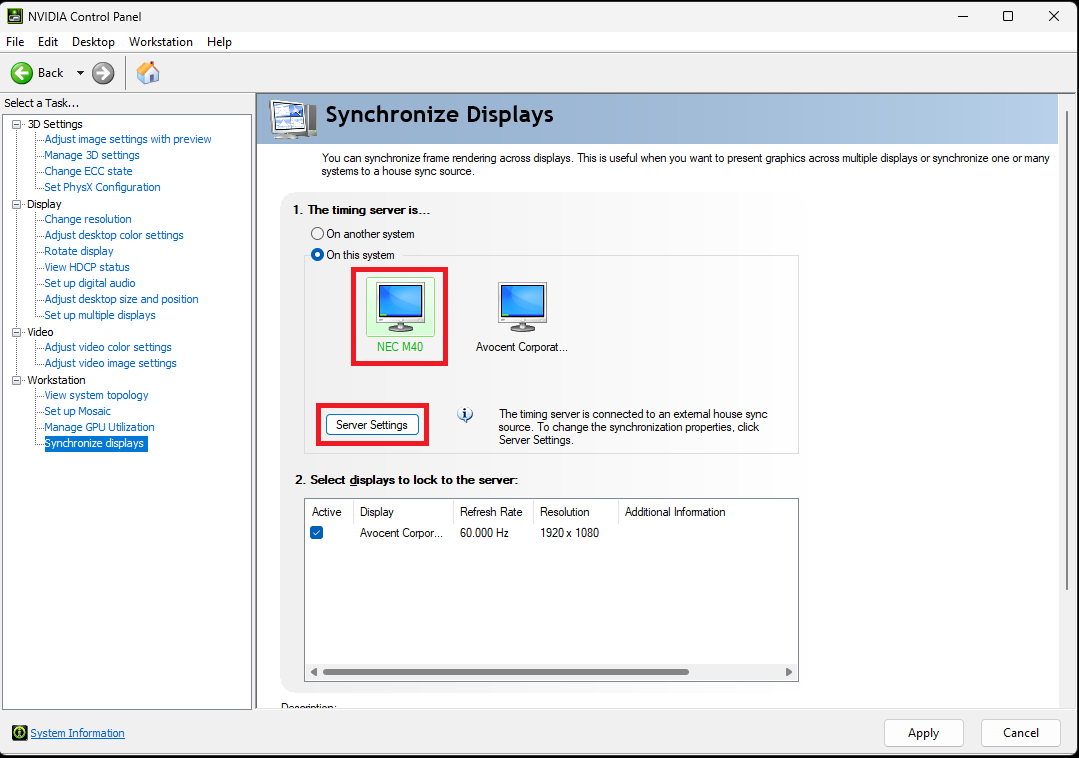

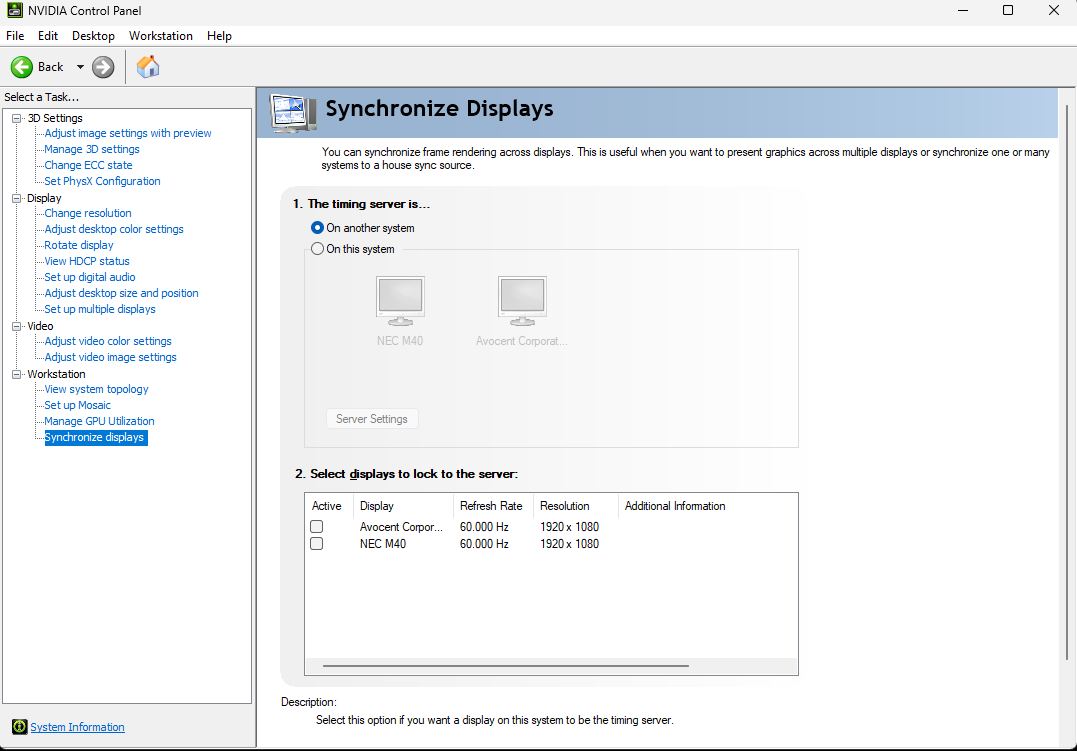

go to Synchronize Displays

Select On this system

Select the Main Display and click the Server Settings

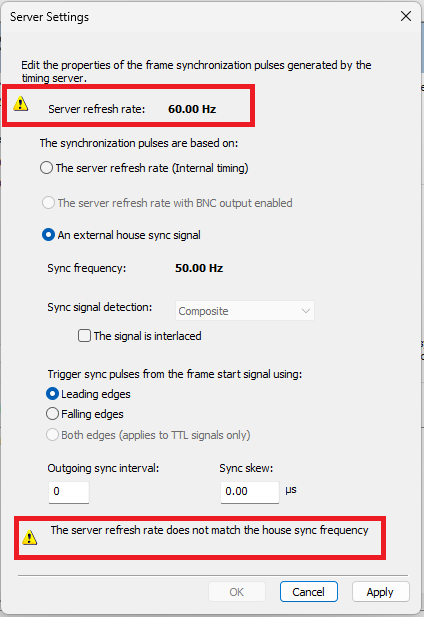

if you see that the external sync frequency does not match

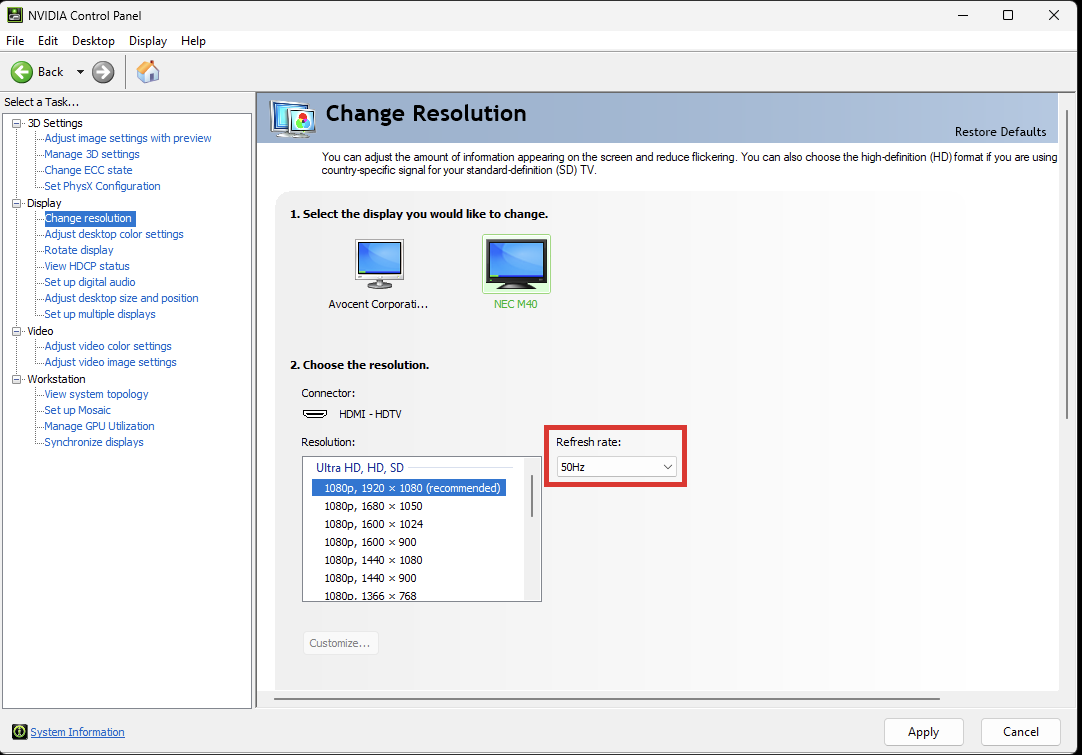

you can fix that by going into change resolution -> refresh rate

⚠️ when you experience blinking of the windows try restarting the display

make sure click Apply

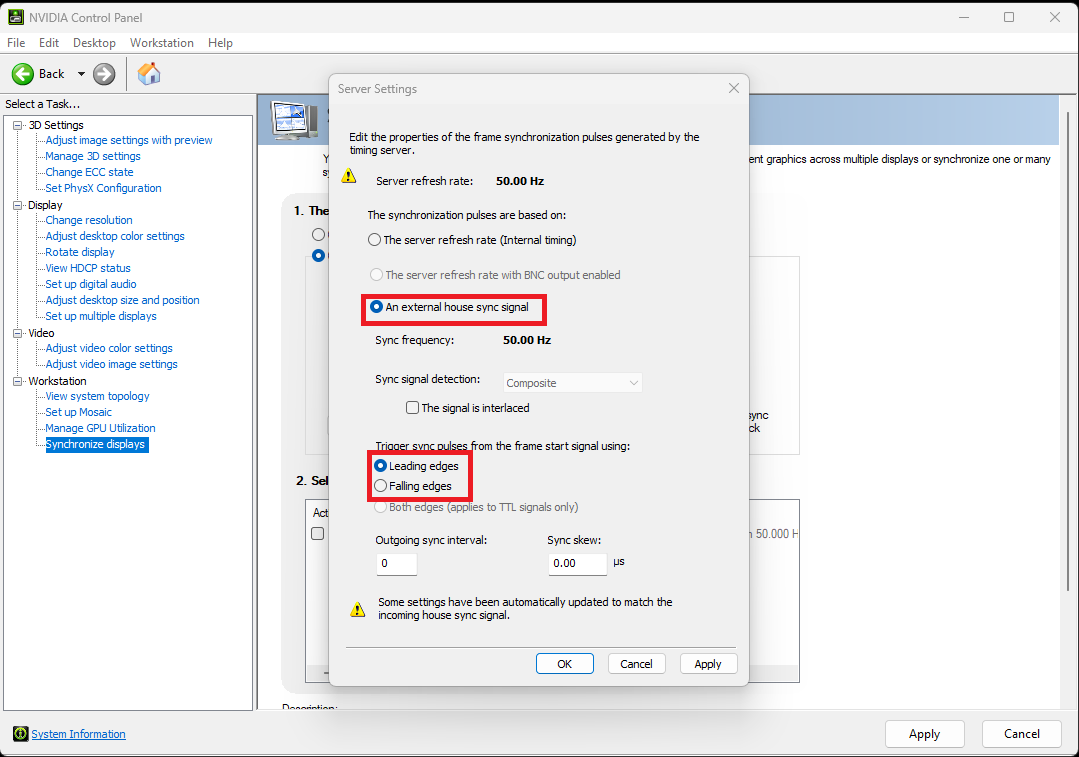

select the An external house sync signal and select the Leading/Falling edges depending on the genlock generator.

click Apply

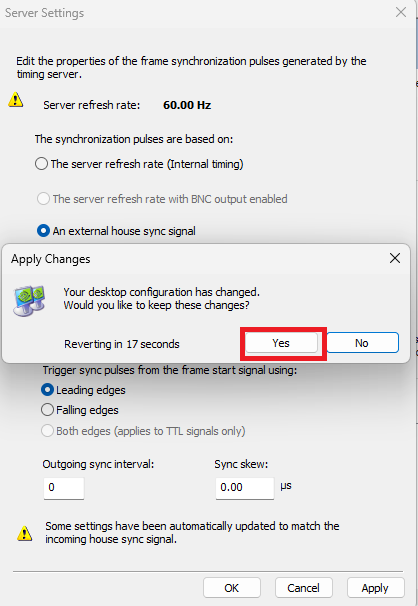

make sure to confirm the setting

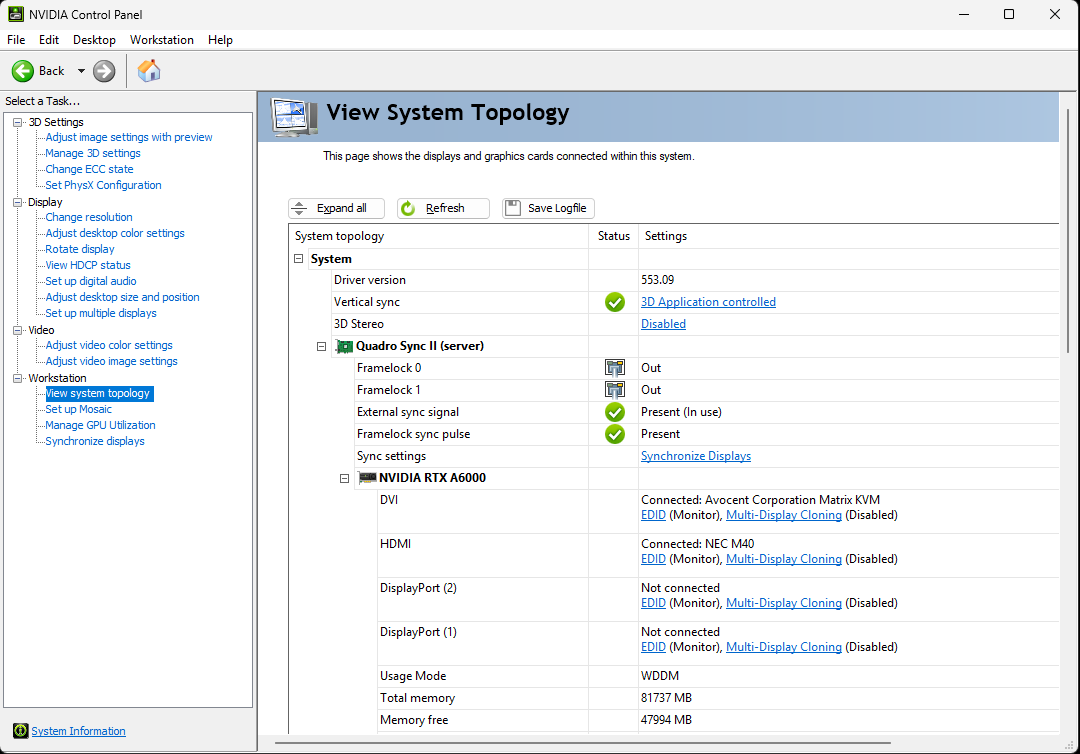

when the genlock is actively in use it should say “External Sync signal: Present (in use)” (may not necessarily mean that all configuration is correct just that it is used)

‎

Enable Plugins

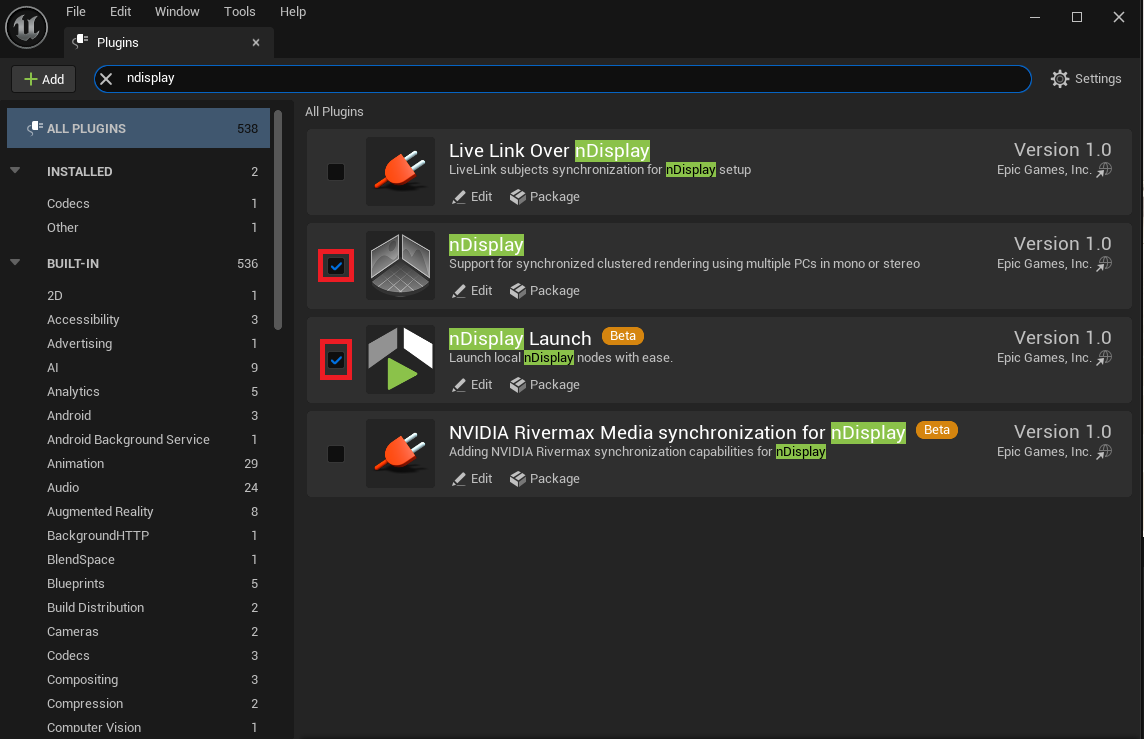

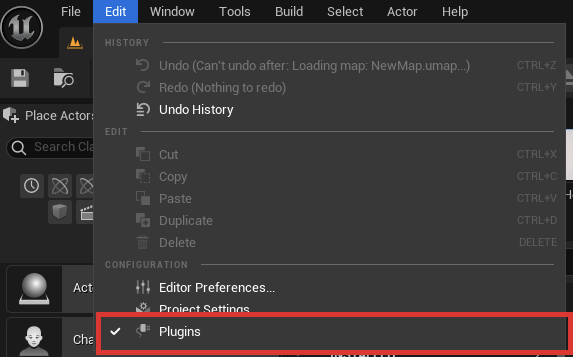

Open VSAR in Edit -> Plugins

search for nDisplay and enable nDisplay and nDisplay Launch

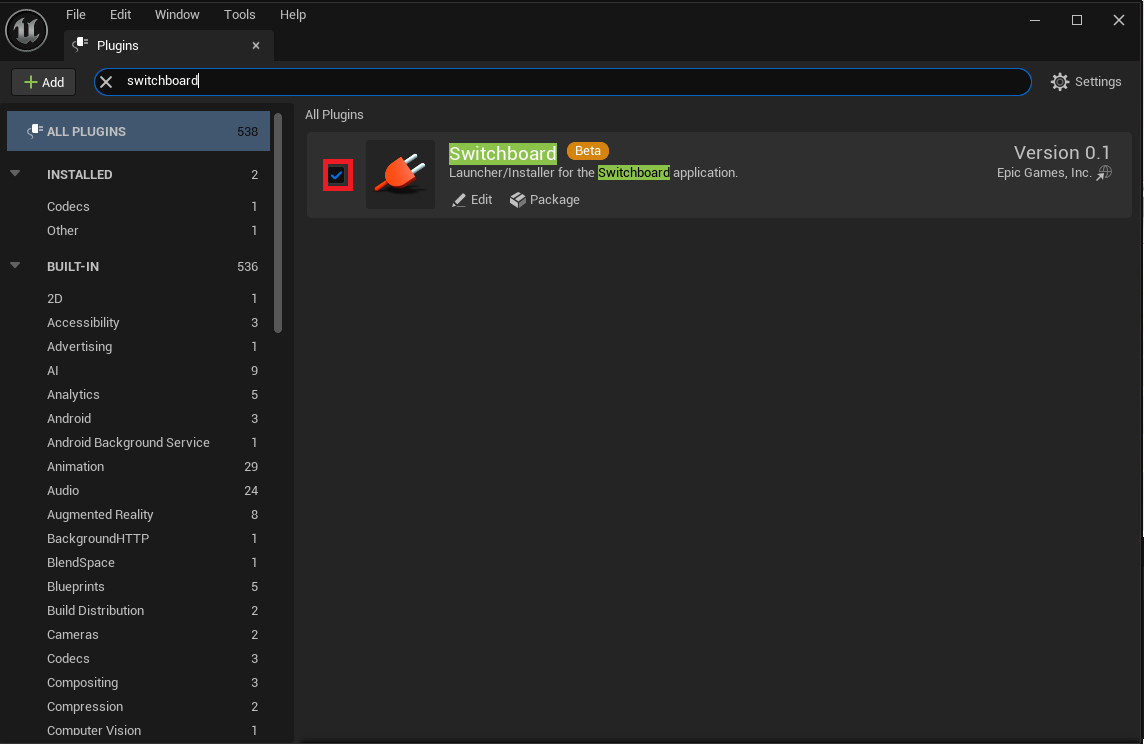

search for switchboard and enable it

you may need to restart VSAR
‎

Render target

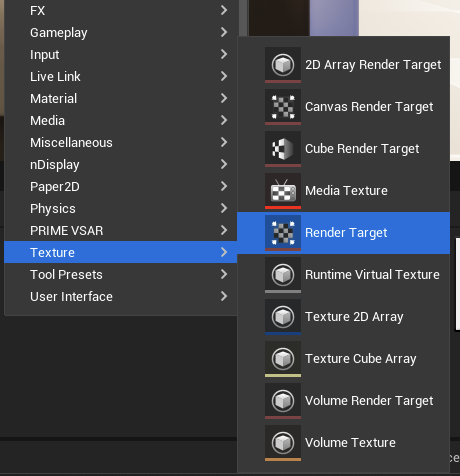

Cesium Camera is using the render target as intermediary between Cesium Camera and nDisplay. Create Render target by Right click in Content browser and select Render target.

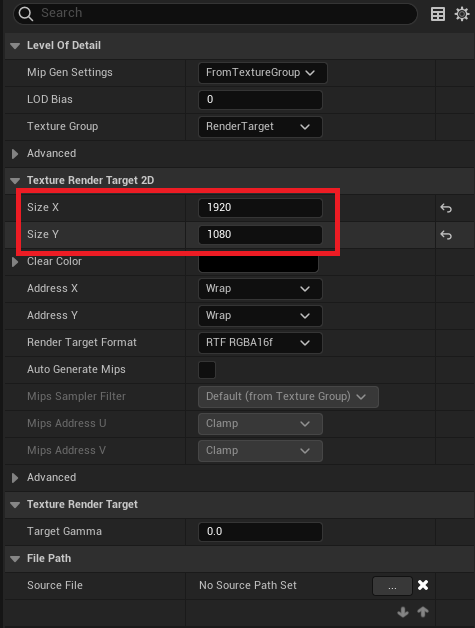

double click on the Render target asset and set the Size X, Size Y to use custom resolution

Create one for each Cesium Camera that should have HDMI / DisplayPort as output using nDisplay.

nDisplay config

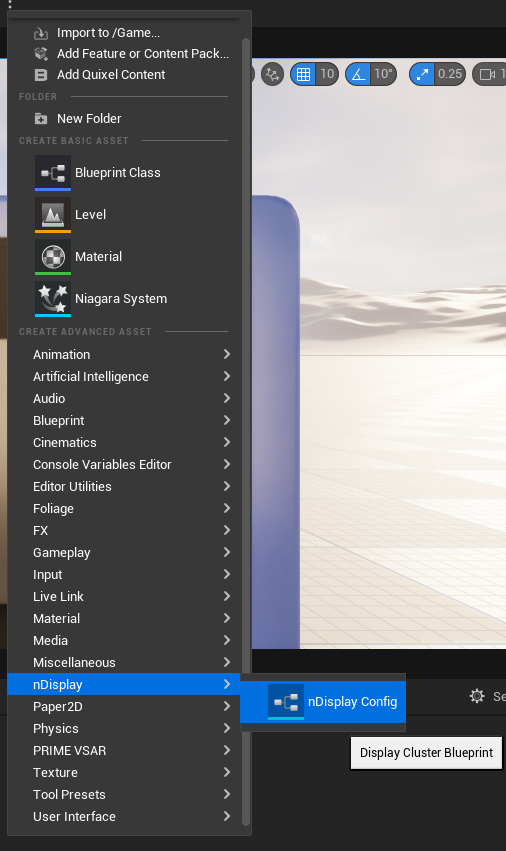

Create nDisplay config asset in Content browser, Right click in Content browser and select nDisplay config under nDisplay -> nDisplay config

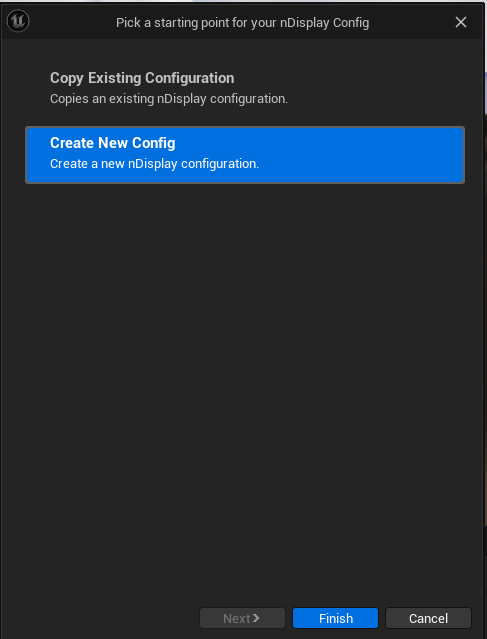

create new config

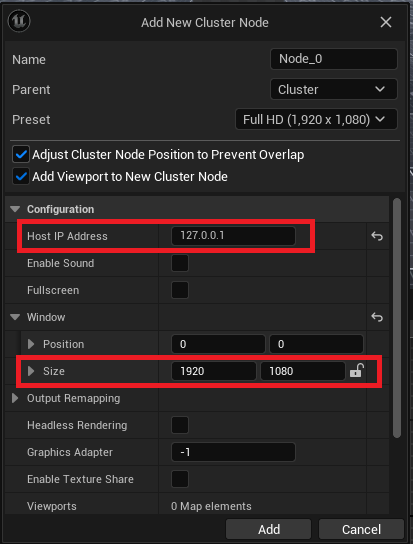

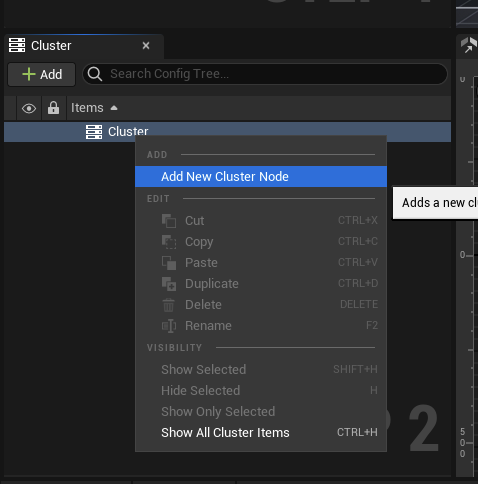

Add New Cluster Node

Set the Host IP Address if Cluster Node is not a local host (127.0.0.1). You can set your custom resolution in the Window -> Size, this is the size of all displays connected to the system.

Note: Max size is 8192 x 8192 but it can be increased by DC.OverrideMaxTextureDimension

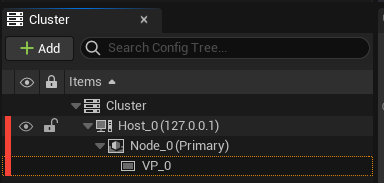

this should created VP_0

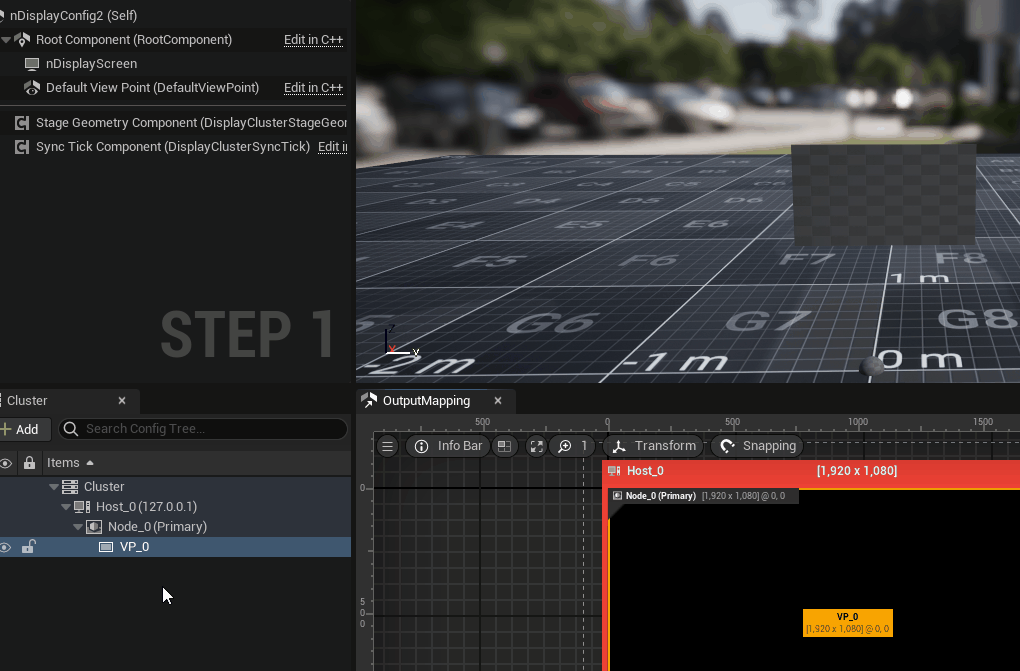

Drag and drop VP_0 to the nDisplayScreen

When using custom resolution make sure to adjust the nDisplayScreen size in the details panel under Screen Size -> Size

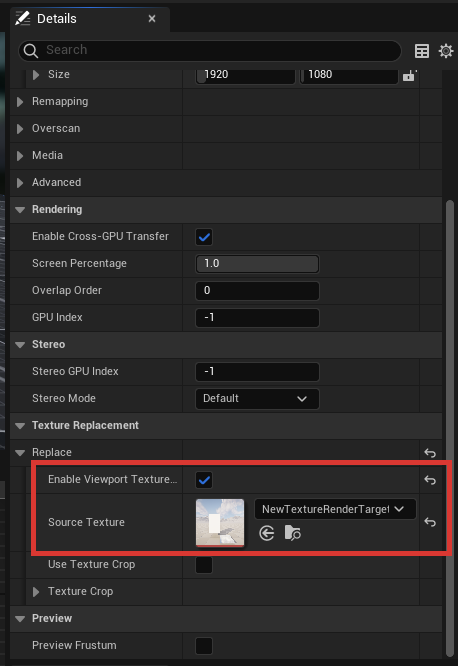

Select the VP_0 in details panel set Replace -> Source Texture to the render target created before and make sure the Enable Viewport Texture Replacement

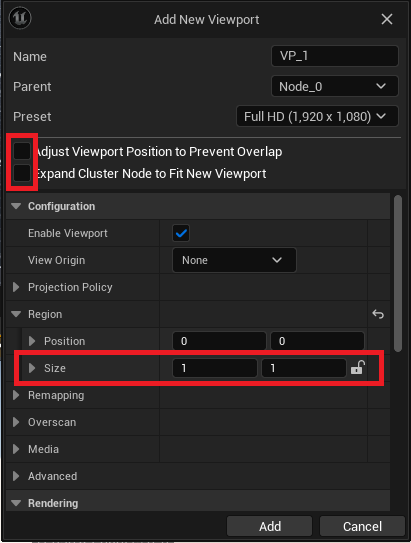

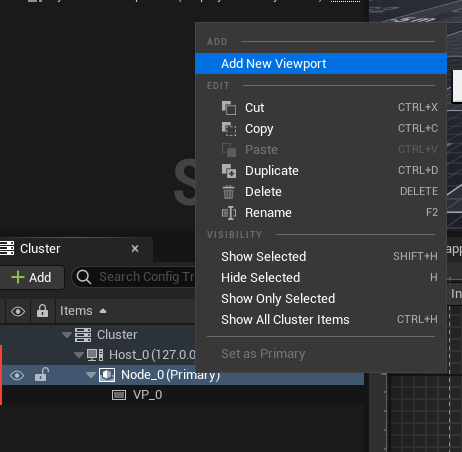

Add second viewport (per node) that the sole purpose of it is to have a valid Viewport due to deferred rendering requiring a valid Viewport (this requirement may be removed in future releases)

with the size of 1x1, we wand the viewport to be as small as possible, and uncheck the adjust Viewport position to prevent overlapping and expand cluster node to fit new viewport.

Make sure to also drag and drop the this Viewport on the nDisplayScreen

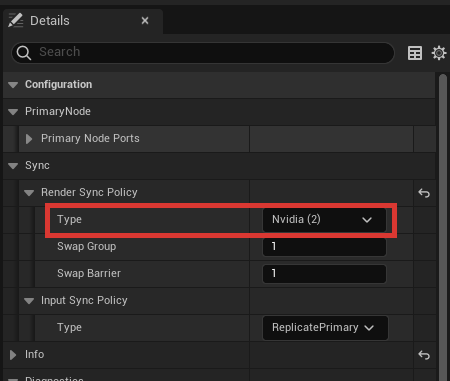

Select Cluster in details panel under Sync -> Render Sync Policy -> Type select Nvidia (2)

📝 for the Nvidia sync to work correctly it requires the display resolution to much the display resolution, also it does not work properly when application is out of focused or remote desktop user is connected (example: TeamViewer user is connected ).

Save and Compile

drag and drop the nDisplay config asset to scene (level)

‎

Multiple display setup

On system with multiple displays you want to set main Node for Main Display as the nDisplay window(s) appears on the Main Display, for secondary display you want to add additional Node set it up same as the first one and then use the Nvidia mosaic to map it to the proper display.

Interlaced display

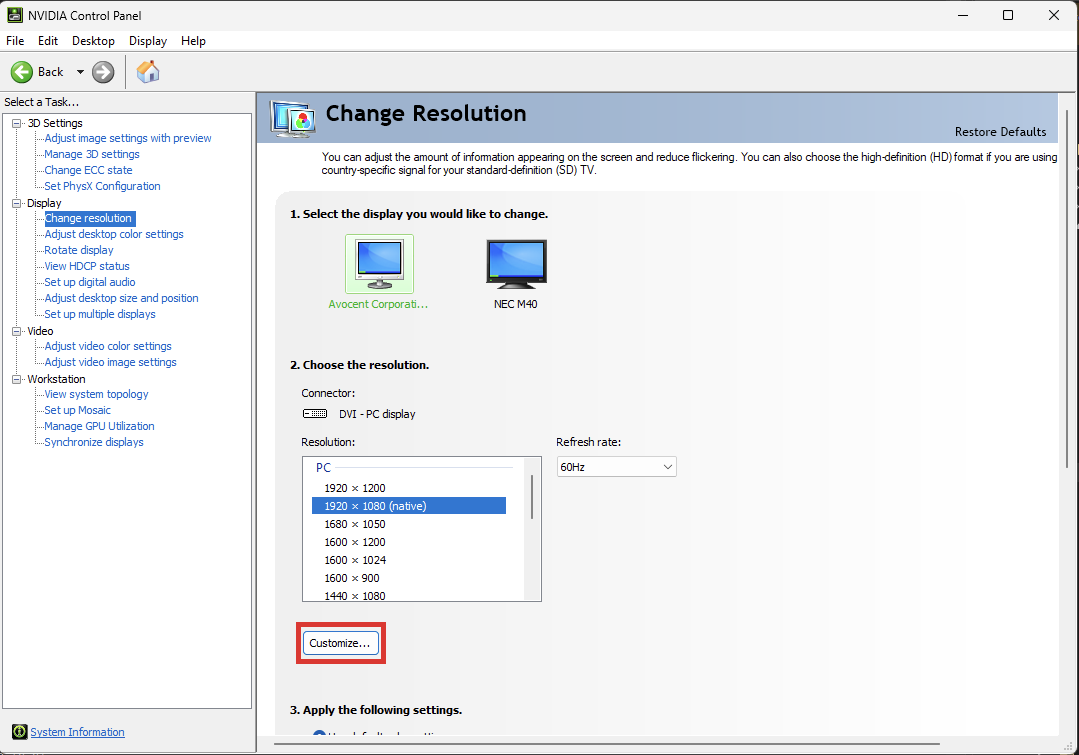

If your specific use case requires interlaced output you can enabled that for the display in the Change resolution -> Customize

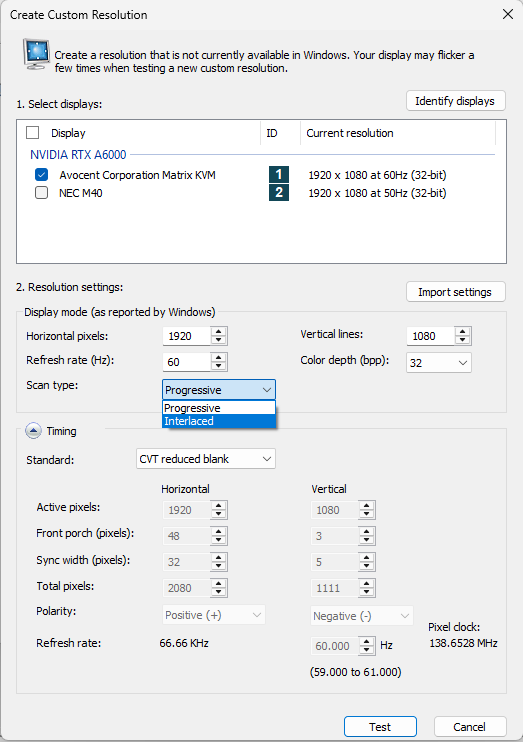

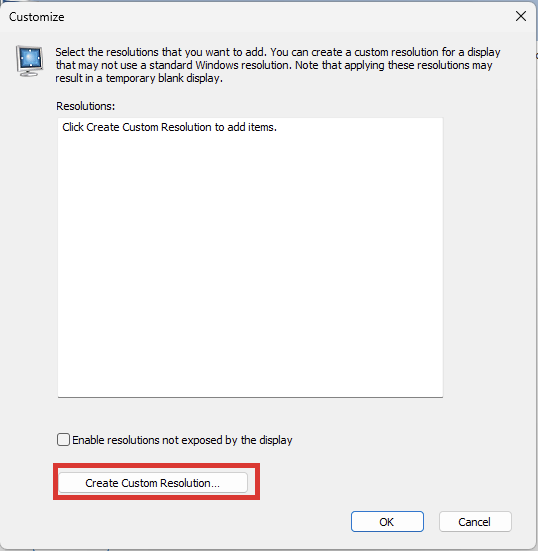

Click the Create Custom Resolution…

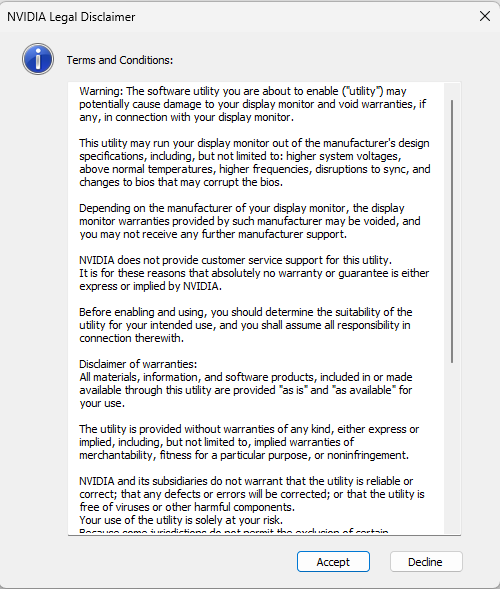

Accept the Legal Disclaimer (make sure you know what you doing)

Select the correct display

In the Scan type you can select Interlaced

‎

Cesium Camera Output

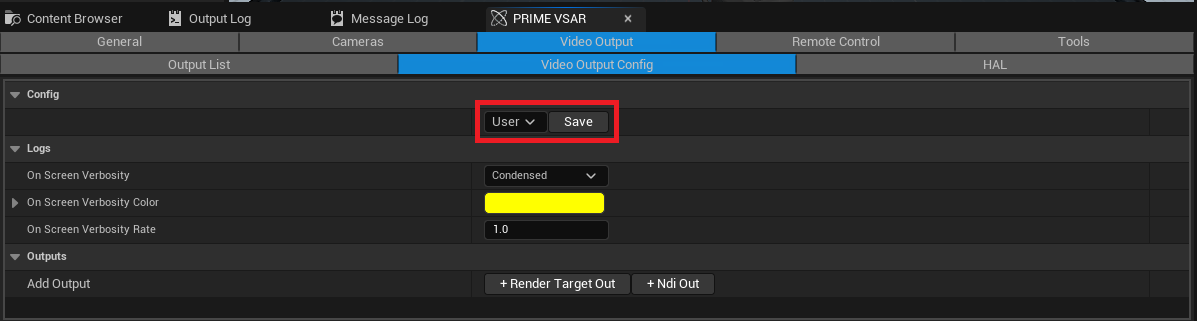

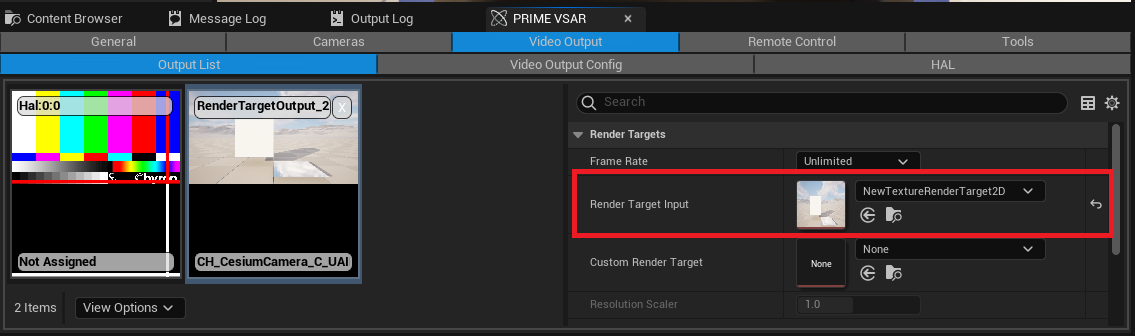

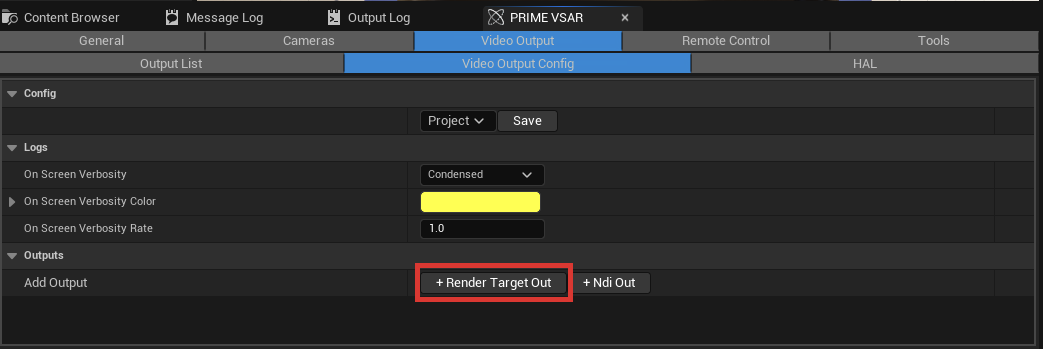

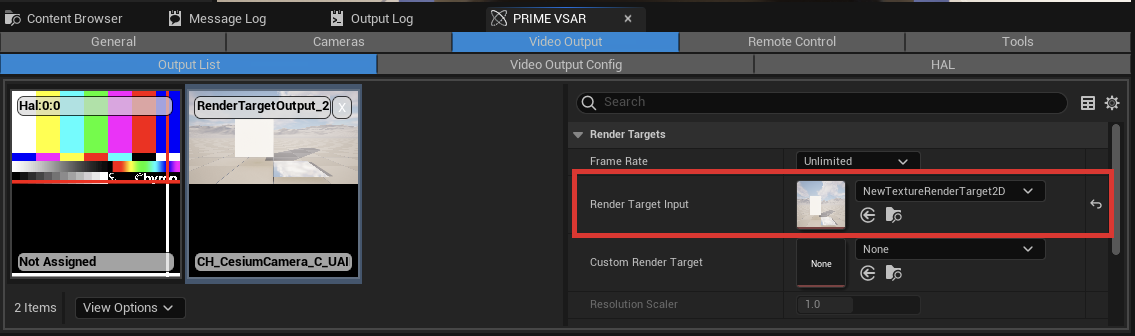

in PRIME VSAR config add Render Target Output

Set the Render Target input to the before created Render target

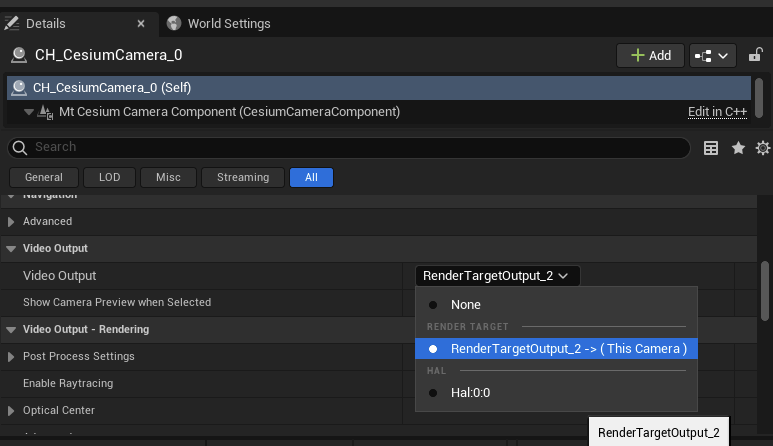

In the corresponding Cesium Camera in details panel select in the Video Output -> RenderTargetOutput

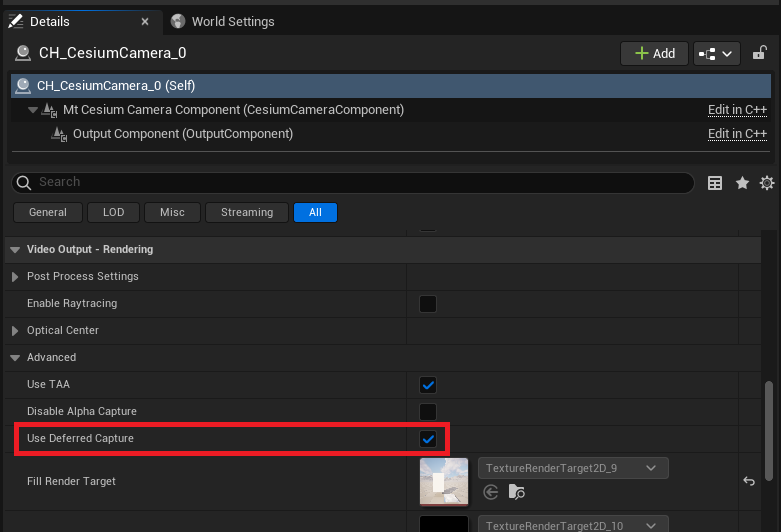

Make sure that the deferred capture is enabled under Video Output - Rendering -> Advanced -> Use Deferred Capture

Make sure to save the output configuration

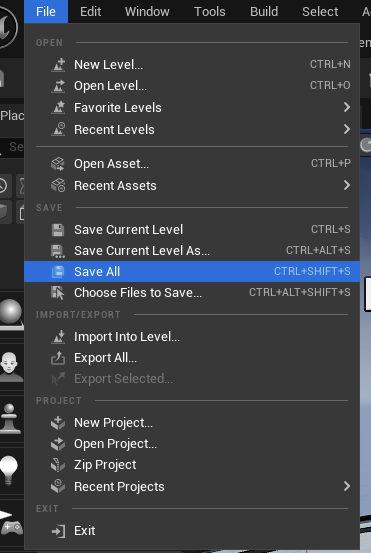

Make sure to Save all

‎

Launching nDisplay

While launching nDisplay it launches a standalone application that may take some time to boot up and will appear black while it is loading.

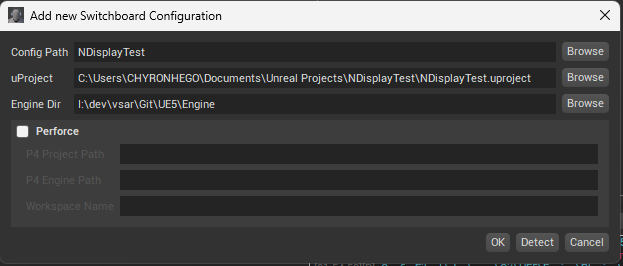

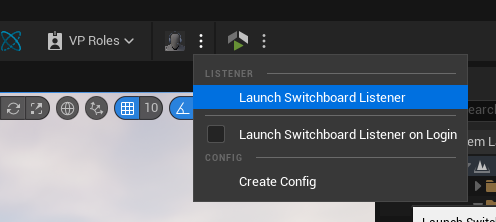

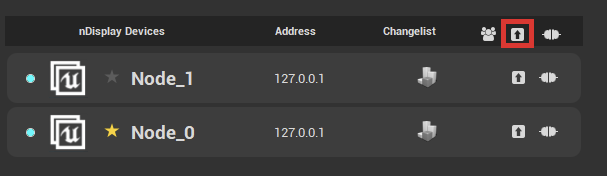

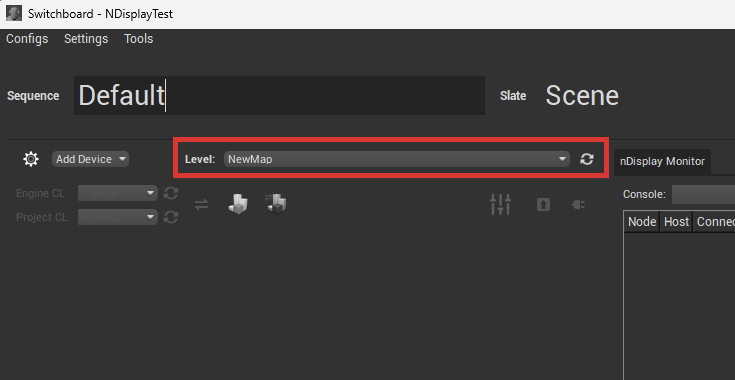

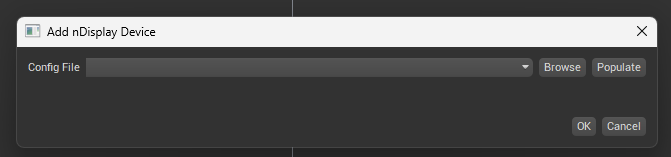

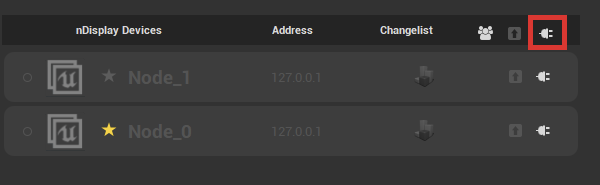

There are two main ways to launch nDisplay configuration:

using Launch nDisplay

It requires nDisplay config to be in the scene. When using Launch nDisplay the Editor can consume SDI inputs/outputs due to the Editor and standalone application having the same settings.
