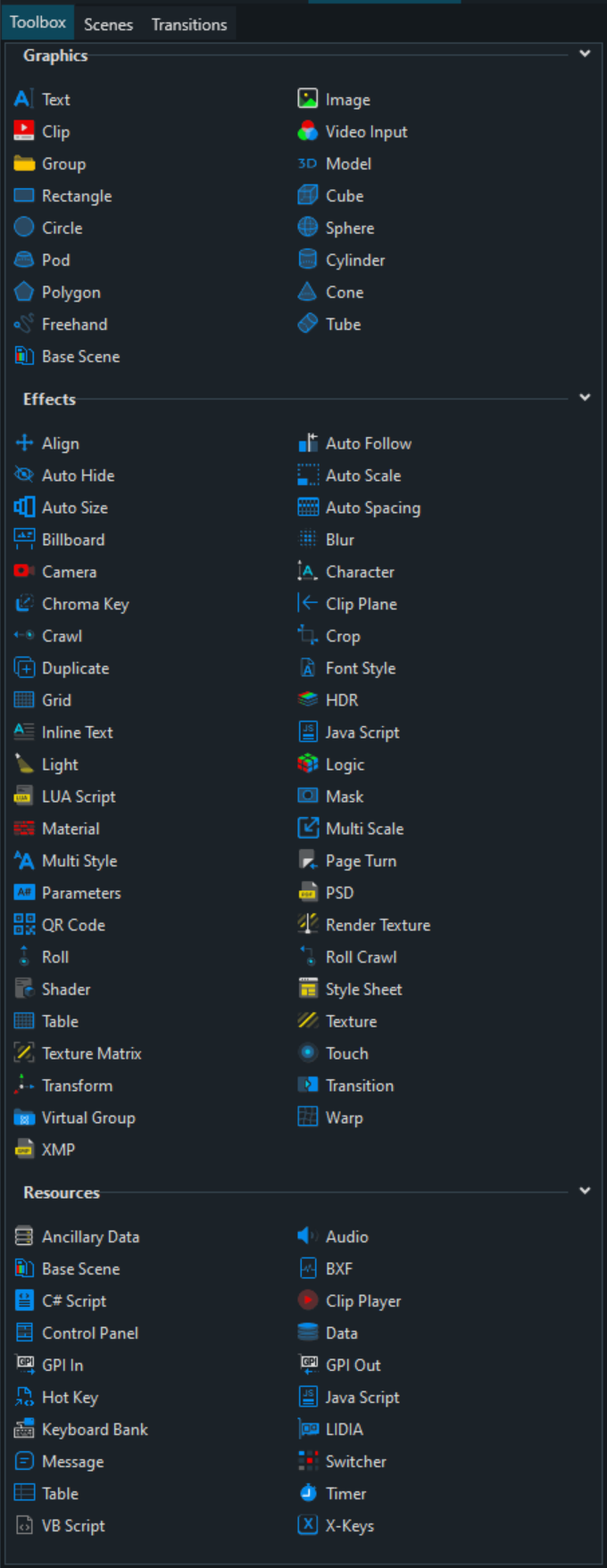

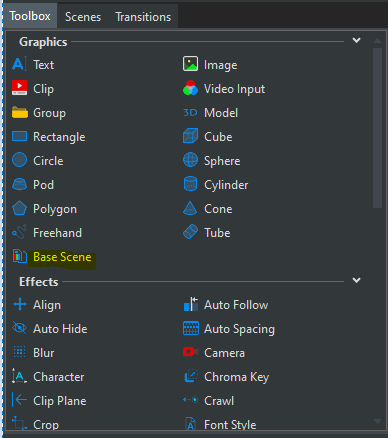

12: Scene Objects (5.4 DRAFT)

• Planar: UV coordinates projected linearly by a plane.
• Polar: U is angle, V is distance from center.

Clip Object

Render properties

The Render subcategory includes:

• Projection: Projection mode. It is method how to map 3D objects to 2D screen plane.
• Orthogonal: Orthogonal projection.
• Perspective local: Central projection. The mid-point of projection is affected by an object.
• Perspective global: Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera: Projection in line with an external camera.
• Camera lens: Special kind of projection in line with an external camera. Only the lens are tracked, it means just projection. The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset: Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.
• Projection Center: Center of projection. (Position on the screen where all lines meet in infinity.)

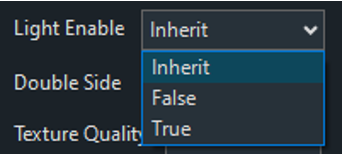

• Light Enabled: Enable use of lights. Applies only to object with generated normals. ‎This feature is ignored when using shaders.
• Double Sided: Double side visibility.
• Depth Function: Function for making decision whether it will write to scene according to z-buffer.
  • OFF - Disabled writing to depth buffers. ‎Suitable for flat object which doesn't collide with any other objects.
  • ON - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
    • ‎Default value.
  • ALWAYS - Fragment is rendered always independently of depth buffer.
  • NEVER - Fragment isn't rendered ever.
  • EQUAL - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
  • EQUAL - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
  • NOWRITE - Similar to option "ON" with difference of Stealth attribute.
    ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
  • GEQUAL - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer.
    ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!
• Priority: Rendering priority within a layer. The higher number the later the object gets rendered. Use with care! Rather use Position.Z instead. ‎The priority change doesn't work well if objects use depth buffer.
• Texture Quality
• Texture Wrap

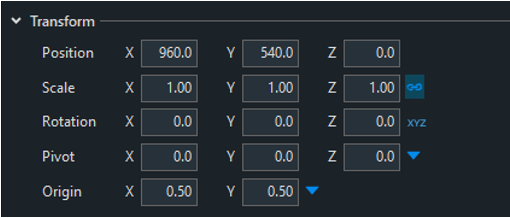

Transform Properties

The Transform subcategory allows for the manipulation of the Clip Objects Position, Scale, Rotation and Pivot along the XYZ axis.

To keep the Scale Aspect fixed to its current dimensions, click the lock icon to Lock Aspect Scale.

Position: Position the object in X, Y or Z Scale: Scale the object in X, Y or Z Rotation: Rotate the object in X, Y or Z Pivot: Move the Pivot Position of the object in X, Y or Z Origin: Move the Origin Position of the object in X, Y or Z

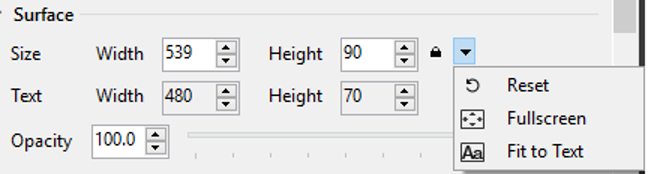

Surface Properties

The Surface subcategory includes:

• Size Width
• Size Height
• Opacity

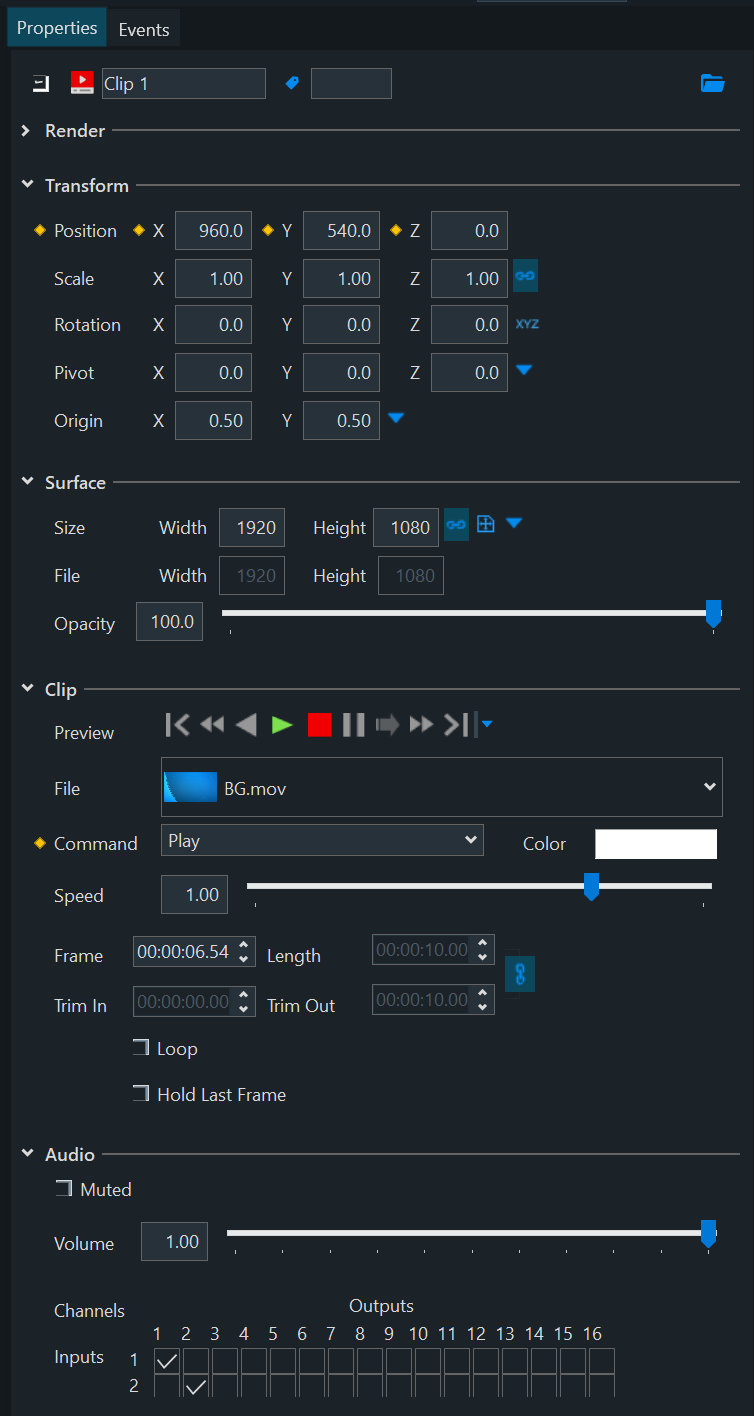

‎Clip Properties

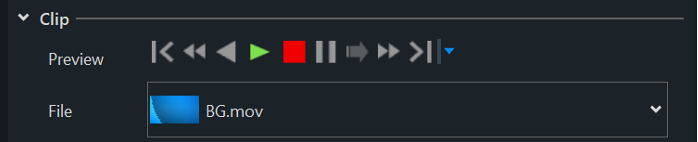

The Clip subcategory includes:

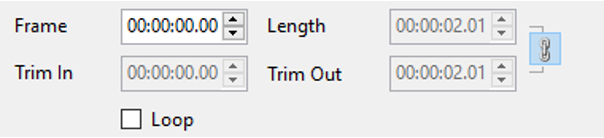

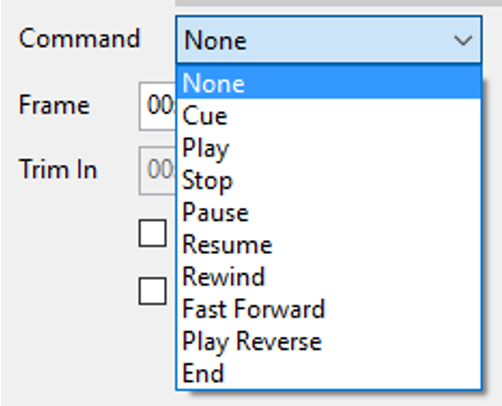

File: Clip file name Command: None Cue Play Stop Pause Resume Rewind Fast Forward Play Reverse End

Clip Events

There are a few ready to use events Finished Play Finished Reverse Finished There are events for all the clip properties as well: ‎The Clip subcategory includes: Preview – These controls allow you to preview clips Set Position to Crop Offset - GTC files can be generated by cropping off all pixels that are always transparent, and embedding this crop information as metadata into the clip. Enabling this option allows this crop position to be automatically set to the Position property of the clip Synchronize - Enable to synchronize multiple clips using the same File Progressive Still - Merges two interlaced fields into one frame during pause.

‎Only available for interlaced clips.

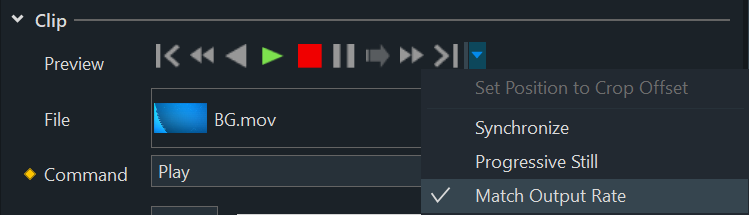

• Match Output Rate: If enabled, automatically adjusts the playback rate of the clip to match the output rate of the channel.
  For Playout: Match Output Rate only supports the playout of audio if the video output channel you are playing out to is set to the same frame rate as the frame rate of the clip.
  • Example 1 - Clip is rendered at 50fps, Output Channel is set to 59.94. Clip will playback at 59.94 instead of 50fps but audio will not play.
  • Example 2 - Clip is rendered at 50fps, Output Channel is set to 50fps. Clip will playback at 50fps and audio will play.

.

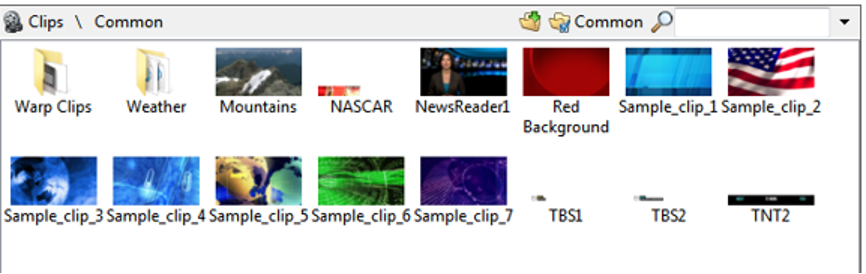

File: Shows the clip browser starting in the “Clips” folder of the current project

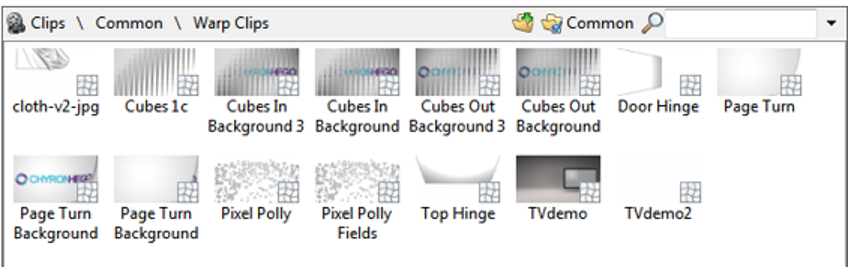

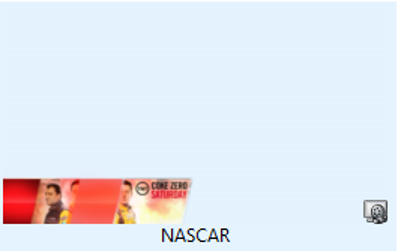

Clips with the “Warp” icon in the lower right hand corner are flagged as “Warp” clips that contain the UV Mapping information.

‎ Clips with Key icon:

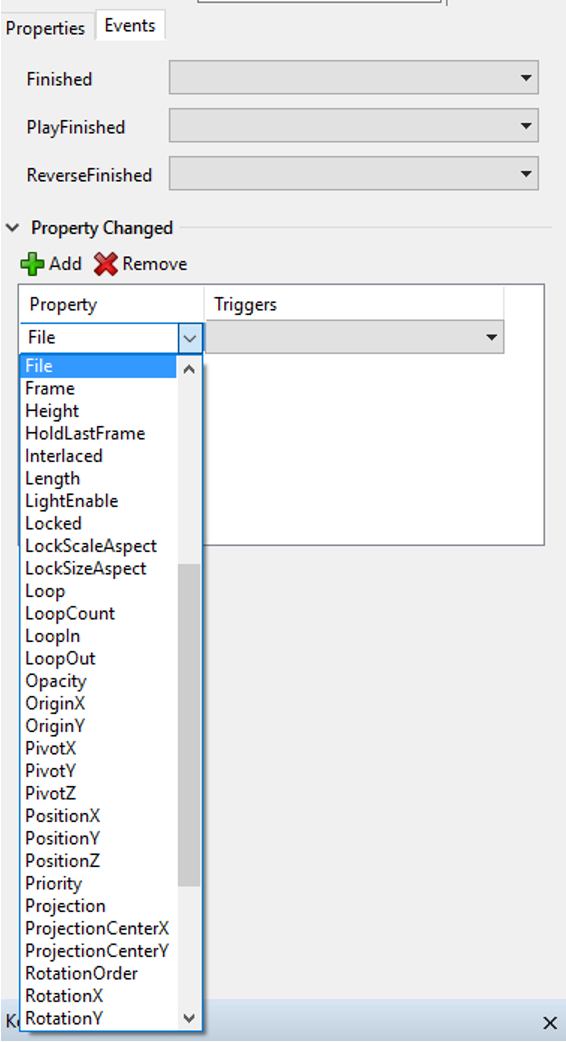

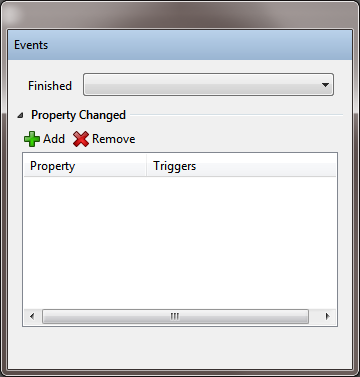

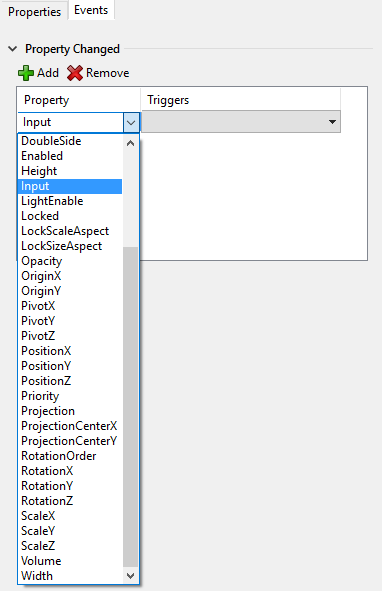

The Events subcategory includes:

• Finished Event: When the clip is finished perform something else available in the scene.

Cone Object

[ ]

Cube Object

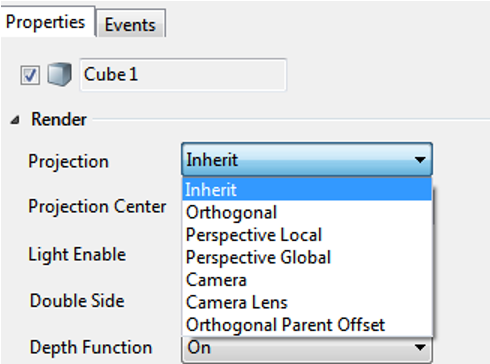

Render Properties Projection Inherit Orthogonal: Orthogonal projection. Perspective local: Central projection. The mid-point of projection is affected by an object. Perspective Global: Central projection. The mid-point of projection is immovable in screen coordinates. Camera: Projection in line with an external camera. Camera Lens: Special kind of projection in line with an external camera. ‎Only the lens is tracked, it means just projection. The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction. Ortho Parent Offset: Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.

Projection Center

• On: Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  • ‎Default value.
• Always: Fragment is rendered always independently of depth buffer.
• Never: Fragment isn't rendered ever.
• Equal: Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal: Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer.
  • ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write: Similar to option "ON" with difference of Stealth attribute. Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal: Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

Light Enabled

Double Sided

Depth Function

Priority

Transform

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Surface

Opacity

Cube Properties

File

Size‎

Bevel

• None
• Chamfer
• Round

Cylinder Object

Render Properties

Projection

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by an object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera.
  ‎Only the lens is tracked, it means just projection.
  ‎The view matrix is the identity matrix,
  ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.

Projection Center

• On - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
• Default value.
• Always - Fragment is rendered always independently of depth buffer.
• Never - Fragment isn't rendered ever.
• Equal - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write - Similar to option "ON" with difference of Stealth attribute. ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

Light Enabled

Double Sided

Depth Function

Priority

Transform Properties

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Surface Properties

• Opacity: Set the opacity on the surface object
• Cylinder Properties
• Diameter
• Depth
• Angle
• Hole
• Tessellation
• Alignment
  • Center
  • Clockwise
  • Counter Clockwise

UV Mapping

• Planner
• Polar

Bevel Properties

• Size
• Cuve
• Scale
• Tessellation
• Back
• Inside

Freehand

Transform Properties

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Data

• Point X-Y: 33
• Data: CSV data in format: "x1,y1\nx2,y2" ... . \n is a new line character.
  ‎You can use pipe "|" character instead of new line.

Freehand

• Color: Stroke color
• End Fade: Position on the stroke where to apply alpha gradient from 1 to 0.
• End Length: The length of end part of the stroke which is made thinner.
• Thickness: Half thickness of the stroke
• Filter Step: Filter step affects finer (lower then 1.0) or coarse (higher then 1.0) sampling of input data.

Texture

• Texture: Filename of image file used as a texture on stroke.
  • If set to empty string or undefined then no texture is used.
  • ‎The texture is always drawn in REPEAT mode.
  • ‎To shift the texture along the stroke use TextureMatrix effect and change Offset.X
• Stretch: When undefined the texture is repeated over the stroke.
  • ‎Otherwise the parameters define range in which the texture is stretched over the stroke.
  • The parts outside the range is not stretched.‎

Group Object

The default shortcut to add a group to your scene is Ctrl+G. Selecting objects in your scene tree using Ctrl and then pressing Ctrl+G will add a new group to your scene and automatically move the selected objects inside the new group. The default shortcut ungroup is Ctrl+U.

Render Properties

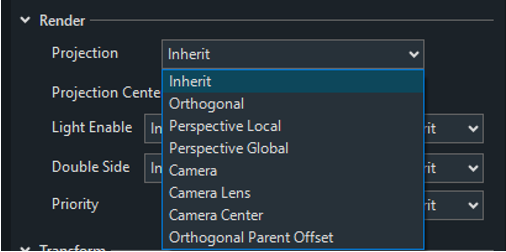

Projection

• Inherit - inherits from the parent group. If there is no parent group, then it defaults to

Perspective Global

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by an object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera.
  ‎Only the lens is tracked, it means just projection.
  ‎The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.‎

Projection Center

• On - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  • ‎Default value.
• Always - Fragment is rendered always independently of depth buffer.
• Never - Fragment isn't rendered ever.
• Equal - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write - Similar to option "ON" with difference of Stealth attribute. Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

Light Enabled

Double Sided

Depth Function

Priority

Transform Properties

The Transform subcategory allows for the manipulation of the Clip Objects Position, Scale, Rotation and Pivot along the XYZ axis

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Surface Properties

• Opacity: Set the opacity of the children in the group

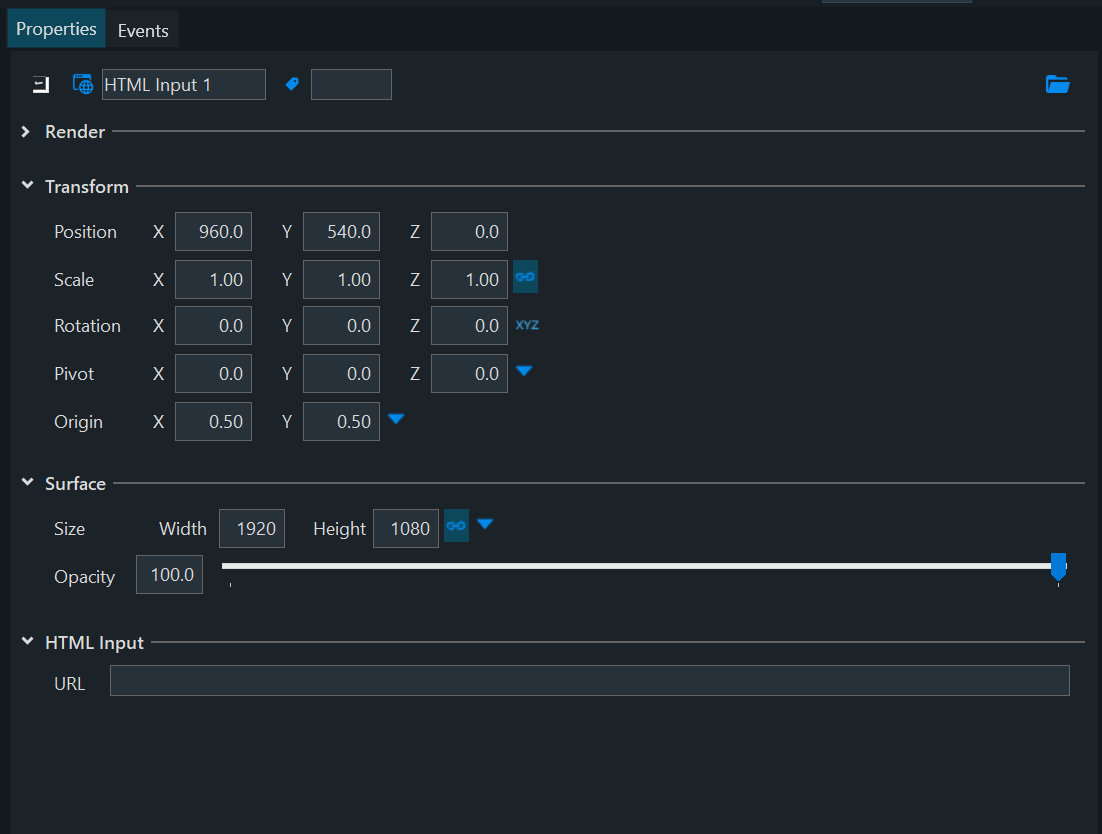

HTML Input Object

The HTML Input Graphic Object allows users to render a webpage within Prime Scenes and deliver it to any output channel. The webpage URL is defined through the HTML Input properties.

HTML Input’s Intended Use and Performance

The HTML Input feature is currently intended for static or minimally animated webpages, as part of a Prime Scene design.

Performance may vary depending on the system demands of the website being displayed. Prime’s official 3RU System supports displaying up to two HTML Inputs simultaneously, subject to the performance requirements of the rendered webpages.

At this time, we do not recommend displaying webpages with frequent or complex animations, particularly those requiring sustained 60 fps playback to render correctly or sites with video clips.

Currently Not Supported

• Prime Touch Effects / Touch screen interactivity
• Website-based video playback, including video codecs and players such as MP4 (H.264)
  • Additional codecs and third-party video players (not guaranteed)
• Hardware acceleration
• Audio Playback
• Mouse and Keyboard

HTML Input Licensing and Playout

Use of HTML Input requires the purchase of HTML Input channel licenses. Users may purchase up to four HTML Input channels per Prime license, sold in quantities of two, (up to 4 / 2 on output max).

While Prime Scene Designer allows designers to build scenes containing more than two HTML Inputs, only up to two licensed HTML Inputs may be played out simultaneously. HTML Input licenses must be purchased in pairs to maintain back-to-back playout workflows.

An HTML Input license is consumed whenever a webpage is loaded into either Preview or Program.

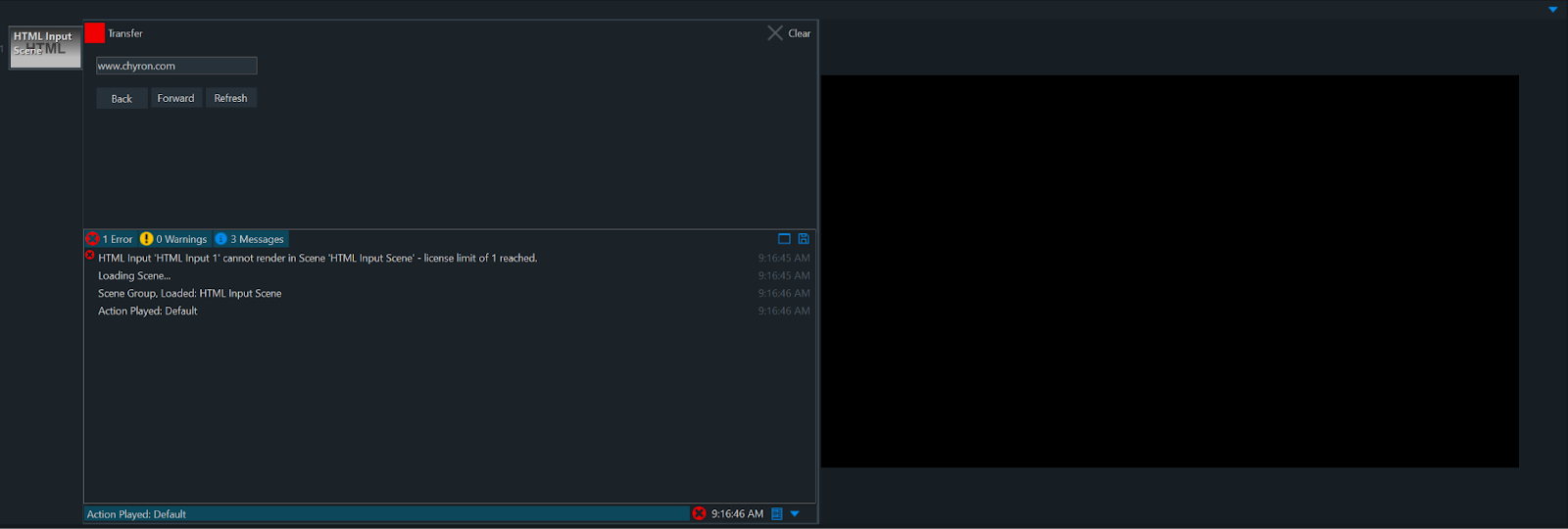

If a user attempts to use more HTML Inputs than are licensed in Preview or Program, an error message will be displayed, such as that shown above, and the HTML content will not render. To avoid this, users should limit the number of HTML Inputs, purchase additional licenses (up to 4 / 2 on output max), or follow best practices by effecting out the current HTML Input scene on Program before loading the next scene into Preview and taking it to air.

Furthermore, if all available HTML Input licenses are in use on Program and the user attempts to load additional HTML Inputs into Preview, the HTML content will not be displayed in Preview and the HTML Input licensing error will appear. This occurs because each HTML Input loaded into Preview or Program creates a new browser instance, consuming a license. This is the reason users must license HTML inputs in pairs. If Preview displays a blank HTML Input due to licensing, Program will behave the same way when the scene is played to air.

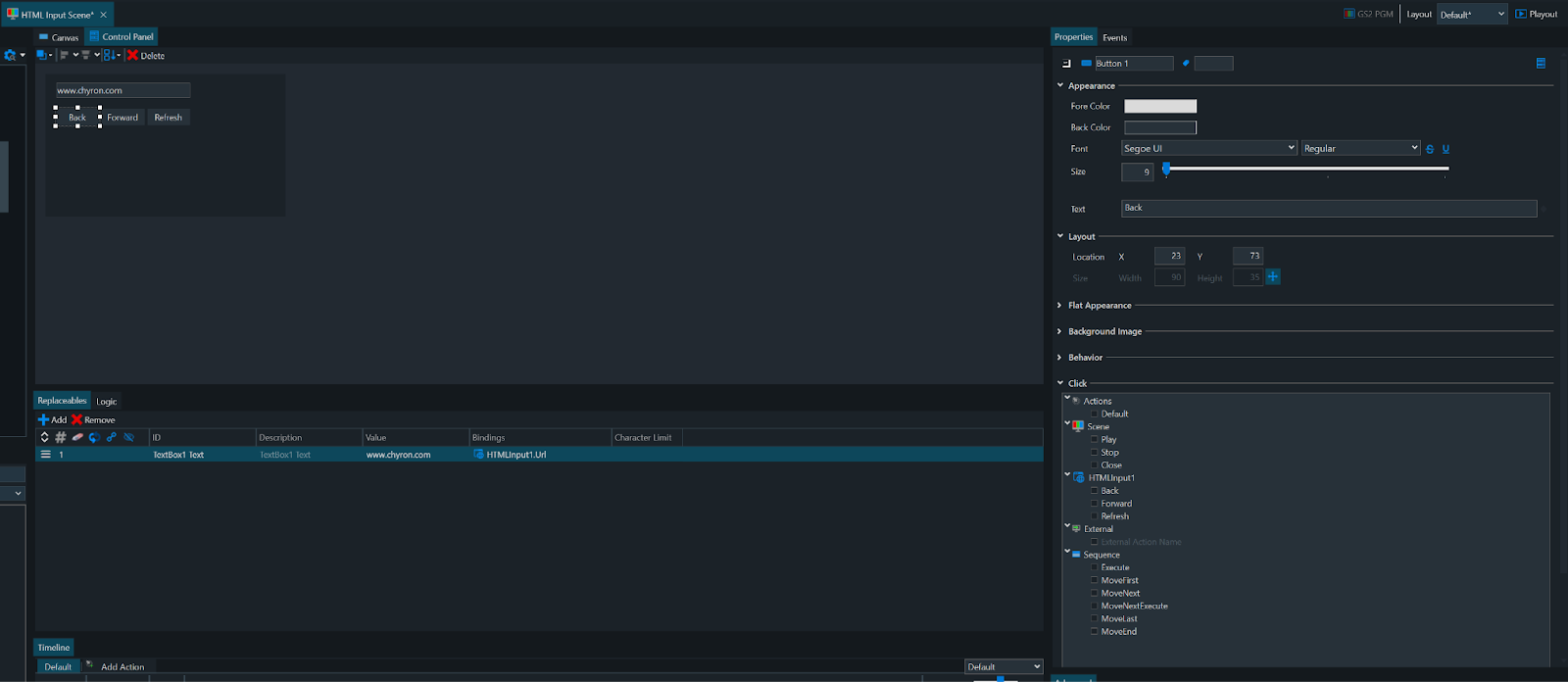

Prime HTML Input Control Panel Example and Setup Steps

HTML Input provides the following control properties:

• Back
• Forward
• Refresh

Setting Up HTML Properties

Adding the URL Replaceable Text Field

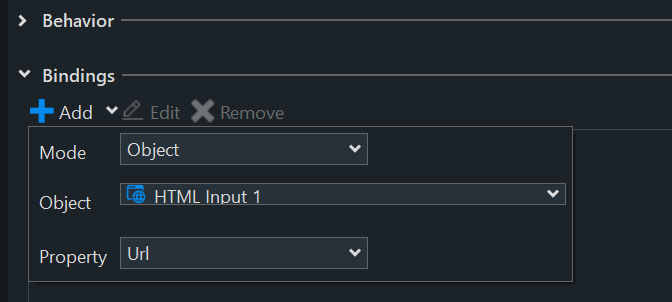

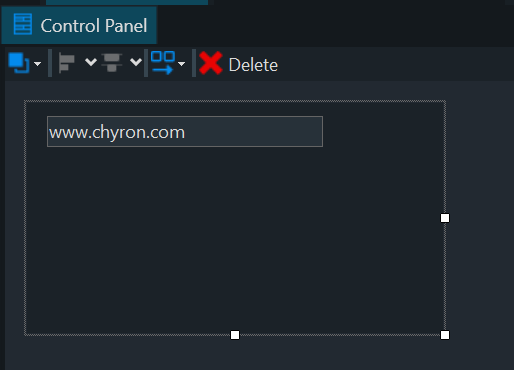

Designers can link the HTML Input URL as a replaceable and to a Control Panel Text Box by binding the replaceable to the URL and then dragging and dropping your Text Replaceable onto the Control Panel.

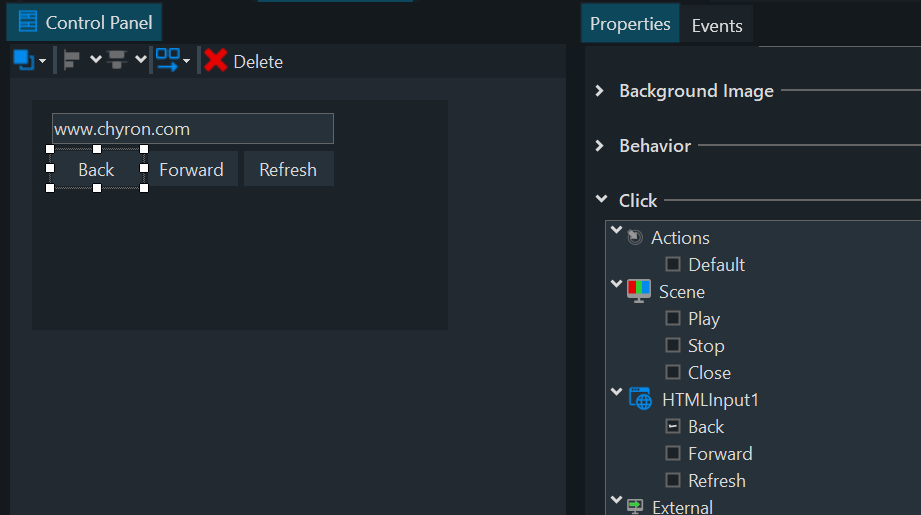

Adding the Back, Forward, and Refresh Buttons
To add navigation controls, create three buttons on a Control Panel. For each button, configure the Click Properties to bind it to the corresponding HTML Input property (Back, Forward, or Refresh).

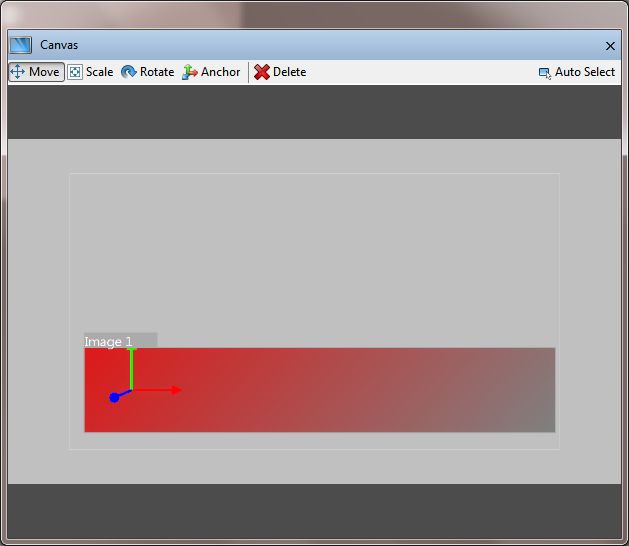

Image Object

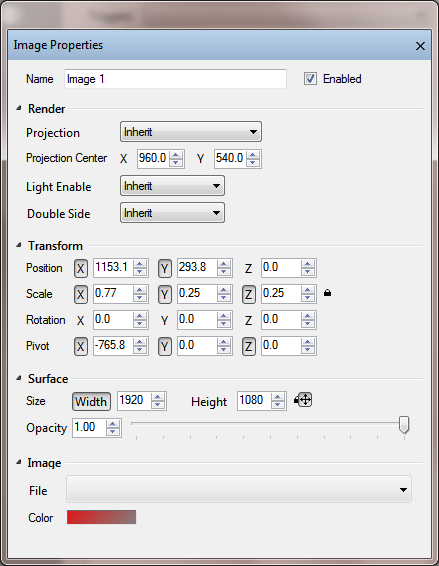

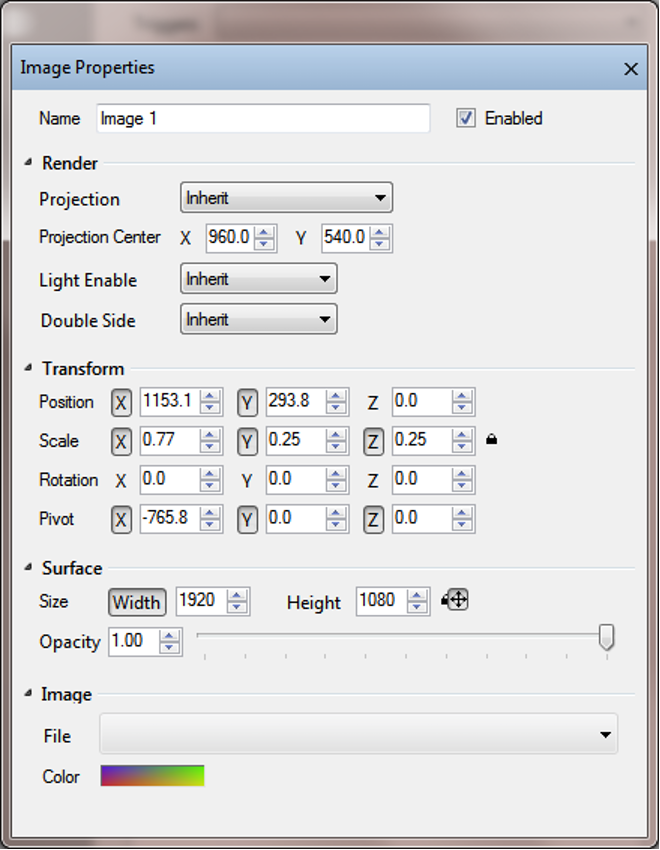

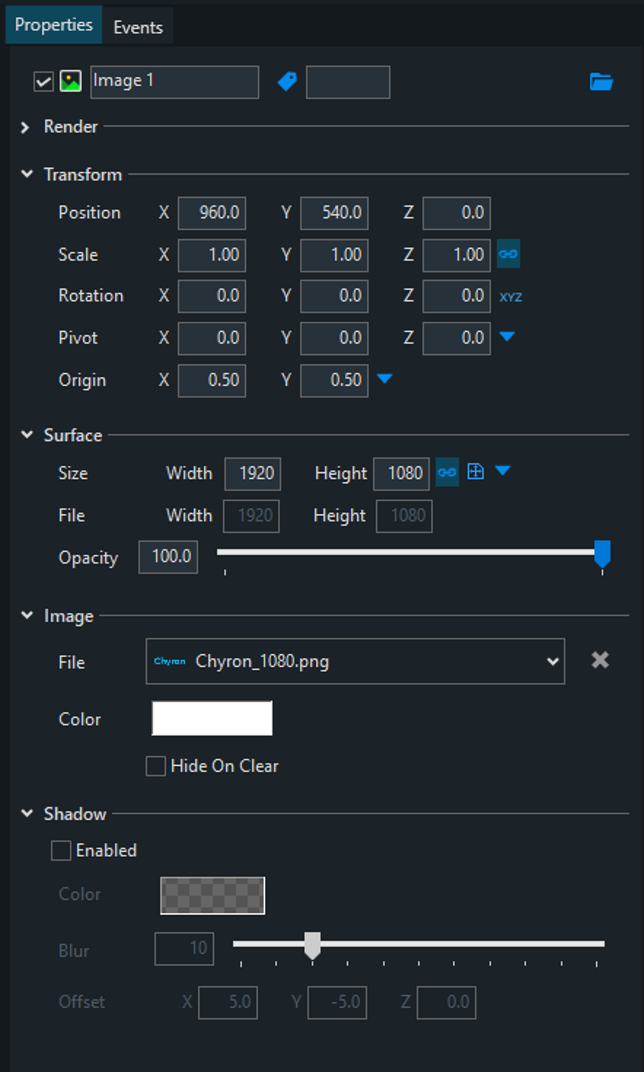

The following settings may be configured on the Image Properties window:

• Name – The name to be referenced throughout the scene

Render Properties

The Render subcategory includes:

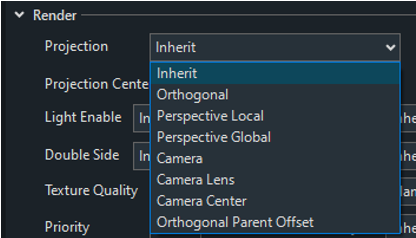

Projection

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by a object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera.
• ‎Only the lens are tracked, it means just projection.
• ‎The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.

• Projection Center - Center of projection. (Position on the screen where all lines meet in infinity.)
• Light Enabled - Enable use of lights. Applies only to object with generated normals.
• ‎This feature is ignored when using shaders.
• Double Sided - Double side visibility.
• Depth Function- Function for making decision whether it will write to scene according to z-buffer.

•
  • OFF - Disabled writing to depth buffers. ‎Suitable for flat object which doesn't collide with any other objects.
  • ON - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  • ‎Default value.
  • ALWAYS - Fragment is rendered always independently of depth buffer.
  • NEVER - Fragment isn't rendered ever.
  • EQUAL - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
  • EQUAL - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
  • NOWRITE - Similar to option "ON" with difference of Stealth attribute. ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
  • GEQUAL - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!
• Priority- Rendering priority within a layer. The higher number the later the object gets rendered.
  • Use with care! Rather use Position.Z instead. The priority change doesn't work well if objects use depth buffer.
• Texture Quality
• Texture Wrap

Transform Properties

The Transform subcategory allows for the manipulation of the Image Objects Position, Scale, Rotation and Pivot along the XYZ axis.

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

To keep the Scale Aspect fixed to its current dimensions, click the lock icon to Lock Aspect Scale.

Surface Properties

The Surface subcategory includes:

The red arrow button will allow you to set the Size Mode to determine what happens when the image is replaced. This option gives you many choices.

• Fixed Size: Image will use the Width and Height defined in the properties regardless of the file size
• Size To File: When the File property changes, Width and Height will be set to the File dimensions
• Fit To Width: The Width will be set to the specified Fit Bounds Width, and the Height will be calculated to maintain the aspect of the File Size
• Fit To Height: The Height will be set to the specified Fit Bounds Height, and the Width will be calculated to maintain the aspect of the File Size
• Fit To Bounds: The Size is set to fit within the Fit Bounds, while maintaining file aspect
• Fill To Bounds: The Size is set to fill within the Fit Bounds, while maintaining file aspect

Image Properties

The Image subcategory includes

File

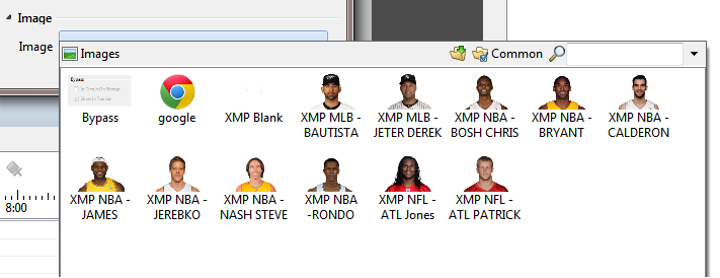

Image Browser

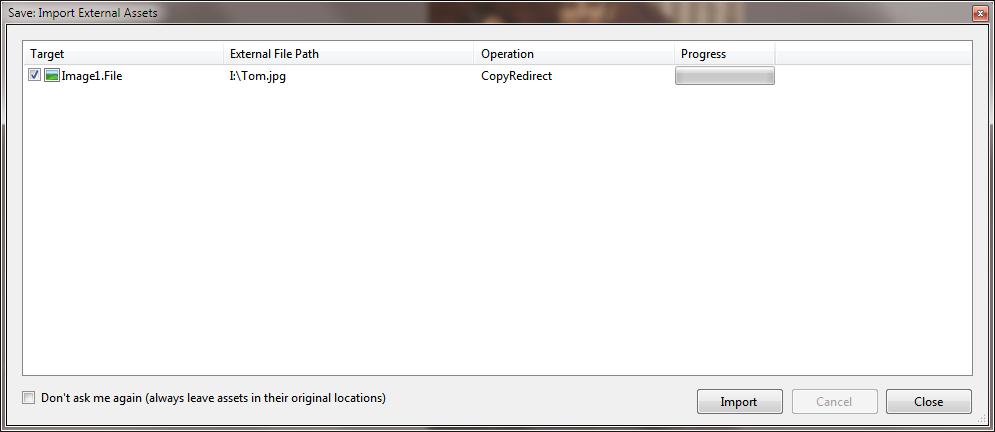

Selecting images from folders outside the project will prompt you to import or not import the selected image to the project.

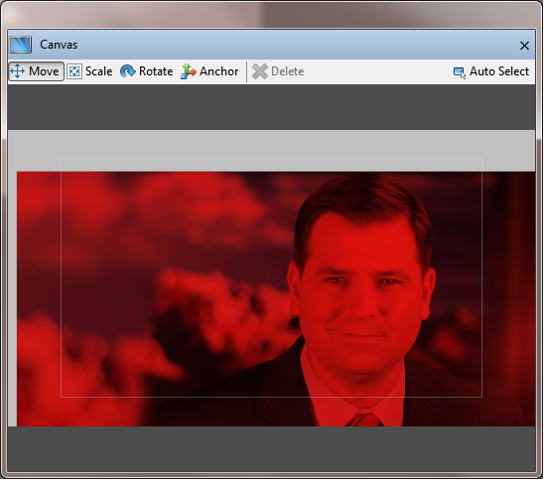

Color

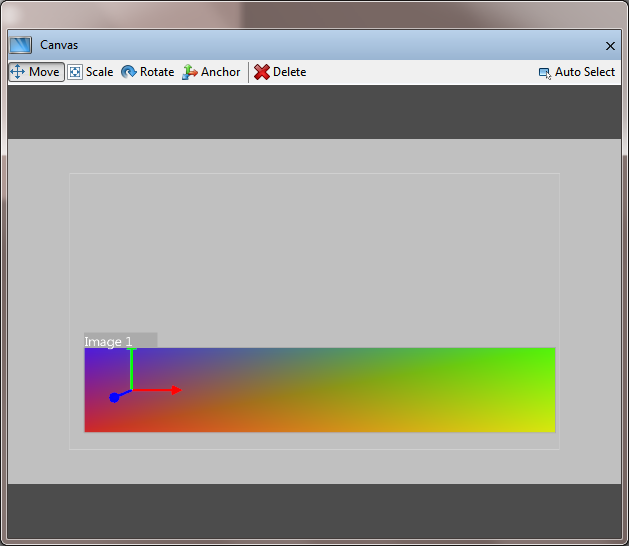

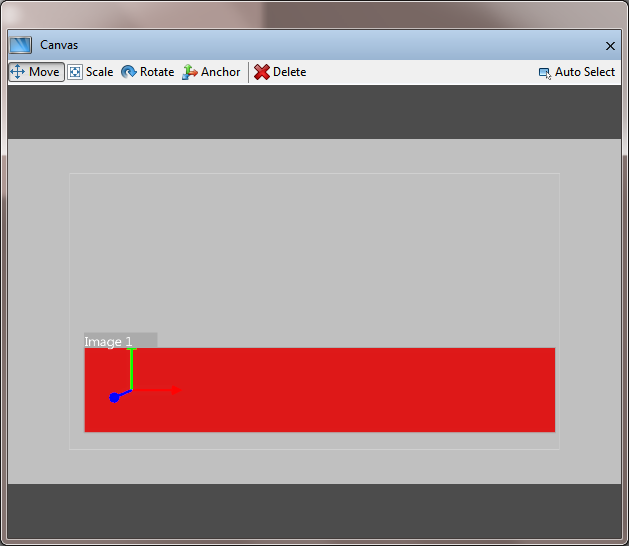

Or use as a solid color, ramp or quad:

• Hide on Clear: When the image is cleared make the image object Transparent.
• Shadow
• Hide on Clear: When enabled this option will clear the image placeholder. When not enabled it will use the default color to fill the image placeholder.

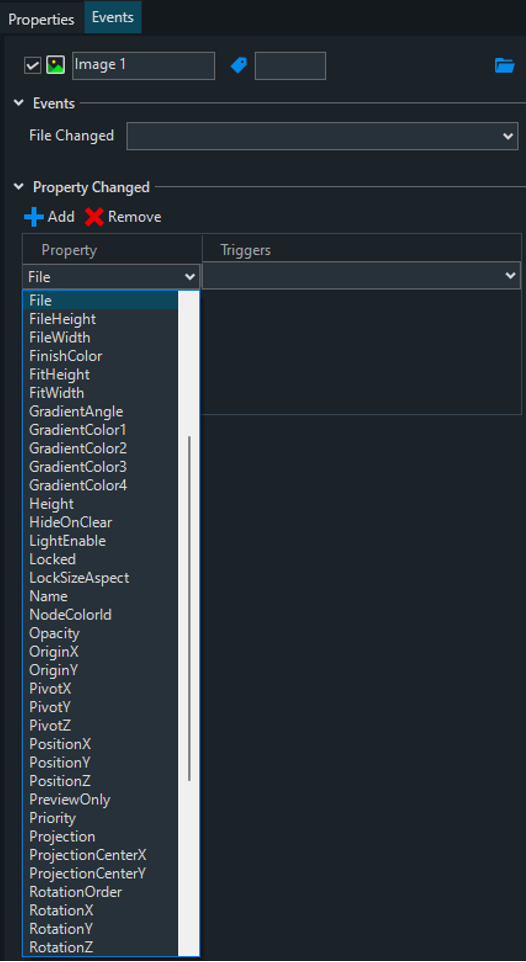

Image Events

Model

The supported file types are .iv, .rtg, .3ds, .obj and FBX.

Polygon Object

Render Properties

Projection

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by an object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera. ‎Only the lens is tracked, it means just projection. ‎The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.

Projection Center

• On - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  • Default value.
• Always - Fragment is rendered always independently of depth buffer.
• Never - Fragment isn't rendered ever.
• Equal - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write - Similar to option "ON" with difference of Stealth attribute.
• ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

Light Enabled

Double Sided

Depth Function

Priority

‎Transform Properties

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

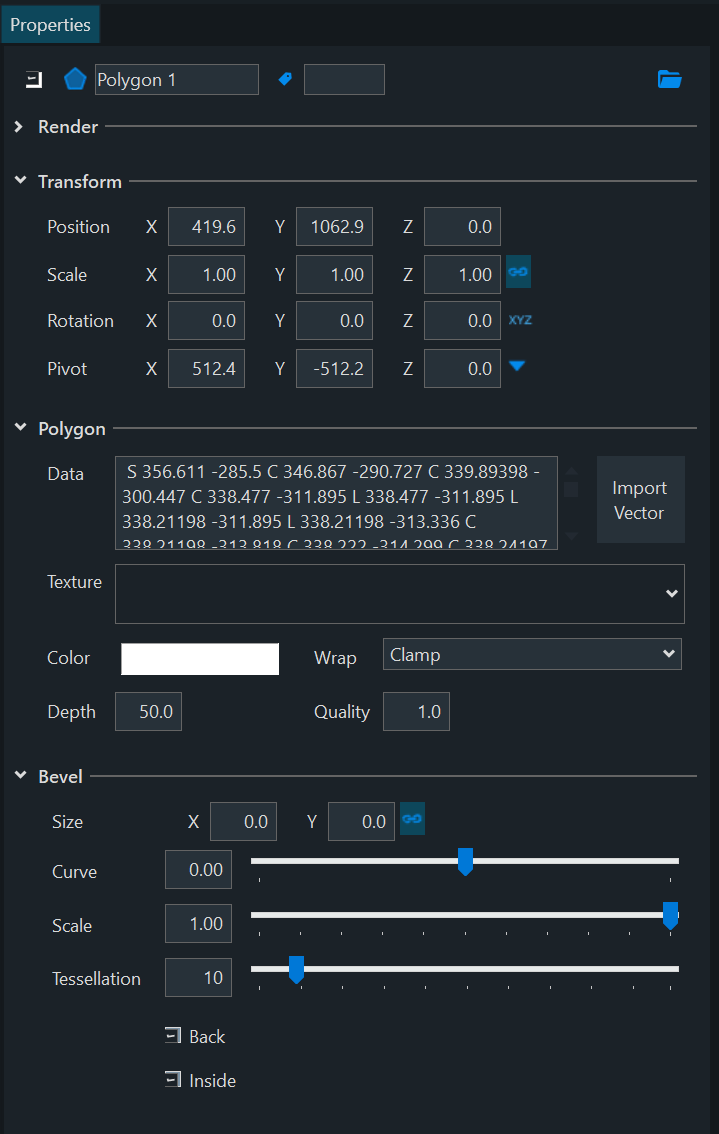

Polygon Properties

‎

Data

The data section is a string representation of the data needed to display a polygon in the designer or scene.

• Data for a polygon can be directly imported from an existing AI, PDF, or SVG vector file by using the Import Vector button
  • Once the button is pressed and open file dialog will be presented where the user can select their desired file.

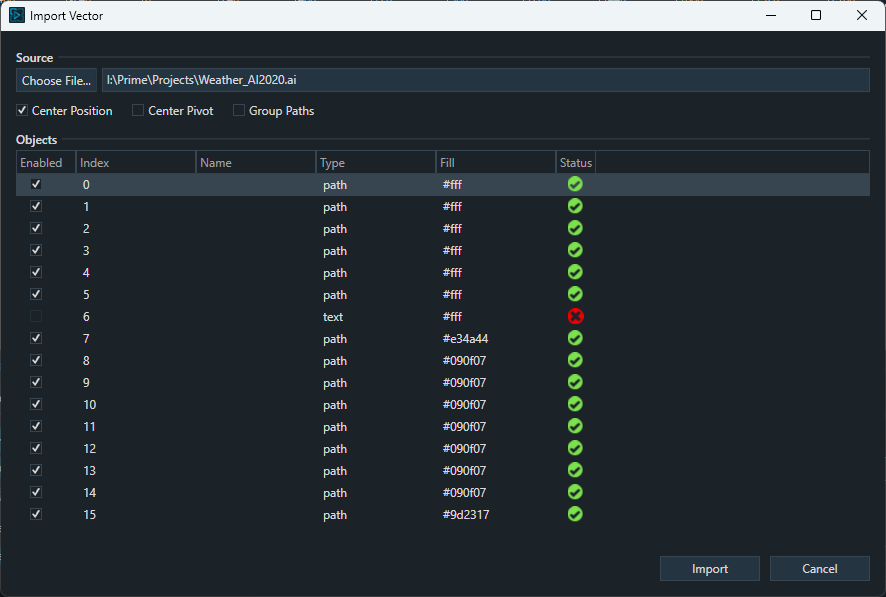

  • Once a file is selected the Import Vector dialog is shown.

*Please Note - Importing vector files through the Polygon Object directly will import the entire vector image file as a single layer. Individual vector layer import requires users to import the vector file by going to File > Import Vector. Please see the Importing Vector Files section for details about that import method.

The user can then select the polygons in the file they would like to import by selecting the check box next to the object.

•
  • The Center Paths option will center the polygons in the scene.
  • The end result will be one polygon object in the scene create from all the data in the vector file.



Texture: Selects the texture for the polygon

Color: The color of the polygon

Wrap: Defines how the texture is wrapped on the polygon

Clamp – Clamps the texture to the polygon geometry

Repeat – Repeats the texture multiple times to fill polygon

Depth: Depth of the polygon along the Z-axis

Quality: Represents the level of detail on the edge of the polygon

Bevel

The type of bevel to apply.

• None
• Chamfer

Size

The size of the bevel

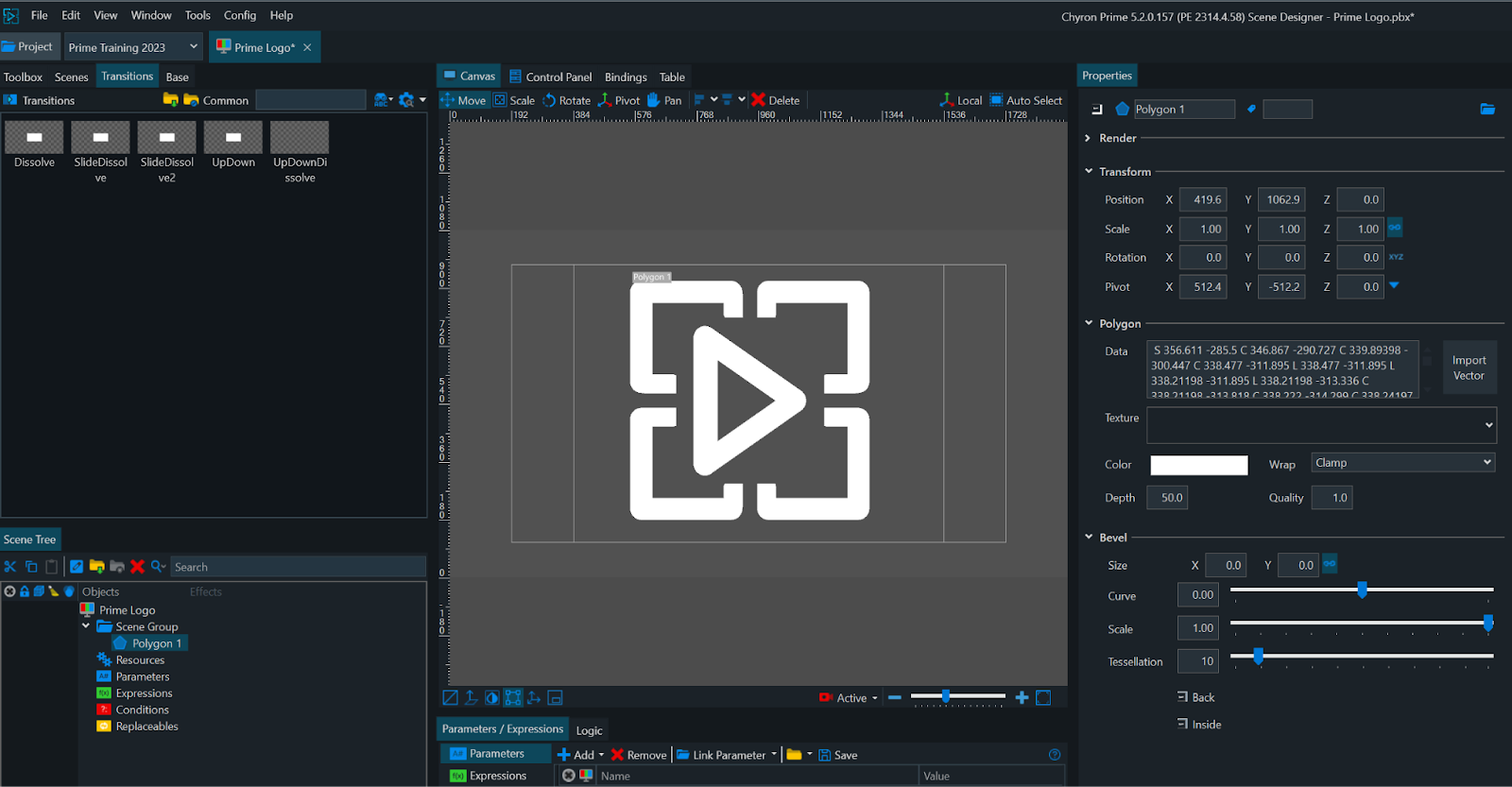

Polygon Object Import Vector Example:

Pod Object

Render Properties

Projection

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by an object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera. ‎Only the lens is tracked, it means just projection. ‎The view matrix is the identity matrix, it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.

Projection Center

• On - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  ‎Default value.
• Always - Fragment is rendered always independently of depth buffer.
• Never - Fragment isn't rendered ever.
• Equal - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write - Similar to option "ON" with difference of Stealth attribute.
  ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

Light Enabled

Double Sided

Depth Function

Priority

Transform Properties

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Surface Properties

• Size: X,Y and Z size
• Opacity: Set the opacity on the surface object

Pod Properties

• Color
• Top Left
• Top Right
• Bottom Left
• Bottom Right
• Corner Shape
• Skew
• Outline
• Tessellation

Bevel Properties

• Size
• Cuve
• Scale
• Tessellation
• Back
• Inside

Rectangle Object

Render Properties

Projection Center

• On - Fragment is rendered if object lies close to a observer (it's Z-coordinate is smaller than Z-coordinate in depth buffer). This option ensures the correct visibility of 3D object surface and its mutual location with other objects.
  • ‎Default value.
• Always - Fragment is rendered always independently of depth buffer.
• Never - Fragment isn't rendered ever.
• Equal - Fragment is rendered if Z-coordinate at a given point is equal to Z-coordinate from depth buffer. Appropriate for n-pass drawing of the same object.
• Less than or Equal - Fragment is rendered if Z-coordinate is less or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects.
• No Write - Similar to option "ON" with difference of Stealth attribute.
• ‎Object is rendered under the rule visibility, but it isn't placed in depth buffer in itself.
• Greater than or Equal - Fragment is rendered if Z-coordinate is greater or equal to Z-coordinate from depth buffer. ‎The later rendered objects in case of equality in Z-coordinate overlay previous rendered objects. Use just for special purposes!

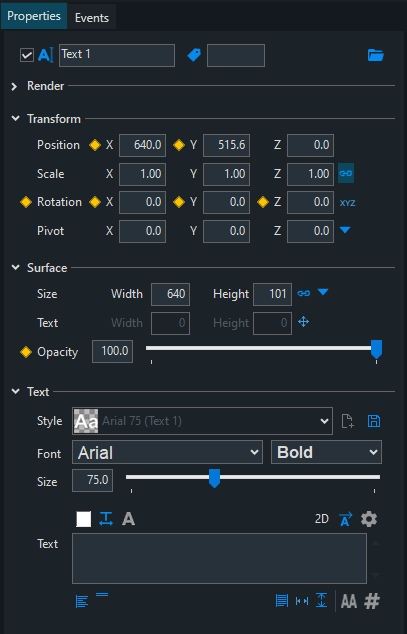

The following settings may be configured on the Text Properties window:

• Name – The name of the object that will show everywhere throughout the application.‎

Render Properties

Projection - It is method how to map 3D objects to 2D screen plane

• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by a object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera.
  ‎Only the lens are tracked, it means just projection.
  ‎The view matrix is the identity matrix,
  ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.
• Projection Center - Center of projection. (Position on the screen where all lines meet in infinity.)
• Light Enabled - Enable use of lights. Applies only to object with generated normals.
  ‎This feature is ignored when using shaders.
• Double Sided - Double side visibility.

Transform properties

The Transform subcategory allows for the manipulation of the Text Objects Position, Scale, Rotation and Pivot along the XYZ axis.

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

To keep the Scale Aspect fixed to its current dimensions, click the lock icon to Lock Aspect Scale.

Surface properties

The Surface subcategory includes settings for:

• Size – Sets the height and width of the bounding box. The dropdown gives the following choices:
• Reset: Resets the bounding box
• Full screen: Makes the bounding box full screen

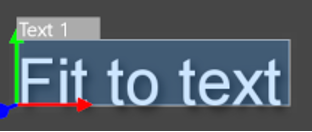

• Fit To Text: Wraps the bounding box around the bounds of the text

Example:

• Text- Read only property that shows the actual text bounds
• Opacity – Sets the opacity level from 0 to 100%

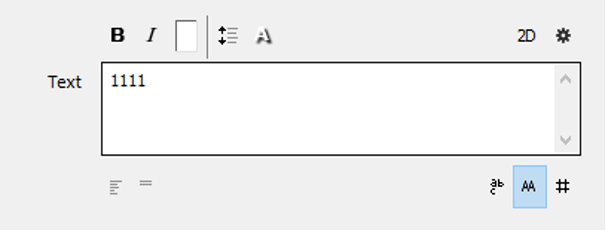

Text Properties

The Text subcategory allows for the selection of the Font, Font Size, Opacity and a variety of other font attributes.

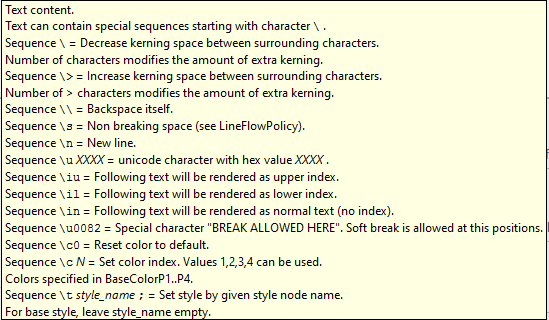

The following “In-Line” text attribute tags are available:

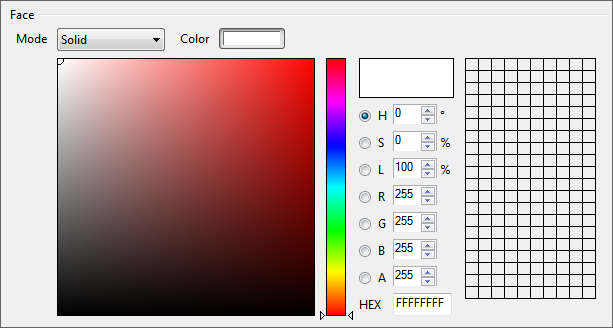

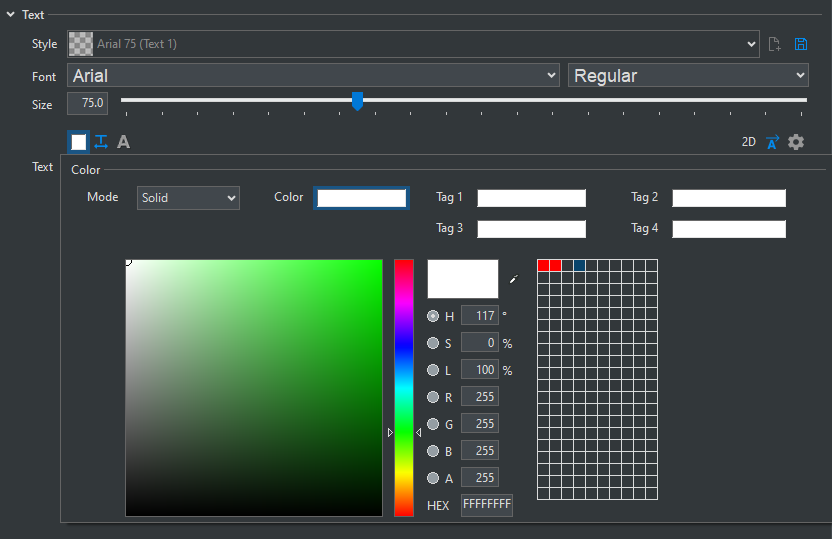

Color Picker

• Kerning - Adjusts the spacing between characters
• Leading - Adjusts the spacing between lines of text
• Space Width – Sets the width of the default space character
• Fixed Pitch – Each character will occupy the same amount of horizontal space. This is good for clocks so the text will not “breathe”
• Caps Ratio - Sets text to all uppers and adjusts the ratio between capital letters

Note that Kerning, Leading, Fixed Pitch and Caps Ratio are all keyframeable.

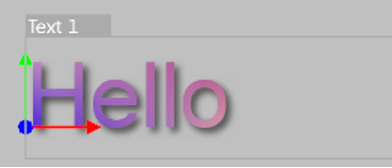

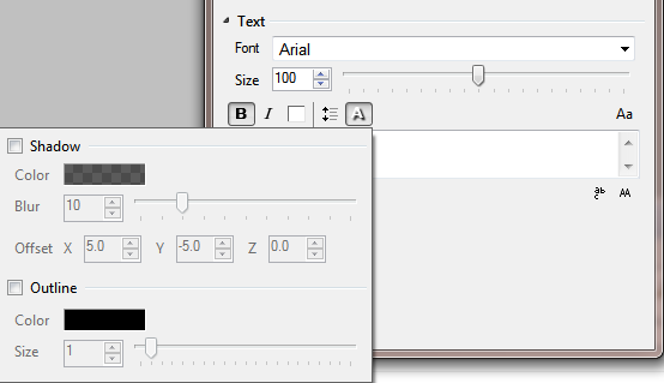

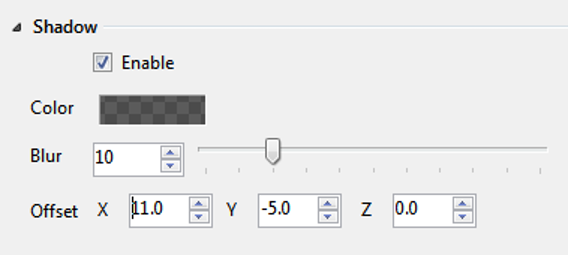

Text Shadow

adds a shadow to text

• When Shadow is Enabled, Depth Function will be set to On.
  The Depth function can be changed by selecting a different Depth Function option under Render properties.

Text Outline (Border)

Adds an outline to text

**Please Note - when Shadow and Outline are enabled at the same time on the same object, Designers should limit the Outline Size to no more than 10. Anything past 10 with Shadow turned on will greatly reduce system performance.

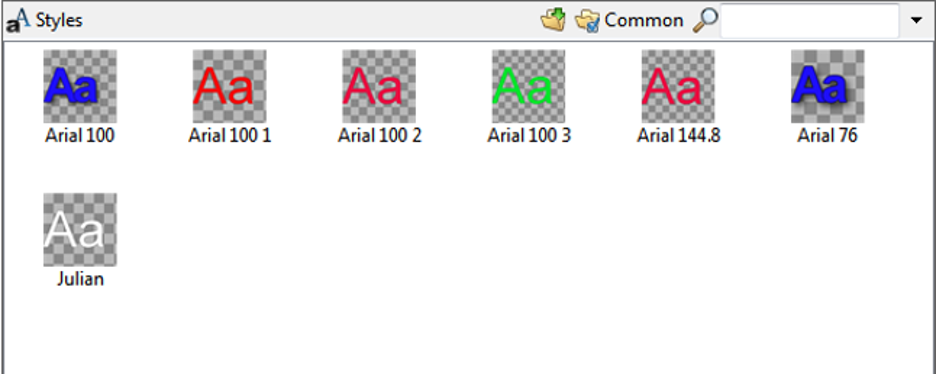

Text Style Browser

Text styles may be “referenced.” This means that changing the style of a text affects all other text objects in the scene or project.

If the Style is referenced, you will see an image of the style in the Style drop down box.

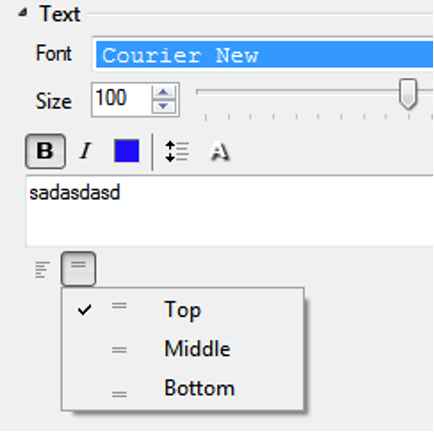

Alignments

First Character aligns column data by the first character it finds by the defined character in the text.

Last Character aligns column data by the last character it finds by the defined character in the text

.

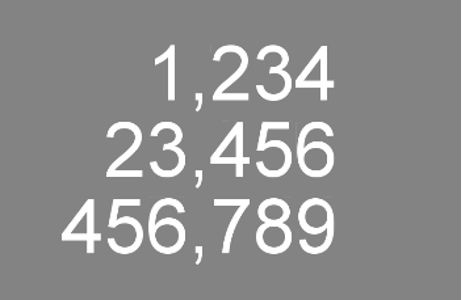

In this example we set the First character to the comma character:

Line Flow

All Caps: When All Caps is enabled, inputted text on output will be forced to capitalization. When a user types in the same text whether it is lowercase or uppercase, Prime will not see this as two different values when Behavior is set to On Change. (example: hello vs Hello vs HELLO will not trigger a Transition with the Behavior set to On Change)

German Language Only - When All Caps is enabled, the German letter Eszett (Sharp S) will automatically change from ß to ẞ if provided for by the font used.

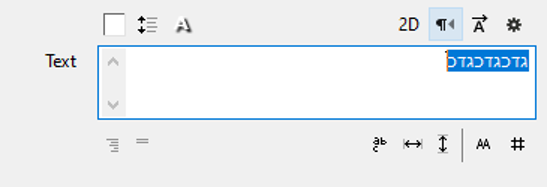

Direction: Based on the Windows language setting the “Direction” icon will appear. This allows orientation and support for Right to Left languages

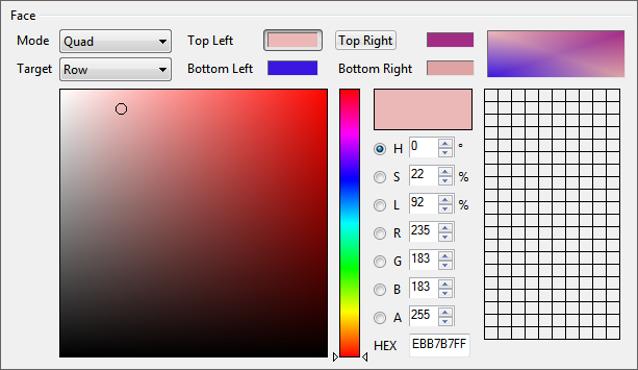

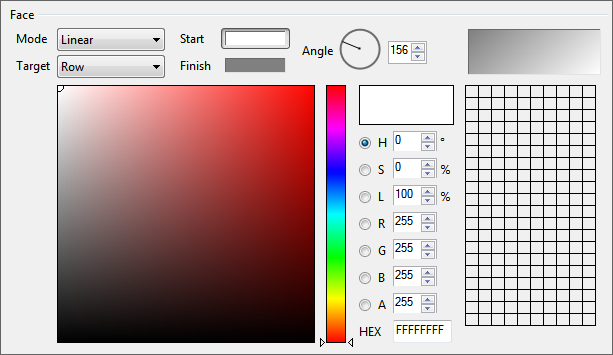

Gradients

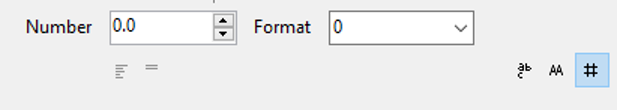

Number Format

When added to keyframes the numbers will animate from their current value to the next value.

Gradients

Linear

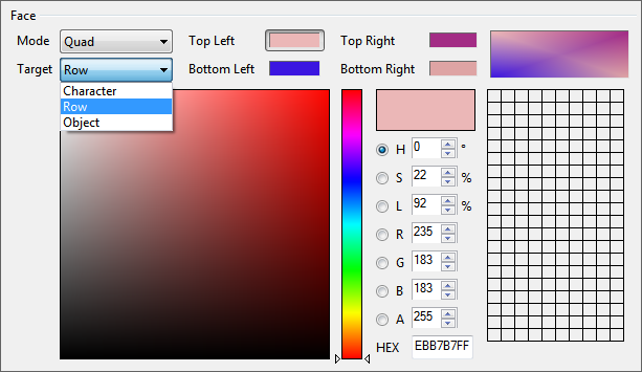

Quad

‎Target

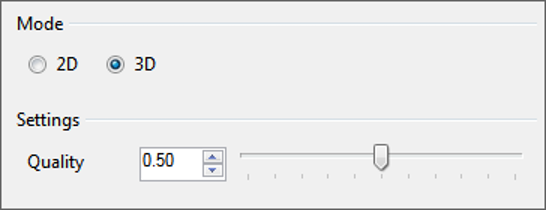

3D Text

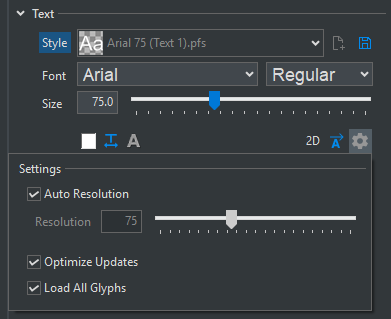

Advanced Text Settings‎

‎

• Auto Resolution - When checked, renders text at optimal resolution striking a balance between visual quality and engine output performance.
• Optimize Updates - When enabled along with UDP setting, optimizes text data for real time rendering. Text Size updates and Transitions will not be supported with this option enabled.
• Scene Example Use Case - Enable for any text objects that are being updated frequently such as 10ths of a second on a timer to ensure updates are prioritized.

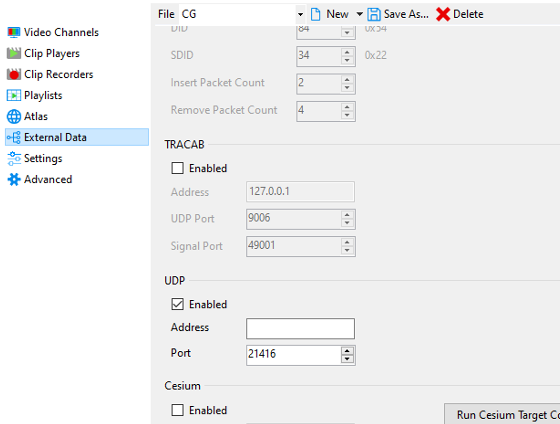

  • *Users must enable UDP in playout configuration in order to enable Optimize Updates for real time rendering. If UDP is not enabled and user selects optimize text for real time rendering they will see warning in UI to enable UDP.

• Load All Glyphs

  • Enable this option to allow Prime Engine to cache this specific font’s glyphs
  • Preloads all glyphs for this font when the scene is loaded. This will improve the performance of a crawl with a font that has a large number of glyphs, but it may increase the load time for the scene. Only applies to 2D Text
  • This option does not work with 3D text

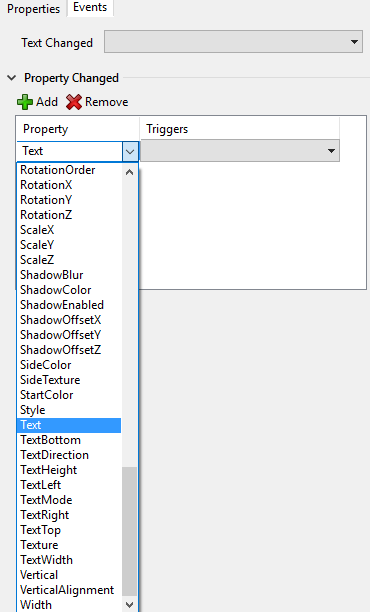

Text Events

You can trigger other objects methods whenever the text changes.

All of the Text objects properties have events when these properties change:

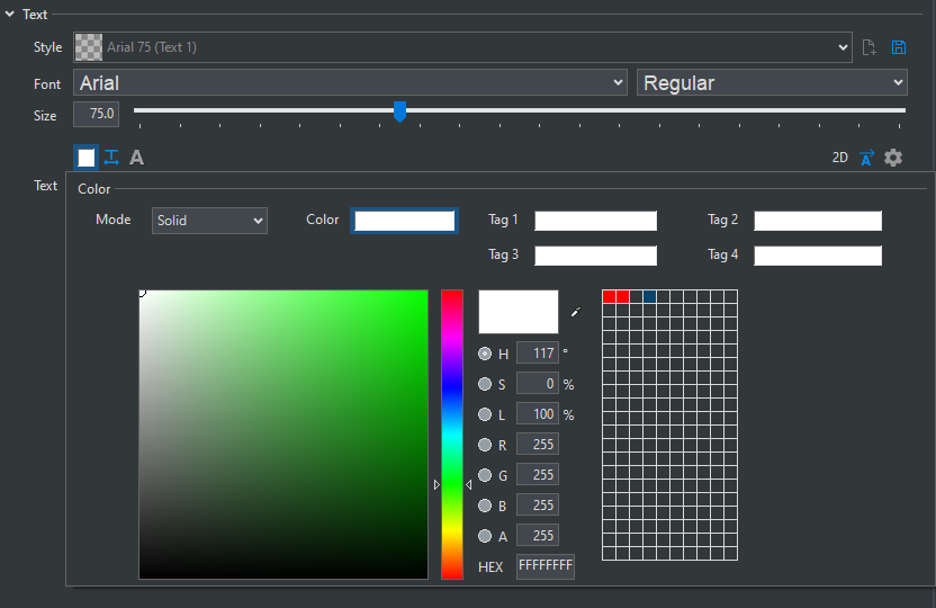

Text Tags

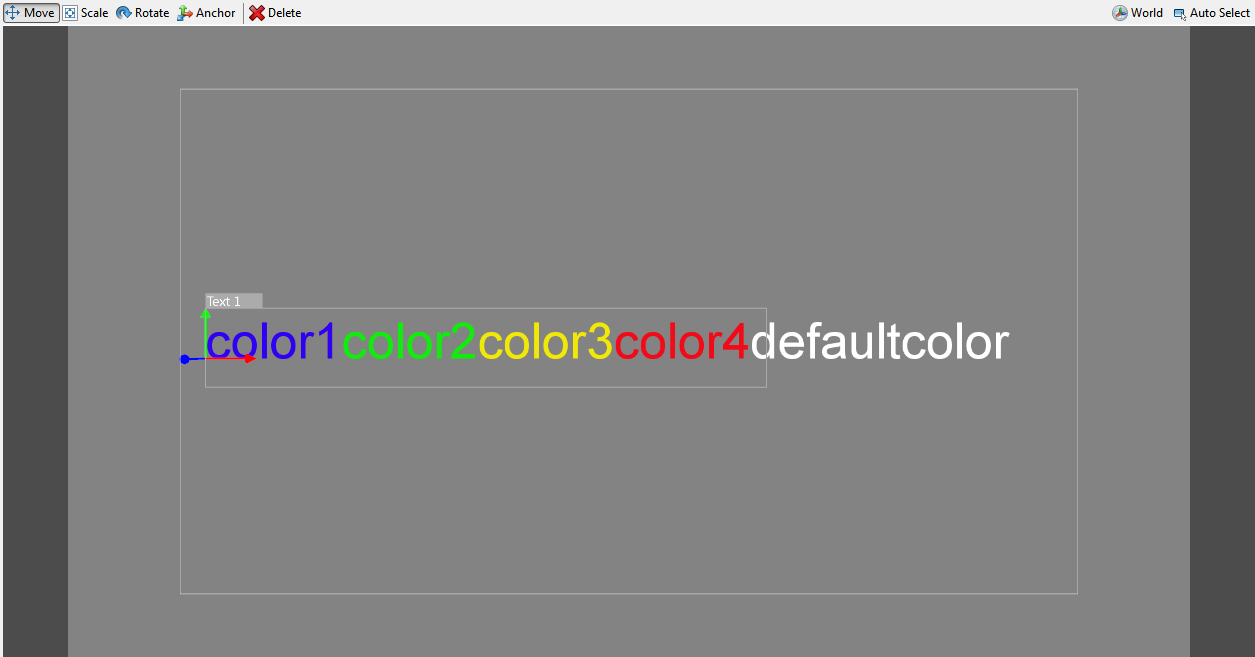

You can use Text Tags to change the color attributes of the text within a single text object.

Available Tags:

• Tag 0 (\c0) will reset the text color back to the text objects default color
• Tag 1 (\c1)
• Tag 2 (\c2)
• Tag 3 (\c3)
• Tag 4 (\c4)

Text Tags require “Solid” mode to be selected

Style Tags

Style tags are effects. See the section on “Style Tags” in the effects section.

Tube Object

Transform Properties

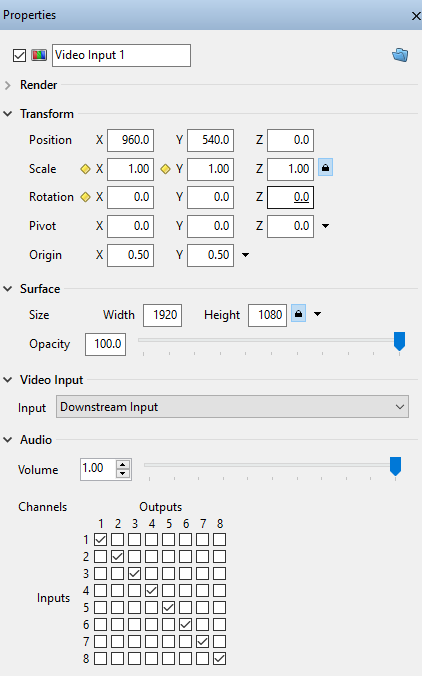

The Transform subcategory allows for the manipulation of the Video Input Objects Position, Scale, Rotation and Pivot along the XYZ axis.

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

Data Properties

• Point: Adds or removes a data point
• Data: CSV data in format: "x1,y1,z1\nx2,y2" ... . \n is a new line character.
• ‎You can use pipe "|" character instead of new line.
• Path Length: Limit length of the tube. Value is relative. 0 is no tube drawn, 1 is full tube drawn.
• Texture Map: Type of V texture coordinate mapping.
• Texture V mapping type:
• ABSOLUTE - V goes from 0 to path's length. ‎Unless the extrusion is very small, this length will probably be much larger than 1.0.
• RELATIVE - V goes from 0 to 1 over the whole path.
• SEGMENTED - Integer part is equal to segment's index (from 0) and
  ‎fractional part goes from 0.0 to 1.0 on every segment.

Contour Properties

• Aspect: Higher value makes it wider.
• Rotation: Contour rotation in degrees.
• ‎Useful for low tessellation settings. Applied before Aspect!
• Diameter: Contour diameter (tube thickness).
• Tessellation: Higher tessellation makes the contour smoother but consumes more resources to render.
• Smooth: Set to checked to make the contour faceted. ‎Set to unchecked to make it smooth.

Video Input Object

The following settings may be configured on the Video Input Properties window:

• Name – The user-friendly name to refer to the object throughout the application

Render Properties

The Render subcategory includes:

• Projection – Projection mode. It is method how to map 3D objects to 2D screen plane.
• Orthogonal - Orthogonal projection.
• Perspective local - Central projection. The mid-point of projection is affected by an object.
• Perspective Global - Central projection. The mid-point of projection is immovable in screen coordinates.
• Camera - Projection in line with an external camera.
• Camera Lens - Special kind of projection in line with an external camera. ‎Only the lens are tracked, it means just projection. ‎The view matrix is the identity matrix, ‎it doesn't depend on a location or camera direction.
• Ortho Parent Offset - Orthogonal projection. The center of coordinate system is offset by current node position in the view of parent projection and transformations.
• Projection Center – Center of projection. (Position on the screen where all lines meet in infinity.)
• Light Enabled – Enable use of lights. Applies only to object with generated normals. ‎This feature is ignored when using shaders.
• Double Sided – Double side visibility.

Transform Properties

The Transform subcategory allows for the manipulation of the Video Input Objects Position, Scale, Rotation and Pivot along the XYZ axis.

• Position: Position the object in X, Y or Z
• Scale: Scale the object in X, Y or Z
• Rotation: Rotate the object in X, Y or Z
• Pivot: Move the Pivot Position of the object in X, Y or Z
• Origin: Move the Origin Position of the object in X, Y or Z

To keep the Scale Aspect fixed to its current dimensions, click the lock icon to Lock Aspect Scale.

Surface Properties

The Surface subcategory includes:

• Size Width
• Size Height
• Opacity

Video Input Properties

The Video Input subcategory allows the user to select the SDI Input.

Audio Properties

The Audio subcategory includes:

• Volume – Decibel levels
• Channels – The Audio Router is a matrix for routing inputs to outputs. The default is 1 to 1 etc.

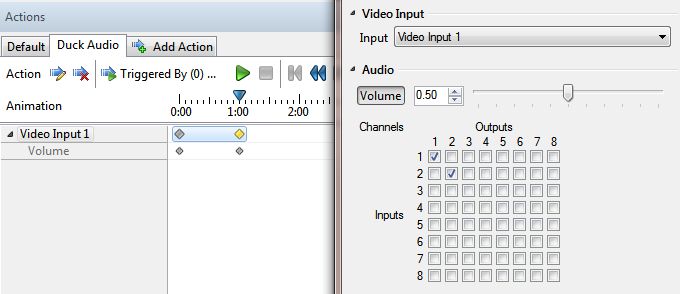

Duck Audio Channels 1 & 2 example action:

Video In Events
