Prime will automatically apply “Update In/Out” rules if the incoming message uses the same base scene as the outgoing message.
The Transition effect applied to the object will trigger automatically.
For a two line lower third,
If Message 200 (Not Scene, but Message) is on air and its base scene is “Lower third” and message 201 is cued and uses “Lower Third” as its base message then the transition that is assigned to each of the two lines will trigger when the incoming scene 201 is played.
IMPORTANT: The “Replaceable’s list will determine which scene objects transitions will be fired. Add each object to the Automation ID list that you wish to be applied to Update In/Out.
By default an incoming scene is prioritized over an outgoing scene. The Auto Priority sets the priority value for graphics automatically with respect to their position in the scene tree.
Adjust the scene priority
To manually adjust the scene priority:

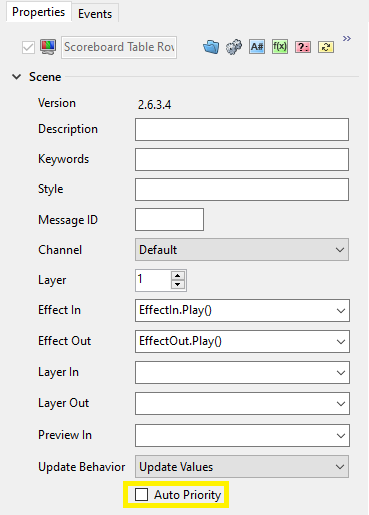

- Uncheck the Auto Priority in the Scene Properties

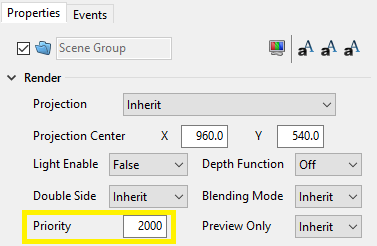

- Set the Scene Group Priority > Render > Priority value.
