03e Playback speed timeline – Chyron

The pause tool inserts pause blocks into the playback timeline of the clip.

Inserts pause block with a desired duration. Supported by Zoom Pan and Playback speed tools.

Insert pause point at given time. Playback stops here and waits for user request to continue playing. Supported by the Pause tool.

Inserts a slow motion block into the playback timeline of the clip. When the clip is played, the playback speed is changed in defined time range.

To define Slow motion

Pause/slow motion length

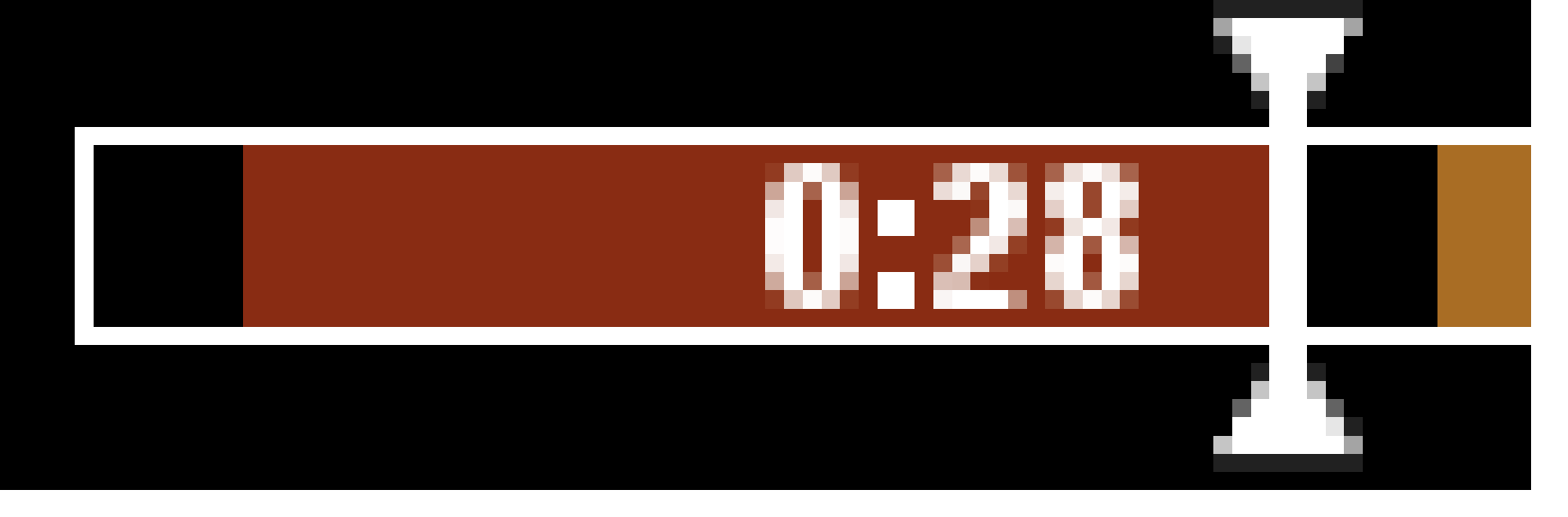

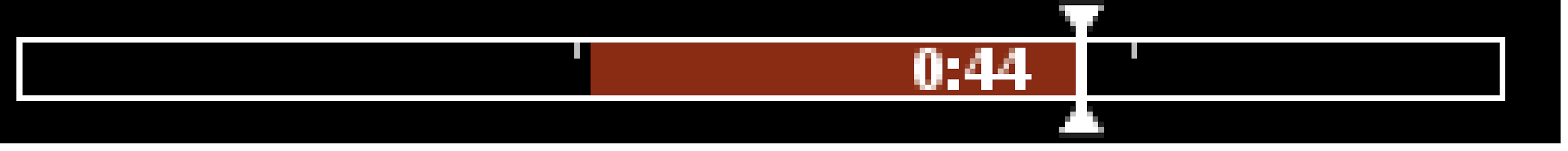

The length of the Pause/Slow motion blocks is rendered on the timeline.

The format is SS:FF, where:

SS means seconds
FF means fields or frames, depending on current video format (e.g. for HD_1080I _ 50 the FF values are in the range 0..49.

Initial duration of pause

Initial duration (in seconds) of a newly created pause can be set in the configuration file:

<Timeline>
<PauseDefaultDuration value="5"/>
</Timeline>

	Select a clip. Select the frame inside the video where you want your pause to start.
	Press the Edit Pause button. If no Pause is defined at the current time, a new Pause block is created.
	Use the Jog/Shuttle to define pause length. You can see the actual length of the block on the timeline. The pause block is rendered in red color on the timeline.
	Press Edit Pause button again.
	Press the Save button to save the timeline into the clip.

	Select a clip. Cue to the desired pause beginning.
	Press the Pause button. Pause point is created.
	The pause points are rendered above the timeline. Pause point is rendered in yellow while current time equals to time of that pause point.
	Press the Pause button while being on an existing pause point.
	Press the Save button to save the timeline into the clip.

	Select a clip. Cue to the desired Slow motion block beginning.
	Press the Edit Slow motion button. If no Slow motion block is defined at the current time, a new Slow motion block is created.
	Use Jog/Shuttle to define Slow motion length. You can see the actual length of the block on the timeline.
	Press the Edit Slow motion button again.
	Press the Save button to save the timeline into the clip.
